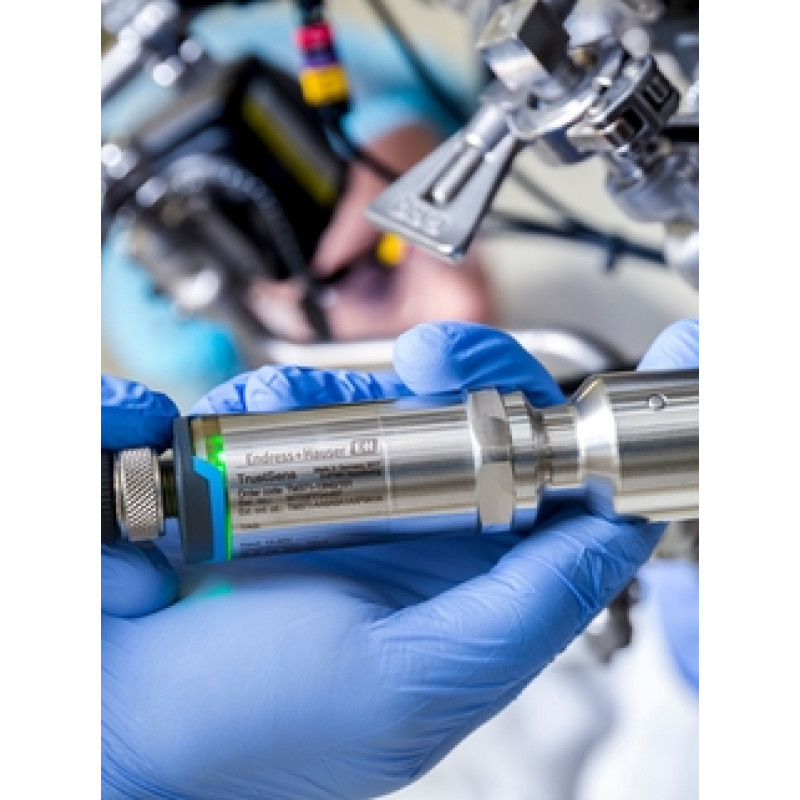

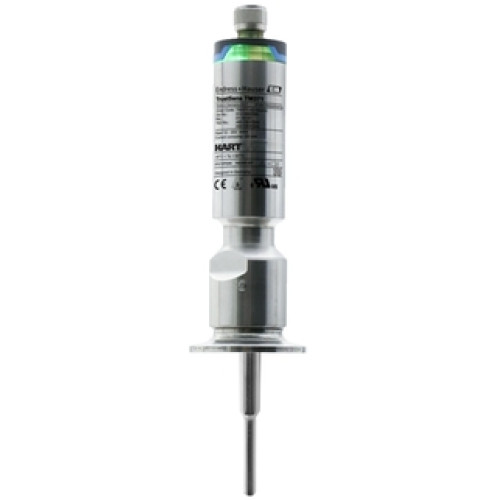

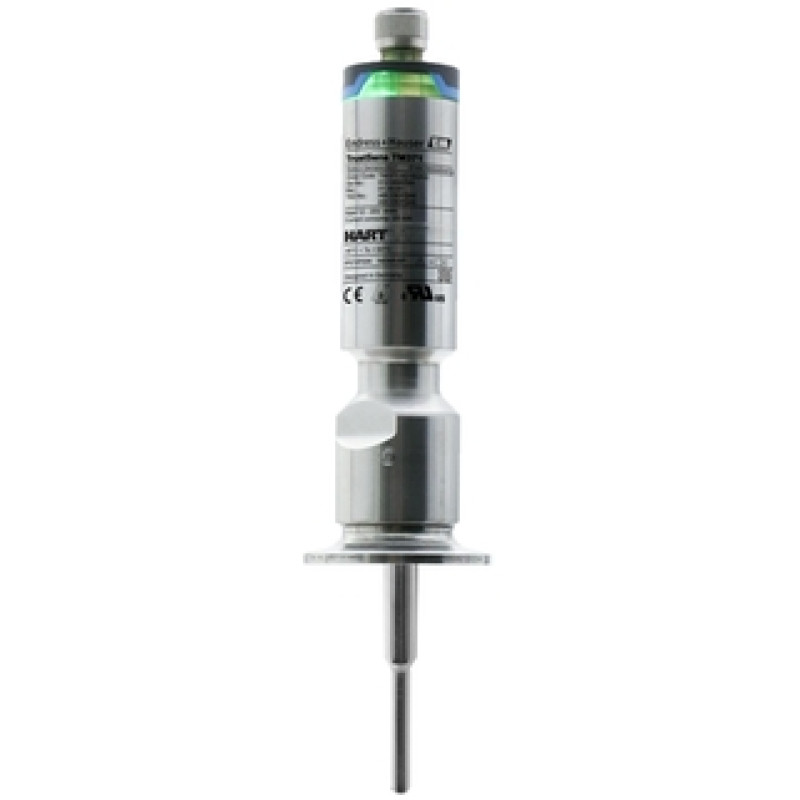

TM372 iTHERM TrustSens Self-calibrating temperature sensor

100% compatibility, 0% effort Hygienic compact RTD thermometer, USA style

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  self-calibrating
  imperial style
  compact temperature probe
  hygienic design
  hygienic process connection

• Thermowell / protection tube

  without
  incl. thermowell
  incl. T-/ellbow thermowell

• Insert / probe

  pipe version, isolated wires, not flexible

• Outer diameter protection tube / Insert

  1/4'' (6,35 mm)
  3/8'' (9,53 mm)
  1/2" (12,7 mm)

• Max. immersion length on request

  up to 28'' (711 mm)
  others on request

• Material protection tube/ thermowell

  316L

• Process connection

  Weld-in adapter
  Tri-clamp
  Clamp-connections according to ISO2852
  G3/4" Liquiphant
  G1" Liquiphant
  Varivent
  T- and corner pieces

• Tip shape

  straight
  reduced

• Surface roughness Ra

  30 μin (0,76 μm)
  15 μin (0,38 μm )
  15 μin (0,38 μm ) electropolished

• Operating temperature range

  PT 100:
  -40 °C …160 °C (-40 °F …320 °F),
  optional up to 190 °C (374 °F)

• Max. process pressure (static)

  at 20 °C: 40 bar (580 psi)

• Response time

  t50 = 2,5 s
  t90 =9,5s

• Integration head transmitter

  no (4…20mA Signal)

• Ex - approvals

  CSA C/US IS, I/1+2/A-F

The award-winning smart temperature probe with integrated HART® transmitter and Heartbeat Technology features the world's first fully automatic on-site self-calibrating RTD sensor unit. It effectively eliminates the risk of undetected nonconformities, reduces production downtime, and improves product safety and process efficiency in applications in the food and beverage and life sciences industries. The device is fully compliant with FDA 21 CFR Part 11 regulations and GMP guidelines.

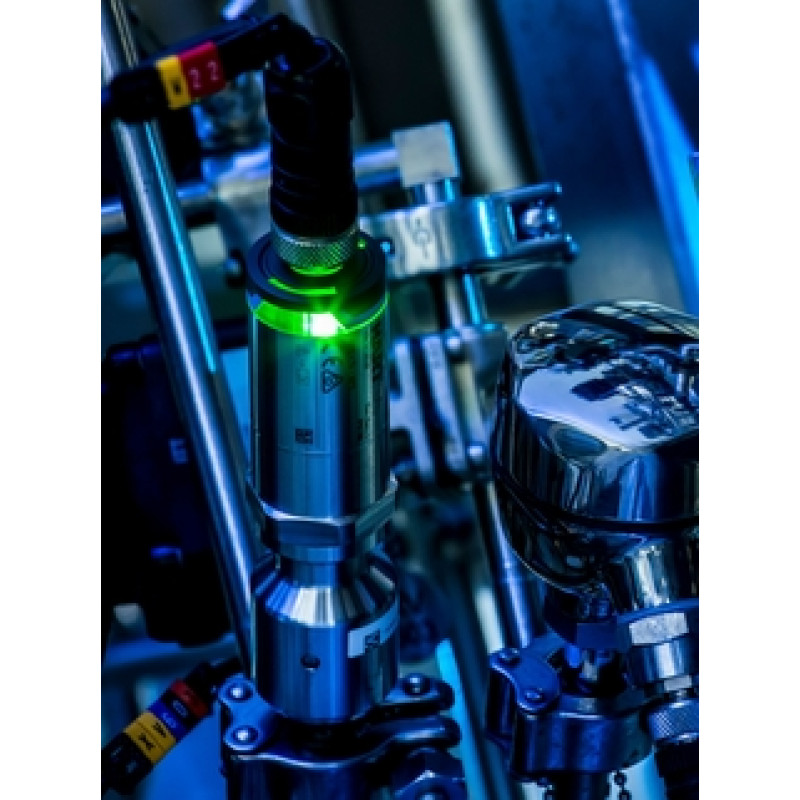

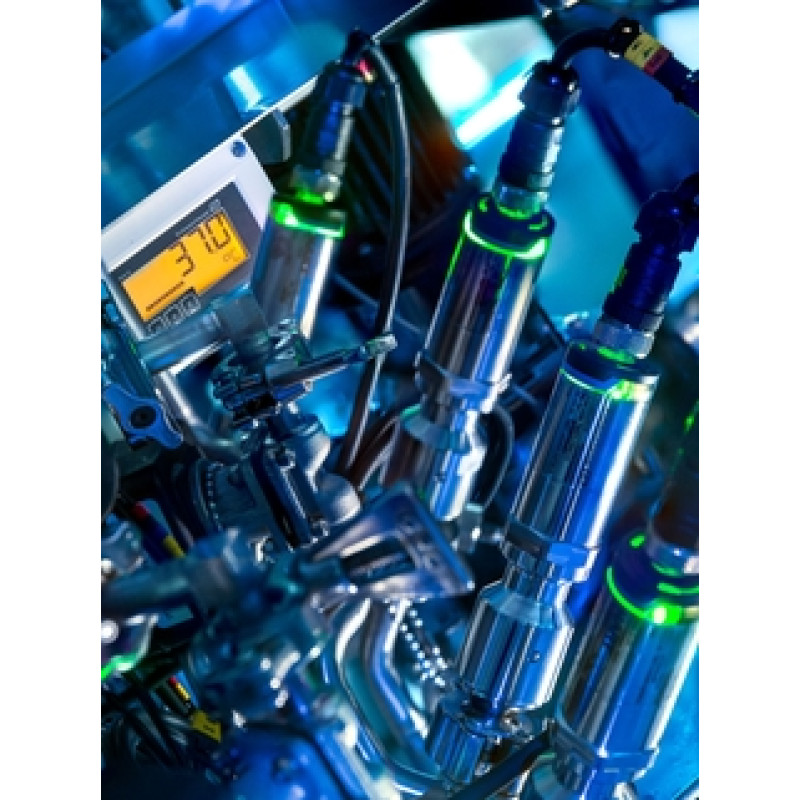

Specifically designed for use in hygienic and aseptic applications in the food & beverage and health sciences industries

Measuring range: -40 to 190 °C (-40 to 374 °F)

Pressure range up to 50 bar (725 psi)

Protection class: IP65/67 or IP69

Communication: Analog output 4 to 20 mA, HART® protocol
