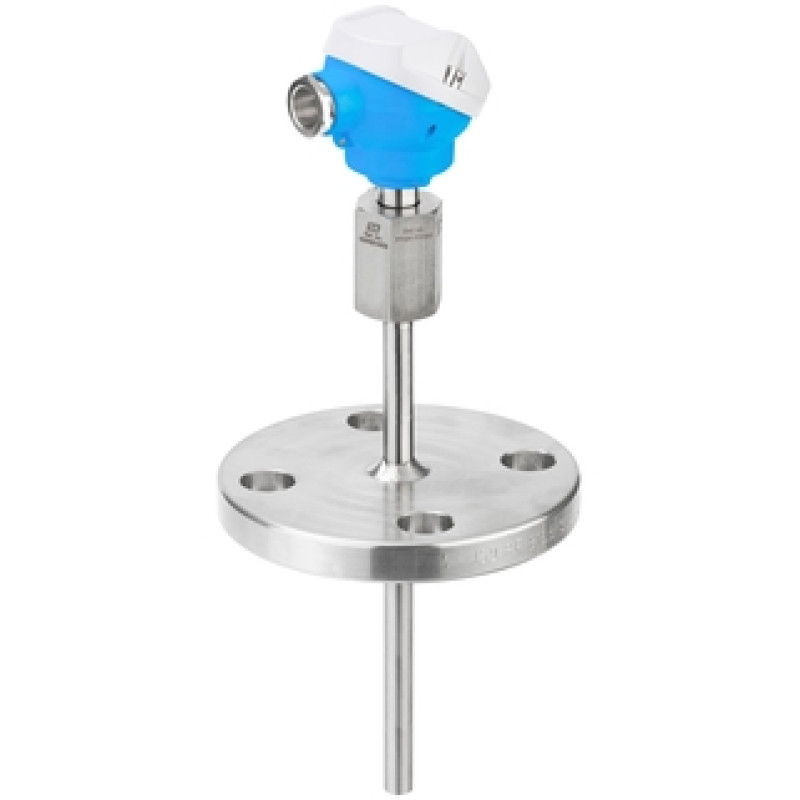

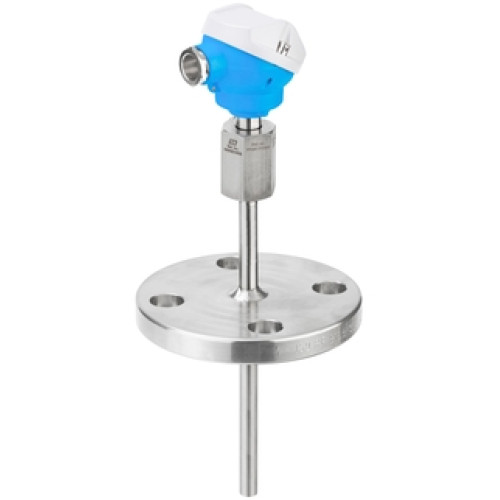

Thermometer with RTD or TC insert complete with manufactured thermowell produced from pipe material
Previous: Thermocouple TC12, Thermocouple TC10, Thermocouple TC13, Thermocouple TC61, Thermocouple TC63, RTD Thermometer TR13, RTD Thermometer TR12, RTD Thermometer TR11, RTD Thermometer TR10, RTD Thermometer TR61, RTD Thermometer TSM187, RTD Thermometer TST187
-
Measuring principle
Resistance Temperature Detector
-
Characteristic / Application
metric style
modular temperature assembly
universal range of application
with neck
incl. thermowell / protection tube (metal) -
Thermowell / protection tube
welded protection tube or to be used with thermowell
-
Insert / probe
Basis Sensortechnologie
-
Outer diameter protection tube / Insert
Thermowell:
9x1,25 mm
11x2 mm -
Max. immersion length on request
up to 1.000,0 mm (39'')
-
Material protection tube/ thermowell
316L (1.4404)
-
Process connection
Thread:
G1/2"
NPT1/2"
M20x1.5, M27x2, M33x2
Compression fitting:
NPT1/2", G1/2", G1"
Flansche:
DN25 DN40 B1
ASME 1" 150 RF
ASME 1" 300 RF
ASME 1 1/2" 150 RF
ASME 2" 150 RF
ASME 2" 300 RF -
Tip shape
straight
-
Operating temperature range
Basic PT100 TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F) -
Max. process pressure (static)
depending on the configuration
-
Accuracy
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class standard acc. to ASTM E230
Class 2 acc. to IEC 60584-2 -
Response time
t90 around 100 s
depending on configuration -
Integration head transmitter
yes (4 … 20 mA; HART)
RTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.
-
Universal range of application
-
Application in non-hazardous areas
-
Measuring range: –50 to +650 °C (–58 to +1202 °F)
-
Pressure range up to 50 bar (725 psi)
-
Degree of protection: up to IP 68
-
Economical, reliable measurement
-
User-friendly from product selection to maintenance
-
Wide range of process connections
-
Easy and safe device setup and service using Bluetooth® communication
