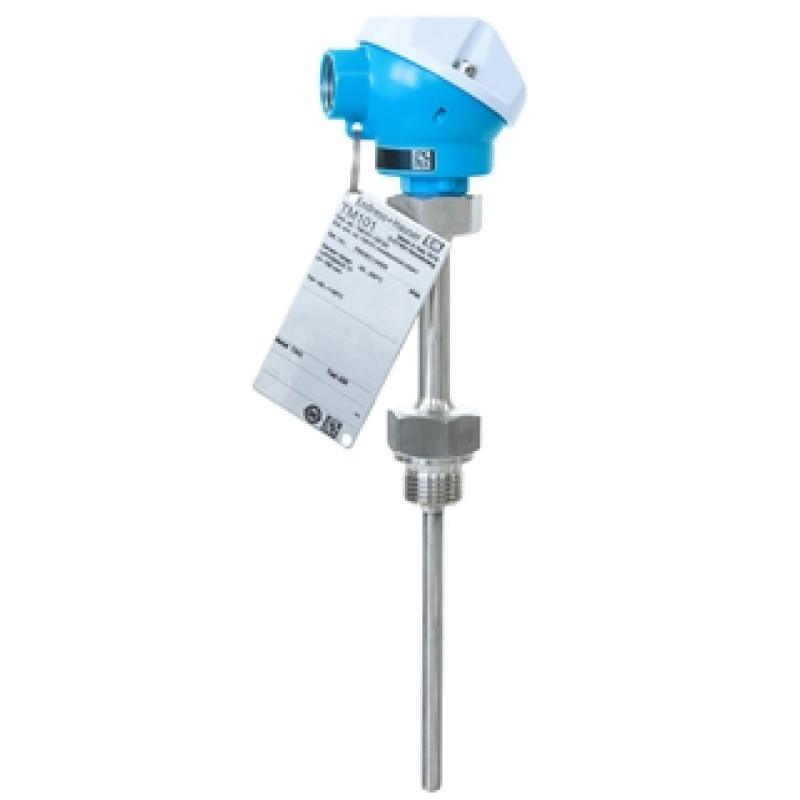

RTD or thermocouple temperature probe for direct installation in various industrial applications
Previous: Thermocouple TC65, Thermocouple TEC420, RTD-Assembly S.A. Style TLSR1, TC-Assembly S.A.Style TLSC1, RTD Thermometer TR65, RTD Thermometer TR25, RTD Thermometer TR24, RTD Thermometer TST410, RTD Thermometer TST40N, RTD Thermometer TST487, RTD Thermometer TST41N, RTD Thermometer TSM487
-
Measuring principle
Resistance Temperature Detector
-
Characteristic / Application
Basic technologie
metric style
universal range of application
direct process contact -
Thermowell / protection tube
without, direct process contact
-
Insert / probe
Basis Sensortechnologie
-
Outer diameter protection tube / Insert
Insert:
6,0 mm -
Max. immersion length on request
up to 1.000,0 mm (39'')
-
Material protection tube/ thermowell
Insert Material:
316L (1.4404)
Alloy 600 (2.4816) -
Process connection
Thread:
G1/2", G1/4"
NPT1/2"
M18x1.5, M20x1.5
Cap-nut:
G1/2", G3/4"
Compression fitting, also spring load:
NPT1/2", G1/2" -
Tip shape
straight
-
Operating temperature range
Basic PT100 TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F) -
Max. process pressure (static)
depending on the configuration
-
Accuracy
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class standard acc. to ASTM E230
Class 2 acc. to IEC 60584-2 -
Response time
t90 around 17 s
depending on configuration -
Integration head transmitter
yes (4 … 20 mA; HART)
