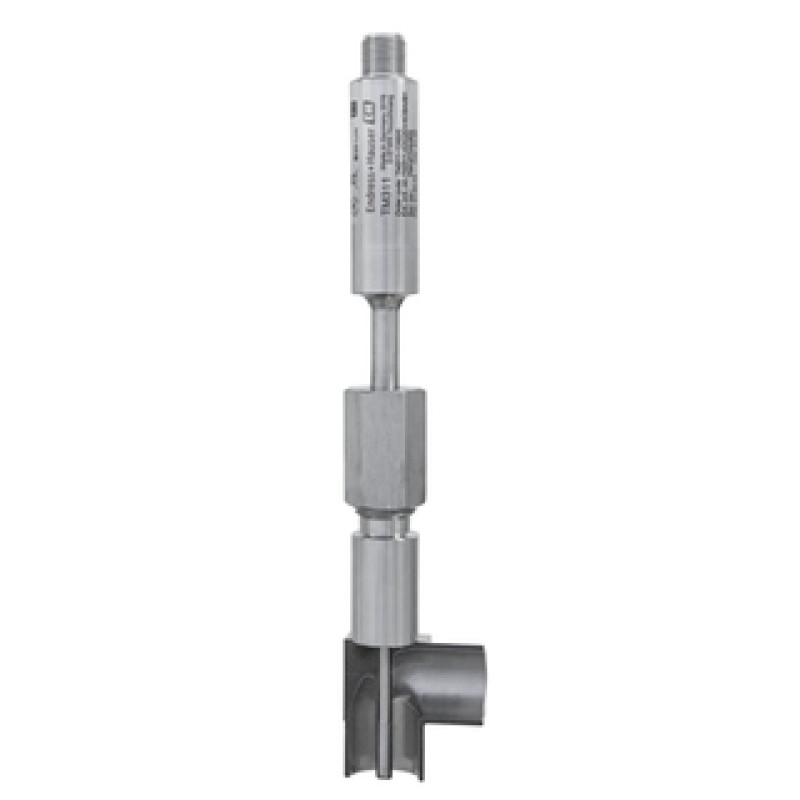

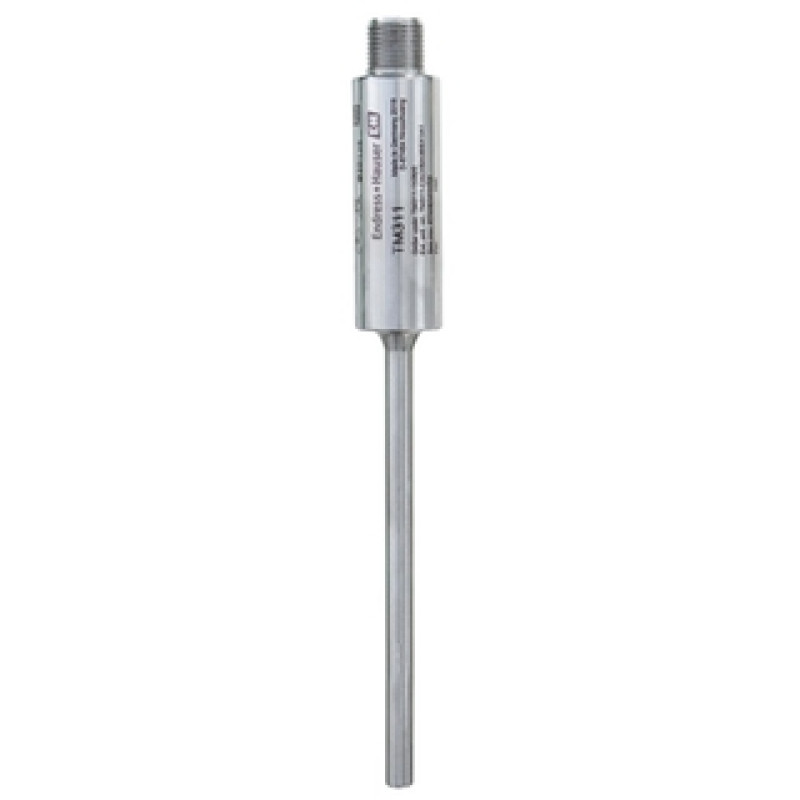

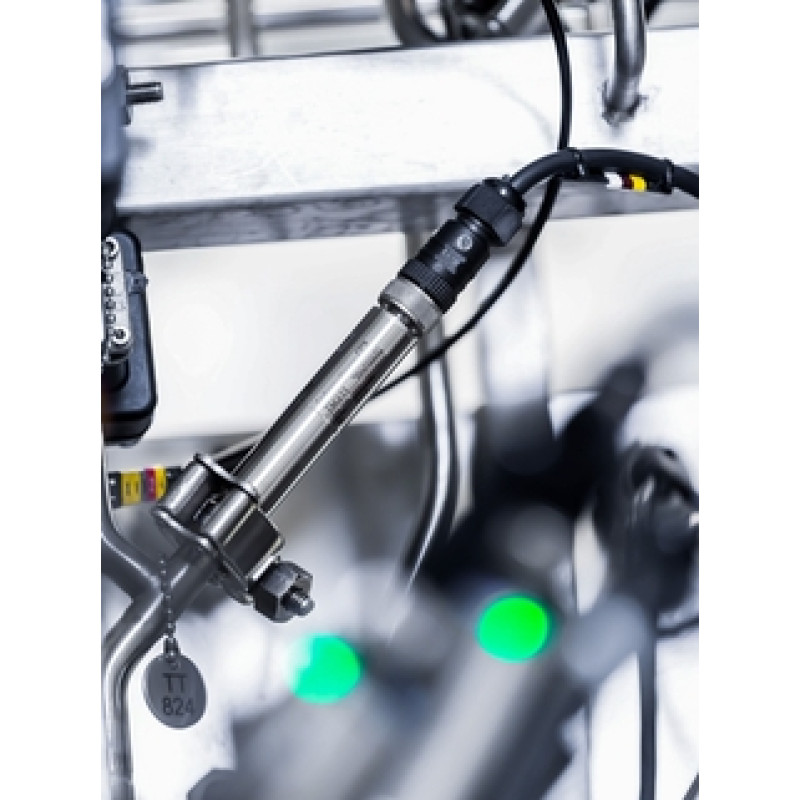

TM311 iTHERM CompactLine Pt100 temperature sensor

Compact, accurate and fast RTD sensor with IO-Link for sterile applications

• Measuring principle

  Resistance Temperature Detector

• Characteristic / Application

  metric and imperial style
  compact temperature probe
  fast response time
  high accuracy
  standard and hygienic design
  hygienic process connection
  threaded process connection

• Thermowell / protection tube

  without
  incl. thermowell
  incl. T-/ellbow thermowell

• Insert / probe

  pipe version, isolated wires, not flexible

• Outer diameter protection tube / Insert

  3,0 mm (0,12'')
  6,0 mm (0,24'')

• Max. immersion length on request

  up to 600,00 mm (23,62'')

• Material protection tube/ thermowell

  1.4435 Delta-Ferrit < 1%
  316L

• Process connection

  compression fitting
  Thread
  weld in adapter
  clamp connections acc. to ISO2852
  screwed pipe joint acc. to DIN 11851
  aseptic screwed pipe joint acc. to DIN 11864-1
  metallic sealing system
  thread acc. to ISO 228 for liquiphant adaptor
  Varivent
  SMS 1147
  T- and elbow pieces

• Tip shape

  straight
  reduced

• Surface roughness Ra

  0,76 μm (29,92 μin)
  0,38 μm (14,96 μin)
  0,38 μm (14,96 μin) electropolished

• Operating temperature range

  PT 100:
  -50 °C ...200 °C
  (-58 °F ...392 °F)

• Max. process pressure (static)

  at 20 °C: 50 bar (725 psi)

• Accuracy

  class A acc. to IEC 60751

• Response time

  t50 = 1 s
  t90 = 1.5 s

• Integration head transmitter

  no (4…20mA Signal, IO-Link)

• Certification

  3A, EHEDG, ASME BPE, FDA, TSE
  1935/2004, 2023/2006, 10/2011
  DNVGL, BV
  CSA C/US General Purpose
  RCM

iTHERM CompactLine TM311 sanitary thermometer provides accurate and fast process temperature measurements in hygienic and aseptic applications. Its temperature sensor offers a 4-wire connection or feeds into a smart temperature transmitter with 4 to 20 mA, IO-Link (auto-detect) or switch output. Featuring TipSens technology, the RTD (Pt100; Class A) delivers response times as low as 1.5 s (t90) for optimum process control. This versatile device is a great choice to drive plant standardization.

• Developed for universal use in sterile applications

• High standardization potential for skid builders, machine and plant manufacturers

• Measuring range: -50 to 200 °C (-58 to 392 °F)

• Pressure range: Up to 50 bar (725 psi)

• Protection class: IP69

• Output: Pt100 (4-wire connection); IO-Link, 4 to 20 mA, 1x PNP switch

• International approvals: 3-A, EHEDG, ASME BPE, FDA, EC 1935/2004, EN 2023/2006, TSE/ADI, GB4806-2016, GB9685-2016; Marine approval acc. to DNV GL

• Fast installation and easy commissioning:
  - Compact dimensions for installation in tight spaces
  - Standard M12 connector with IP69 for easy electrical connection
  - Recommended process immersion lengths for optimum measurement
  - Preset temperature range

• Excellent temperature measurement performance:
  - Short response times as low as 1.5 s (t90)
  - High sensor accuracy even with short immersion lengths
  - Improved measuring accuracy with transmitter-sensor matching

• Safe and reliable operation:
  - Device safety to EN 610101-1 and CSA C/US
  - Electromagnetic compatibility (NAMUR NE 21)
  - Device diagnostic information (NAMUR NE 43)
  - Hygienic design manufactured from high-grade stainless steel
  - Marine approval
