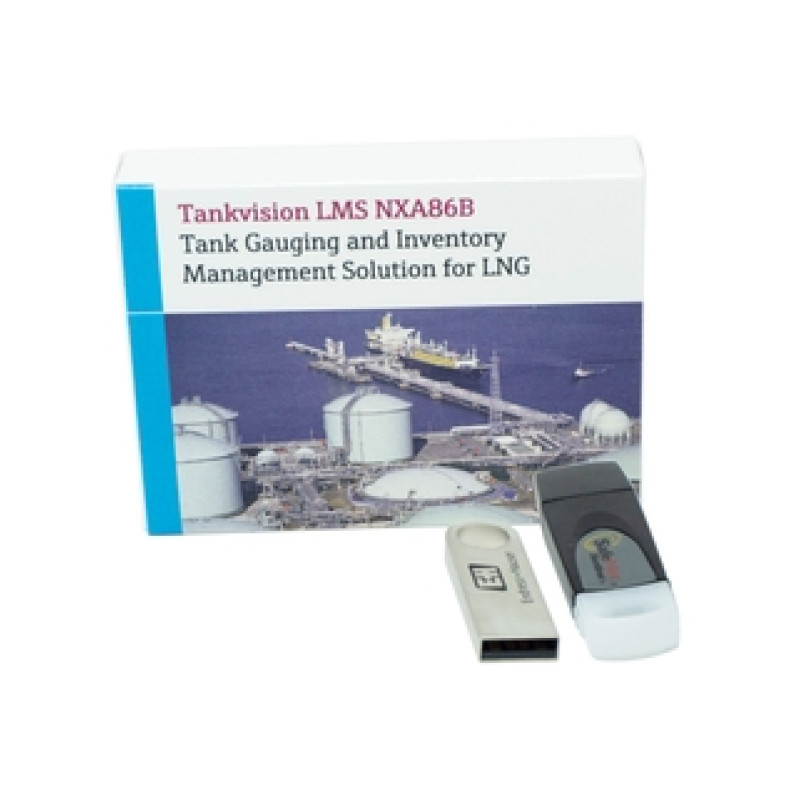

NXA86B LMS Tankvision

LNG Tank Gauging system

Previous: NXA86

• Measuring principle

  Communication Interface

• Function

  LNG measuring system for up to 400 tanks. It summarizes data from various Tank Scanners.

• Communication interface

  Loops + protocols multiple

• Operation

  Web server: Multi-user interface

Tankvision LMS is a total LNG tank storage and management solution for peak shaving plants, receiving terminals and production facilities of LNG. It was designed to interface with all instruments and to collect and present the instrument data through a range of intuitive graphical user interfaces. A typical LNG tank has a wide range of measurement instruments to measure liquid level, liquid density, liquid and vapor temperature, liquid and vapor pressure, skin temperature and much more.

Tankvision LMS NXA86B is an LNG Tank Gauging system for peak shaving plants, receiving terminals and production facilities of LNG.

• Enables seamless integration of all major types of tank level, temperature and density/mass measurement gauges

• Continous calculation and displaying of parameters such as level, temperature, pressure, density, mass, flow rate, gross and standard volumes

• Stratification & Rollover prediction

• Automatic composition analysis

• Stand-alone or redundant system architecture

• Intuitive user friendly graphical user interface (GUI)

• Supports typical LNG tank gauges: Servo, radar, LTD, skin temperature, etc.

• Stratification & Rollover prediction

• Automatic analysis of composition
