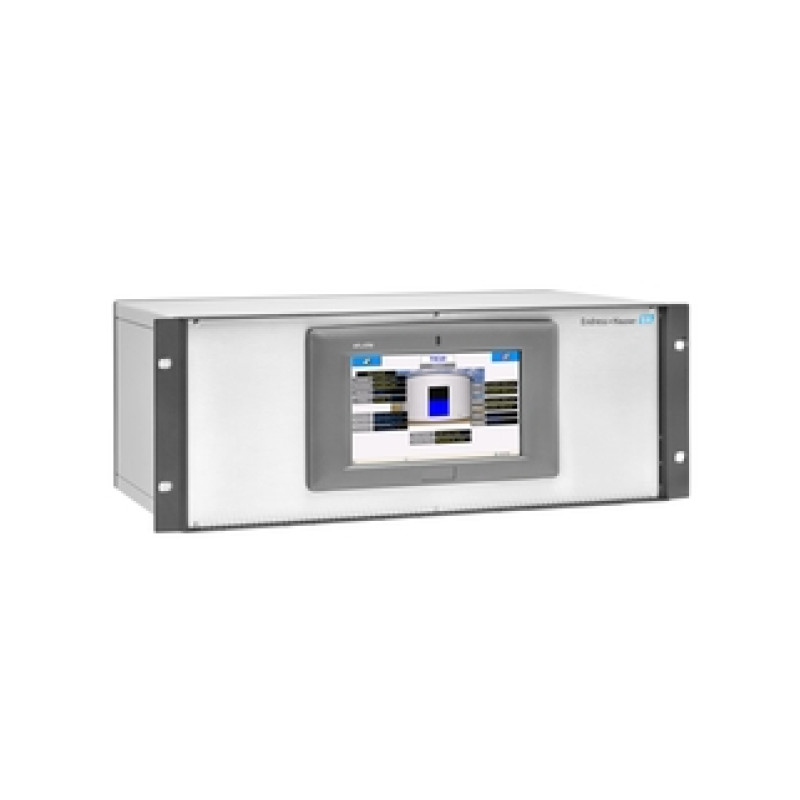

NXA83B Tankvision Multi Scan

Gateway component for Tank Gauging systems

Previous: Tankvision Multi Scan NXA83

• Measuring principle

  Communication Interface

• Function

  Multi Scan
  Acquires data from Field Instruments (up to 250 tanks). The data is provided to the visualization software Tankvision Professional NXA85 or other host systems (PLC und DCS).

• Input

  3 versions:
  4 Channel; 12 Channel; 20 Channel
  With following possible protocols:
  Modbus RS485; V1; WM550;
  Tokyo Keiso FW9000; Varec
  Mark/Space; Saab TRL/2; Enraf
  BPM; Scientific Instruments;
  Modbus Ethernet

• Output

  OPC DA; Modbus RS485; Modbus Ethernet

• Dimensions (WxHxD)

  Rack mounted:
  483x176x260 mm
  (19x6.93x10.24 in)

• Configuration

  Via remote desktop

Tankvision Multi Scan NXA83B is an Tank Gauging system with completley integrated software for operation via remote access and standard web browser. It scans parameters from tank gauges and performs tank calculations. Tankvision Multi Scan allows legacy protocol management as well as gradual upgrades for more flexibility. Due to its modular structure it is ideally suited for medium size tank farms with only a few tanks, but also for large refineries with hundreds of tanks.

Tankvision Multi Scan NXA83B is suitable for medium size tank farms as well as large refineries with hundreds of tanks.

• Suited for tank farms with various protocols used for communicating with the installed field devices and/or redundancy needs

• Provides data to host systems (such as PLC or DCS) via Modbus and/or OPC

• Ambient temperature: 0 to 55°C (32 to 131°F)

• Approved for custody transfer applications according to PTB

• Precise inventory informations

• Step-by-step site upgrade

• High system availability

• User access through the entire Network

• Simplified site approval procedures
