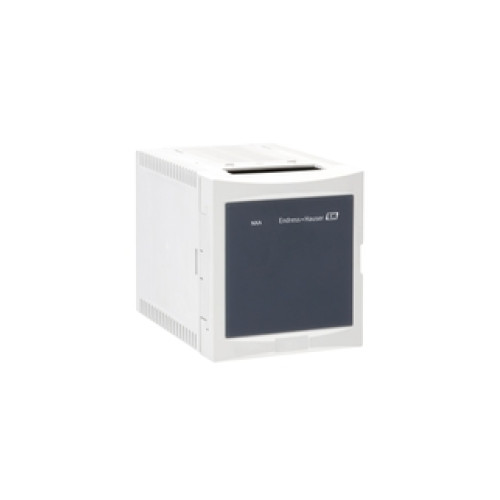

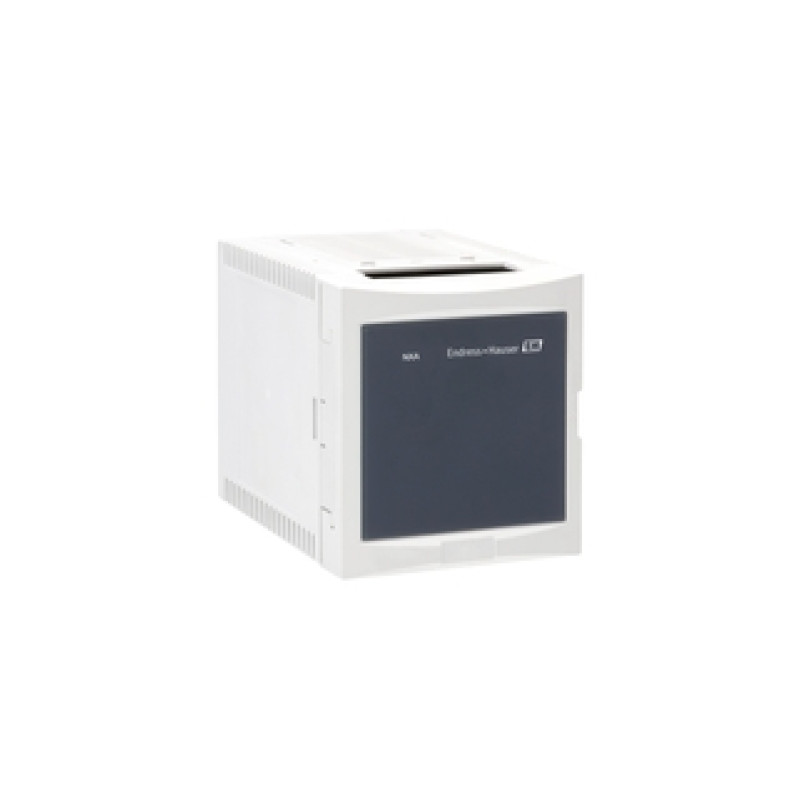

Gauge Link NXA20 Tankvision Inventory management

• Measuring principle

  Communication Interface

• Function

  Gauge Link
  Protocol converter
  Acquires data from Field Instruments with Enraf BPM or Saab TRL/2 protocols and converts the data to Modbus RS-485.

• Input

  Enraf BPM; Saab TRL/2

• Output

  Modbus RS485

• Power supply

  AC: 90...250 VAC

• Dimensions (WxHxD)

  91x104x140 mm (3.6x4.1x5.5 in)

• Configuration

  Via serial port

Gauge Link NXA20 scans parameters from tank gauges with TRL/2 protocol from Emerson Rosemount or BPM protocol from Honeywell Enraf and converts the signal to Modbus RS485 as one part of Tankvision, which is a dedicated tank inventory system. For a step-by-step site upgrade, the Tankvision Gauge Link together with the Tankvision Tank Scanner allows legacy protocol management as well as gradual upgrades for more flexibility. It is ideally suited for small depots as well as bigger tank farms.

Scans parameters from tank gauges. Suited for tank farms with various protocols used for communicating with the installed field devices.

• Provides data to the Tank Scanner NXA820 via Modbus

• Ambient temperature: -40 to +60°C (-40 to +140°F)

• Legacy protocol management

• Step-by-step site upgrade

• Higher system availability
