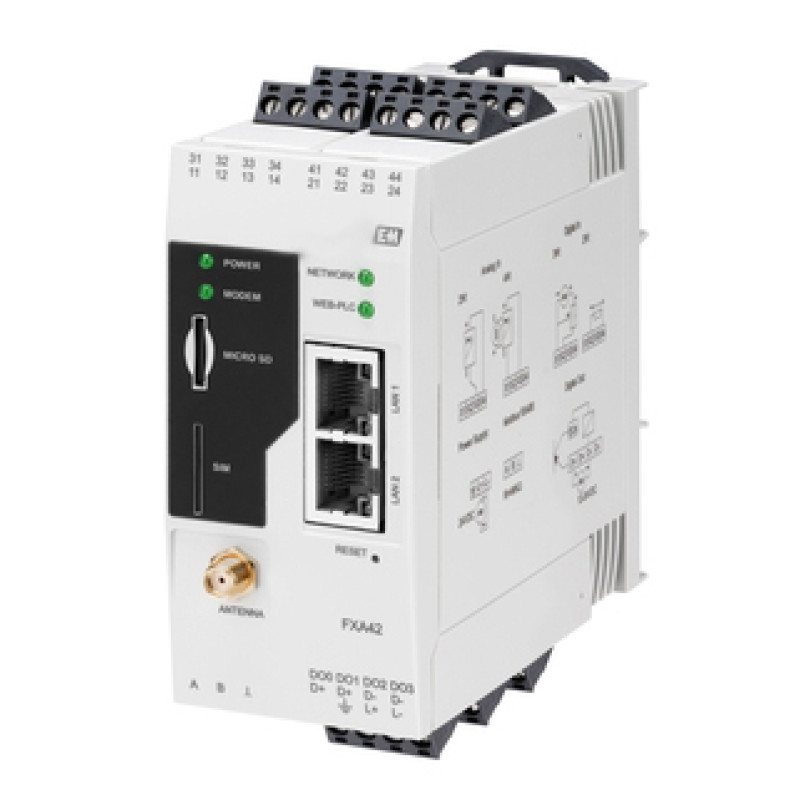

FXA42 Fieldgate Gateway for measurement values

Communication of measurement values of connected 4 to 20mA analog as well as digital field devices

Previous: Fieldgate FXA520, Fieldgate FXA320, FXZ520, FXA360, FXA560

• Measuring principle

  Fieldgate

• Function

  Ethernet/analog or binary signal Gateway for SupplyCare with integrated Web server

• Input

  4x 4...20 mA analog
  4x digital
  Pulse counter
  Modbus TCP
  Modbus RS485

• Output

  4x digital
  Modbus TCP
  Modbus RS485

• Relay output signal type

  None

• Memory

  SD Card 1GB

• Power supply

  24V DC

• Dimensions (WxHxD)

  45 mm x 100 mm x 115 mm
  (1.77" x 3.93" x 4.53")

• Communication interface

  Ethernet
  WLAN
  Cellular

• System requirements

  Mozilla Firefox Version 31 or newer
  Google Chrome Version 31 or newer
  Microsoft Edge
  Internet Explorer 10 or newer
  For mobile devices:
  iOS Safari 7.1 or newer
  Android Firefox or Chrome from Version 31

• Configuration

  Via embedded web server

• Certificates

  EAC
  FCC
  IC

Fieldgate FXA42 is developed for monitoring of field devices with digital or 4 to 20mA interface regardless of location. It supports communication interfaces like Ethernet, WLAN or cellular communication. With its integrated web server technology it can easily be configured online and measured values can be visualized online. FXA42 also offers data logging and alarm management functions.

For remote monitoring of connected 4 to 20mA analog as well as digital field devices via Ethernet, WLAN or cellular communication.

• Measured values can be viewed with a standard internet browser

• Configuration of measuring and transmission cycles

• Configurable monitoring of limit values with alarm signaling via email or text

• Four 4 to 20mA inputs, 4 digital input and output channels

• Modbus TCP and Modbus RTU

• Level, flow and pressure visualization at the desk regardless of location

• Simple configuration of Fieldgate and easy visualization of measured values via its integrated web server

• Connects to SupplyCare Enterprise and SupplyCare Hosting

• Advanced functions and actions from logic programming

• Limit value monitoring with alarm via email or SMS

• Tank monitoring with limit status from the analog inputs (HH, H, L, LL)

• Easy connection to field devices and connectivity to 3rd party systems
