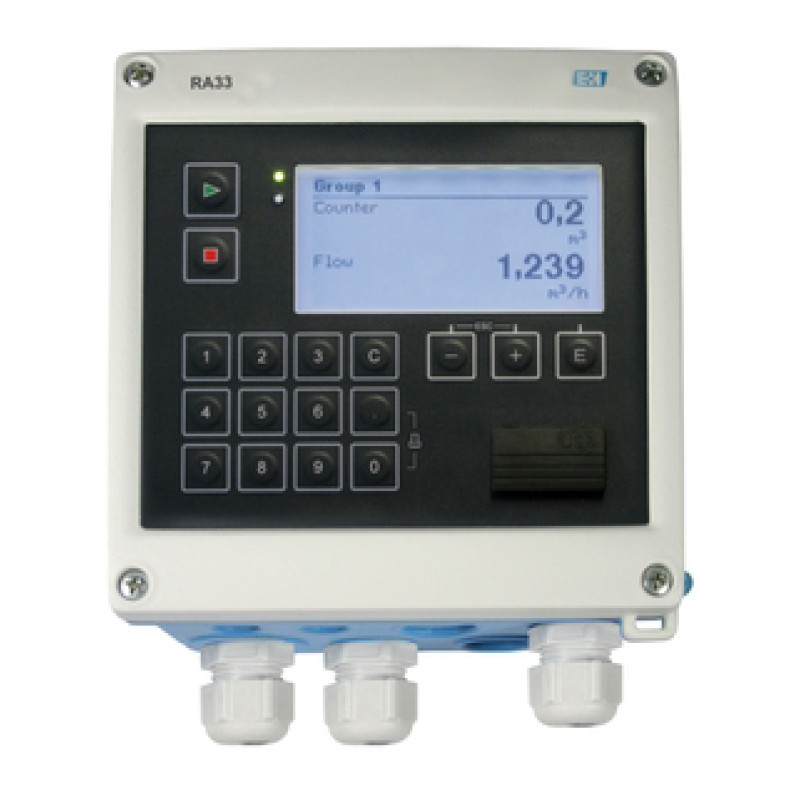

RA33 Batch Controller

Measuring principle

Application manager
Measuring principle

Batch controller
Function

Filling & dosing
Calculations

Volume calculation
Number of applications

1
Data storage

yes
Calculation standards

ASTM D1250-04
Communication

RS232
USB
Ethernet
Modbus TCP
Modbus RTU
Power supply

Not defined
Loop power supply

Low voltage power supply:
100 bis 230 V AC (-15% / +10%)
Small voltage power supply:
24 V DC (-50% / +75%)
24 V AC (±50%)
Protection class

IP65
Input

1 x analogue (I) / pulse (for flow)
1 x RTD (for temperature)
1 x analogue (I) (for density)
Loop power supply 24V DC (+/-16%)
Output

1 x analogue (I) / pulse (active)
2 x open collector
Dimensions (WxHxD)

144 x 144 x 103.1 mm (5.67" x 5.67" x 4.06")
Operation

3 operation buttons and 14 function buttons for batch operation or via FieldCare
Read out of historical / logged data via Field Data Manager software (SQL database and visualization interface)
Selectable language
Display

160 x 80 Dot-Matrix LCD with white backlit
Colour change in case of alarm event
Active display area 70 x 34 mm
Software functions

Volume calculation
1 or 2 stage operation
Manual and automatic overrun correction
Volume correction factor (VCF) according ASTM D1250-04 for generalized crude oils, refined products and lubricating oils
Certificates

CE
CSA GP
NTEP (USA)

easuring principle

Batch controller
Function

Filling & dosing
Certification

CE
UL listed
CSA GP
Input

1 x analogue (I) / pulse (for flow)
1 x RTD (for temperature)
1 x analogue (I) (for density)
Loop power supply 24V DC (+/-16%)
Output

1 x analogue (I) / pulse (active)
2 x open collector
Relay output

2 x relay
Auxiliary power supply / Loop power supply

Low voltage power supply:
100 bis 230 V AC (-15% / +10%)
Small voltage power supply:
24 V DC (-50% / +75%), 24 V AC (±50%)
Dimensions (wxhxd)

144 x 144 x 103.1 mm
(5.67" x 5.67" x 4.06")
Software

Volume calculation
1 or 2 stage operation
Manual and automatic overrun correction
Volume correction factor (VCF) according ASTM D1250-04 for generalized crude oils, refined products and lubricating oils
Operation

3 operation buttons and 14 function buttons for batch operation or via FieldCare
Read out of historical / logged data via Field Data Manager software (SQL database and visualization interface)
Selectable language
Display

160 x 80 Dot-Matrix LCD with white backlit
Colour change in case of alarm event
Active display area 70 x 34 mm
