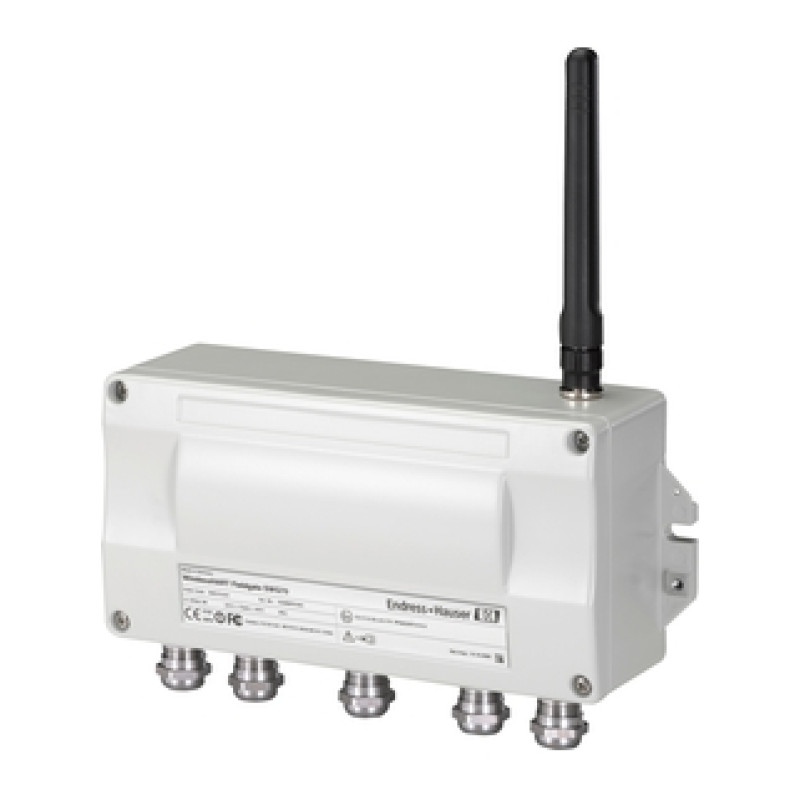

SWG70 WirelessHART Fieldgate

Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

• Measuring principle

  WirelessHART

• Function

  Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

• Certification

  Non-hazardous area, ATEX, IEC Ex

• Input

  WirelessHART communication interface
  Transmission rate: Nominal 250 kBits/s
  Operating frequency: 2.4 GHz (ISM band)
  Transmission range under reference conditions:
  Outdoor 250 m, indoor 50 m

• Output

  Ethernet (10 BASE-T/10 BASE TX)
  - Configurable for HART IP and MODBUS TCP communication
  RS-485 serial interface
  - Configurable for HART Version 7.0 or MODBUS RTU communication
  EtherNet/IP interface

• Auxiliary power supply / Loop power supply

  20 VDC to 30 VDC

• Dimensions (wxhxd)

  W x H x D:
  257 mm x 85 mm x 285 mm with cable glands and antenna
  257 mm x 85 mm x 115 mm without cable glands and antenna

• Software

  Internal software for controlling the WirelessHART network including web interface for configuration.

• Operation

  Integral via Pushbuttons
  PC configuration:
  - Web browser via Ethernet
  - FieldCare via Ethernet (HART IP CommDTM) or RS-485 (S-MUX DTM)

• Display

  Integral via 5 LEDs

• Operating Voltage

  20 VDC to 30 VDC

• Nominal current

  <5 W

• Easy commissioning and diagnosis of a self-organizing WirelessHART network

• Seamless integration of field device information into superior system applications with standardized protocols, such as MODBUS, EtherNet/IP, HART-IP or OPC

• Wireless configuration and administration of intelligent field devices in the plant by using FieldCare

• Flexible Fieldgate operation in ex-hazardous areas in the plant
