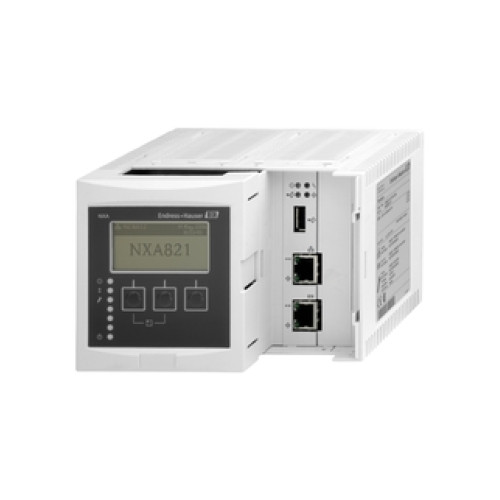

NXA821 Data Concentrator Tankvision Inventory management

Consolidates data from connected Tank Scanners NXA820

Previous: NRM571, NRS57, NXS310

• Measuring principle

  Communication Interface

• Function

  Data Concentrator
  Consolidate data from connected Tank Scanners NXA820. Up to 6 Tank Scanner can be assigned to one Data Concentrator (up to 90 tanks).The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device.

• Input

  Connection to NXA820

• Output

  Ethernet; Serial Printer port according to PTB

• Relay output signal type

  Status relay with switching power:
  – 25 VDC, 100 W
  – 250 VAC, 4 A, 1000VA

• Power supply

  AC: 90...250 VAC
  DC: 10.5...32 VDC

• Dimensions (WxHxD)

  150x104x140 mm (5.9x4.1x5.5 in)

• Configuration

  Via web server

Liquids

• Measuring principle

  Level radar

• Characteristic / Application

  Data Concentrator
  Consolidate data from connected Tankvision NXA820. Up to 10 tank scanners can be assigned to one data concentrator (up to 150 tanks).The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device.
