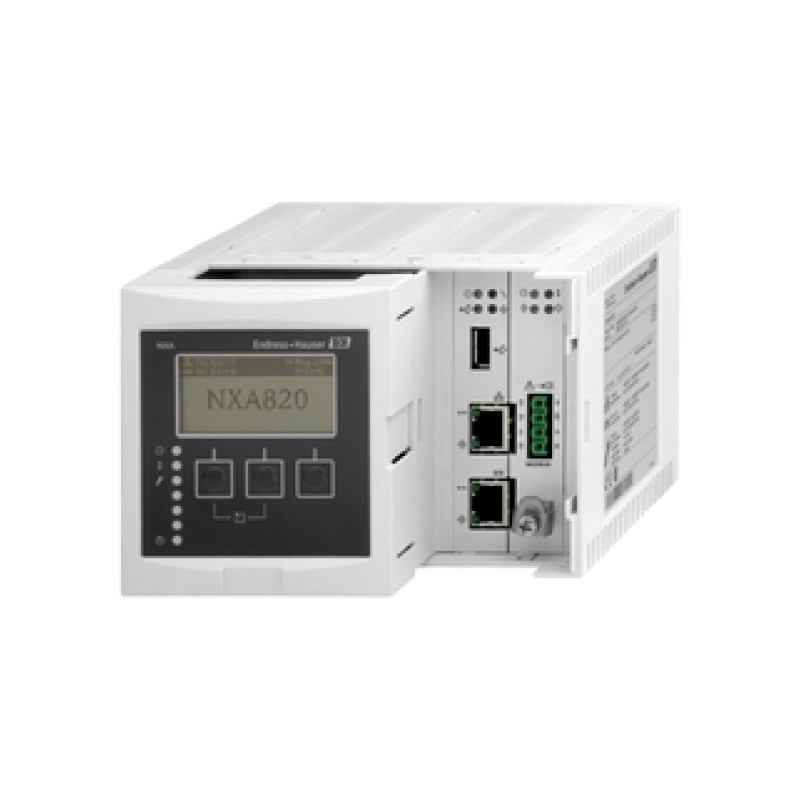

NXA820 Tank Scanner Tankvision Inventory management

Acquires data from field instruments

Previous: NRM571, NRS57, Tankvision Field Link NXA30, NXS310, NR30

• Measuring principle

  Communication Interface

• Function

  Tank Scanner
  Acquires data from Field Instruments (15 Tanks with Modbus or WM550 protocols and 10 with the V1 protocol). The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device.

• Input

  Modbus RS485; V1; WM550

• Output

  Ethernet; OPC DA Server (installed on a separate PC)

• Relay output signal type

  Status relais with switching power:
  – 25 VDC, 100 W
  – 250 VAC, 4 A, 1000VA

• Power supply

  AC: 90...250 VAC
  DC: 10.5...32 VDC

• Dimensions (WxHxD)

  150x104x140 mm (5.9x4.1x5.5 in)

• Configuration

  Via web server

Liquids

• Measuring principle

  Level radar

• Characteristic / Application

  Tank Scanner
  Acquires data from field Instruments (15 tanks with Modbus or WM550 protocols and 10 with the V1 protocol). The inbuild web server enables the user to visualize the incoming data as well as the calculated values and configure the device.
