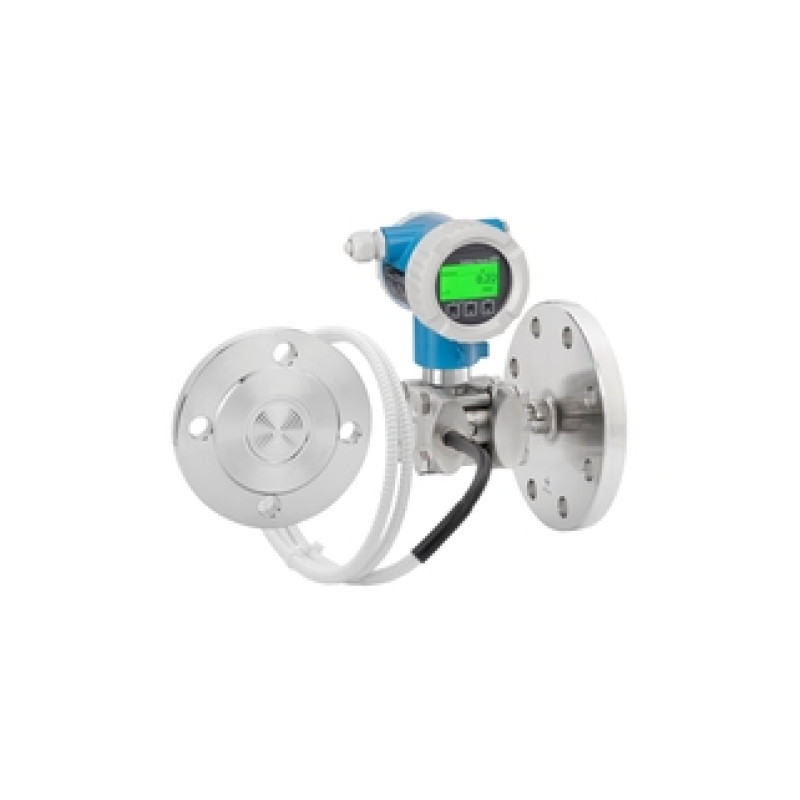

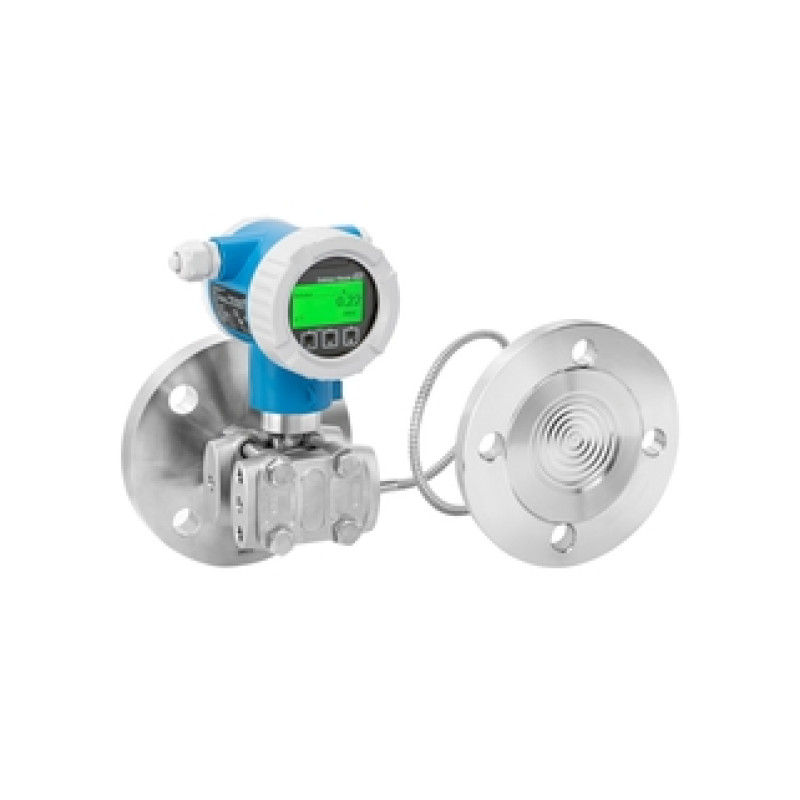

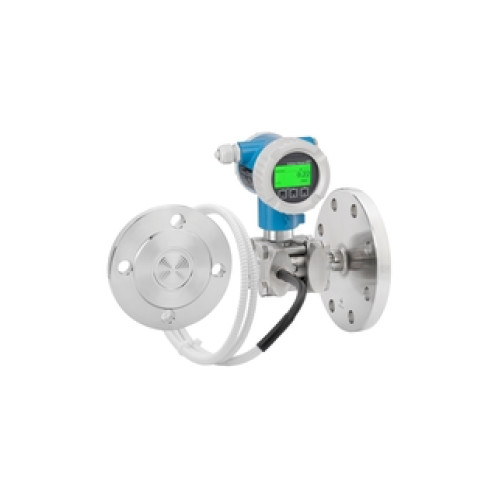

PMD78B Deltabar differential pressure transmitter

Minimizes ambient and process temperature effects on your measurement thanks to the TempC membrane

• Accuracy

  Standard:
  up to 0.1 %

• Process temperature

  -40°C...+400°C
  (-40°F...+752°F)

• Pressure measuring range

  100 mbar...40 bar
  (1.5psi...600 psi)

• Main wetted parts

  316L, AlloyC,
  Tantal, Monel
  PTFE, Gold

• Material process membrane

  316L, AlloyC,
  Tantal,
  Monel
  PTFE
  Gold

• Measuring cell

  100 mbar...40 bar
  (1.5 psi...600 psi)
