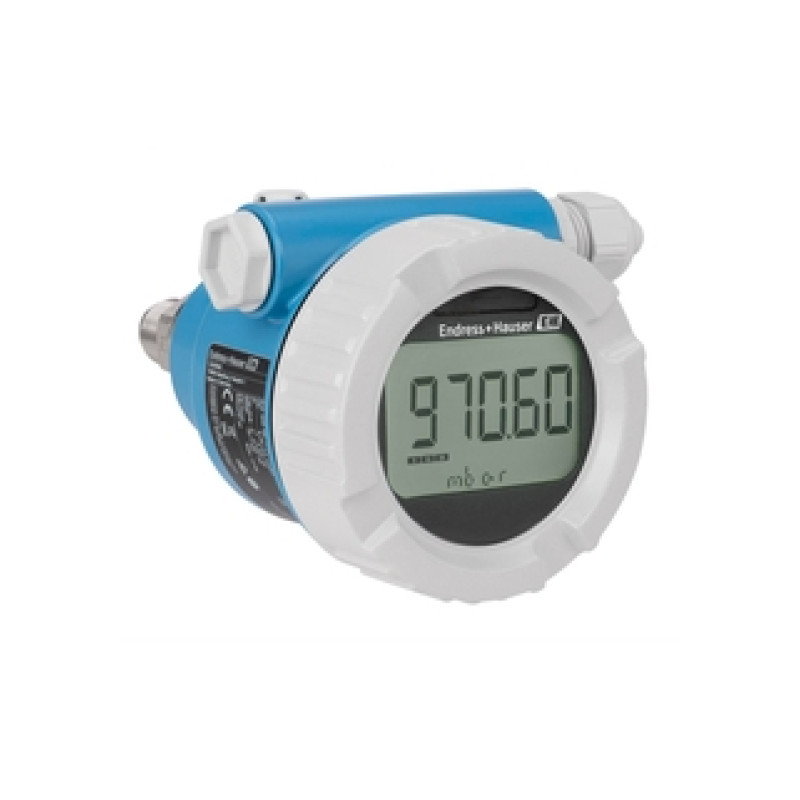

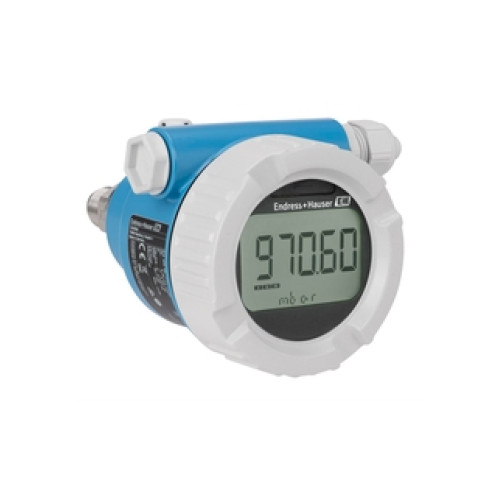

PMC51B Cerabar pressure transmitter

Simple and reliable level probe for freshwater applications

• Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Process temperature

  -40°C...+100°C
  (-40°F...+212°F)

• Pressure measuring range

  100 mbar...40 bar
  (1.5 psi...600 psi)

• Main wetted parts

  Ceraphire ceramic
  FKM, EPDM, HNBR,
  Perlast, Kalrez

• Material process membrane

  Ceramic

• Measuring cell

  100 mbar...40 bar
  (1.5 psi...600 psi)

This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

• Pressure measuring range: up to 40 bar (600 psi)

• Fully vacuum resistant up to +100°C (212°F) process temperature

• Accuracy: up to +/-0.055%

• Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

• Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
