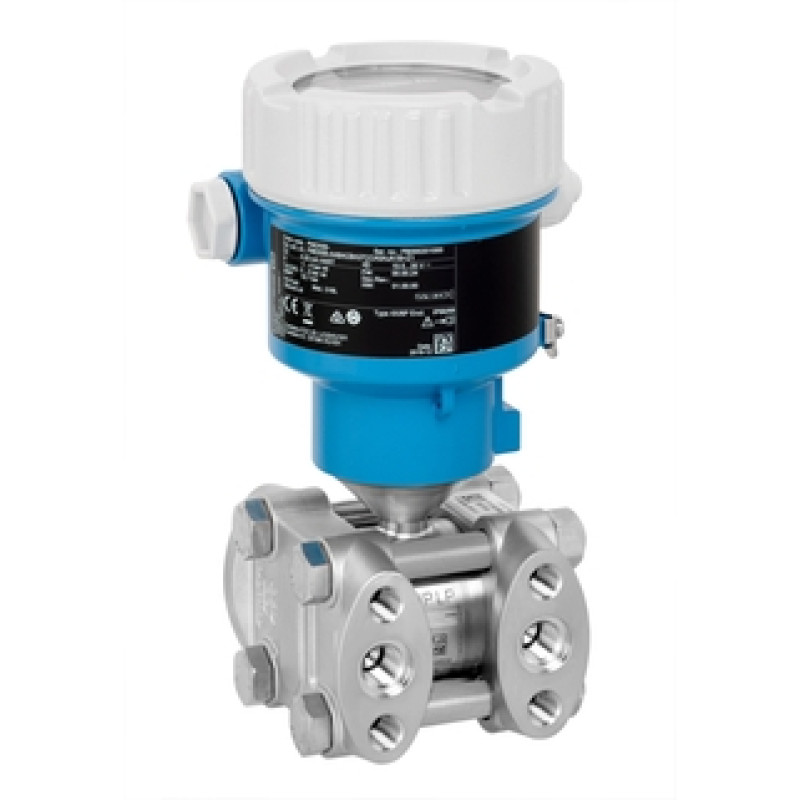

PMD55B Deltabar differential pressure transmitter

Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases

• Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Process temperature

  -40°C...+110°C (-40°F...+230°F)

• Pressure measuring range

  30 mbar.... 40 bar (0.45 psi... 600 psi)

• Main wetted parts

  316L, AlloyC

• Material process membrane

  316L, AlloyC

• Measuring cell

  30 mbar...40 bar
  (0.45 psi...600 psi)

This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.

• Pressure measuring range: up to 40 bar (600 psi)

• Static pressure up to 250bar (3750psi)

• Accuracy: up to +/-0.055%

• Wireless control of the device in the process area with the SmartBlue App without interrupting the process

• Reduce on site accidents and protect equipment when instruments are in difficult to reach areas

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
