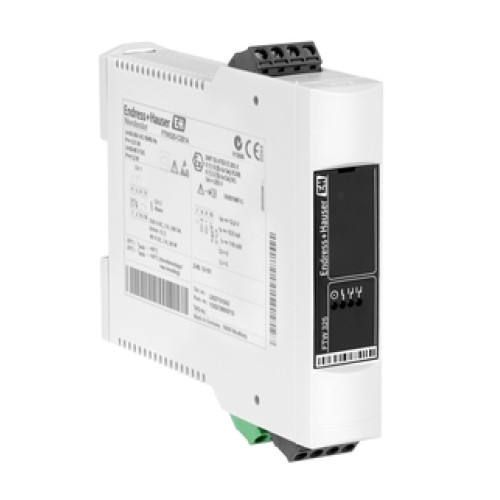

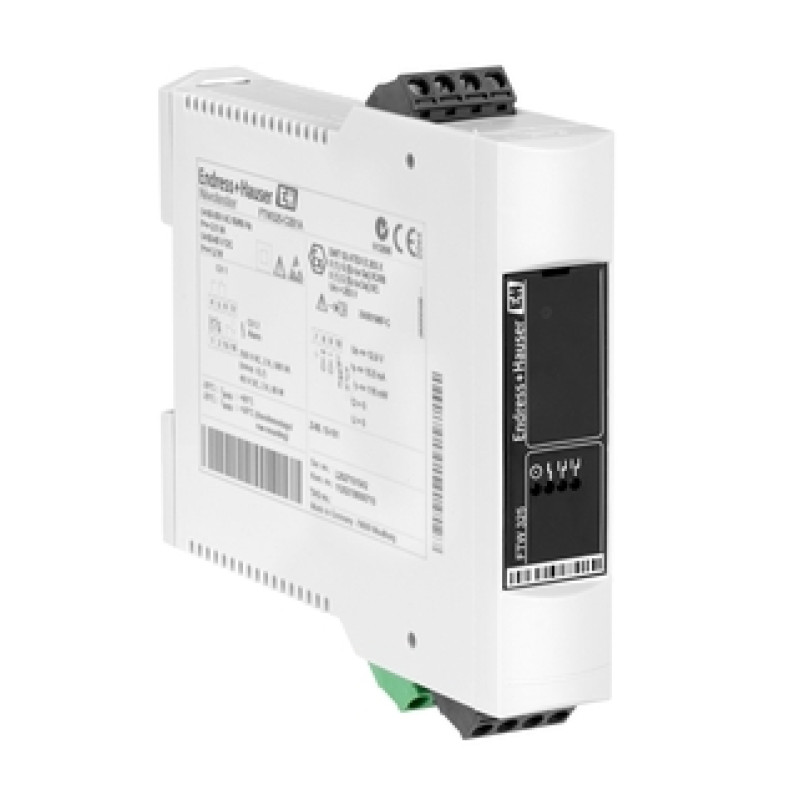

FTW325 Nivotester Conductive Point level switch

Point level switch with intrinsically safe signal circuit for connection to a conductive sensor

Previous: FTW420, FTW470Z, FTW570Z, FTW520Z

• Measuring principle

  Conductive

• Characteristic / Application

  2-channel level measurement device, level limit, switch delay, two-point control

• Supply / Communication

  85V ... 253V AC
  20V ... 30V AC
  20V ... 60V DC

• Ambient temperature

  -20 °C ... 60 °C
  (-4 °F ... 140 °F)

• Min. density of medium

  min. 10 uS

• Communication

  2 relays SPDT/DPDT

• Certificates / Approvals

  ATEX, FM, CSA, NEPSI, EAC

• Safety approvals

  Overfill protection WHG

The Nivotester FTW325 is a point level switch with intrinsically safe signal circuit for connection to a conductive sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

For point level detection in tanks for liquids also for hazardous areas. Overfill prevention for tanks with flammable or non-flammable water-polluting liquids. Pump dry running protection.

• Mounting: Standard rails in cabinet

• Two-point control and point level detection

• Ambient temperature: -20 to +60°C (-4 to +140°F)

• International explosion protection certificates

• Cost-effective point level switch for conductive liquids

• Intrinsically safe signal circuit EEx ia IIC for using sensors in hazardous areas

• Line monitoring up to the sensor

• Configurable sensitivity range

• Alarm relay can be switched as second level relay (SPDT)

• Easy wiring thanks to pluggable terminal blocks
