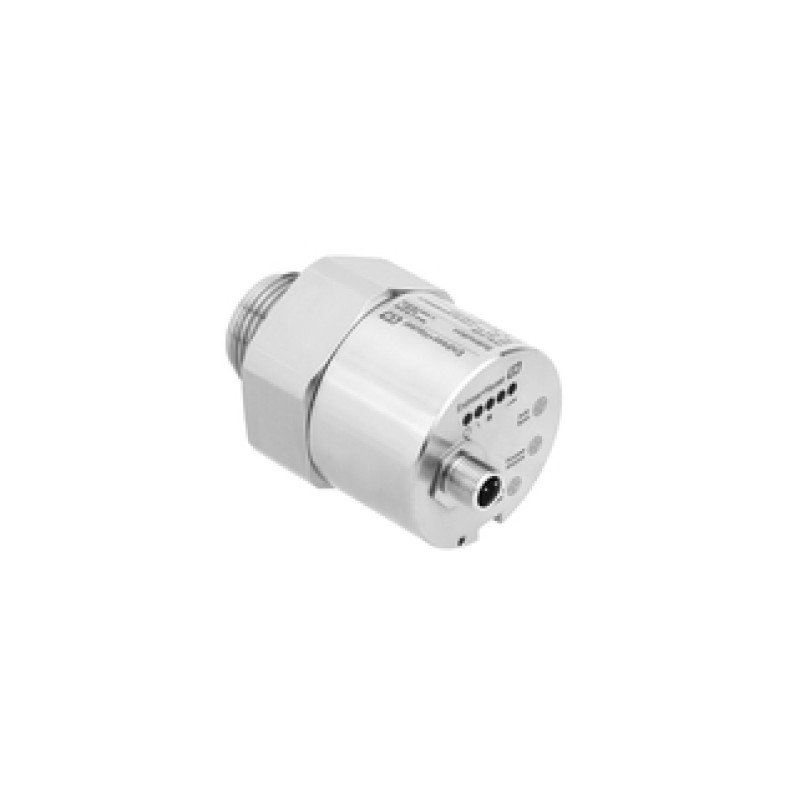

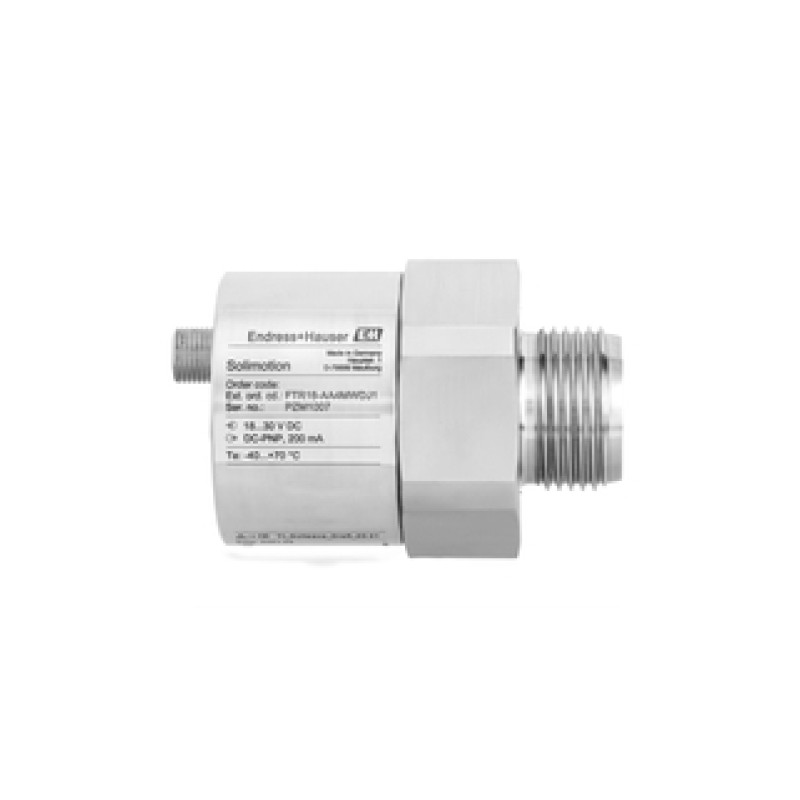

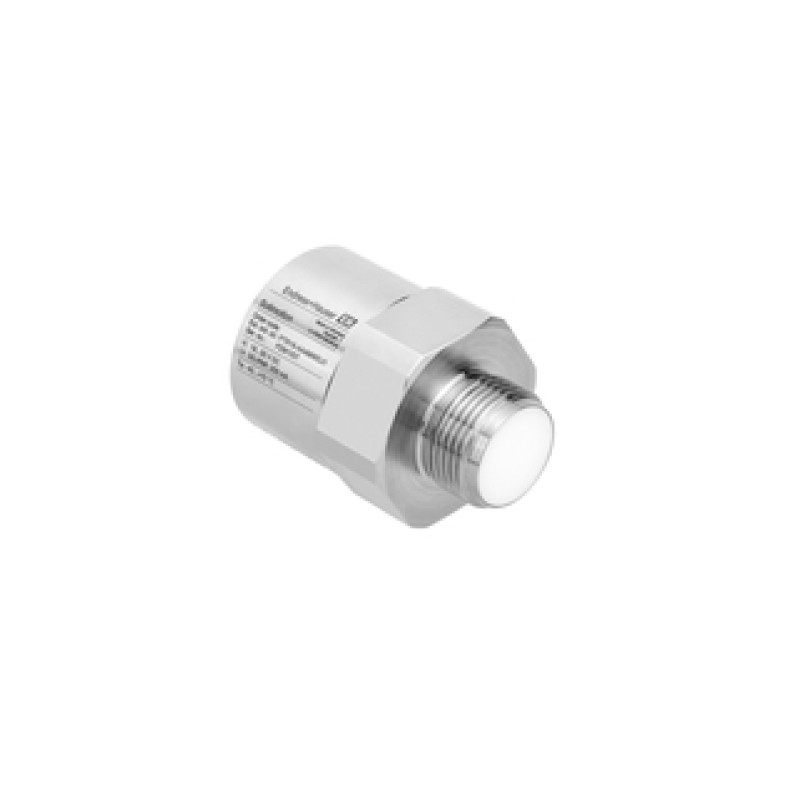

FTR16 Solimotion Microwave flow indicator

Ultra-compact flow indicator for monitoring pneumatic and mechanical transport processes of bulk solids

• Measuring principle

  Microwave barrier

• Characteristic / Application

  Flow indicator for bulk solids
  Non-contact motion detection (movement / no movement)
  of pneumatically or mechanically conveyed bulk solids of all kinds,
  also in potentially explosive atmospheres (dust Ex)

• Specialities

  Detection range: max. 5 m
  Detectable velocity: 0.09 m/s ... 62 m/s

• Supply / Communication

  18 V ... 30 V DC,
  Plug M12

• Ambient temperature

  -20 °C ... +60 °C (-4 °F ... +140 °F)

• Process temperature

  Non-contact installation: any
  Within installation:
  –20 °C ... +60 °C (–4 °F ... +140 °F)
  With HT-Adapter:
  up to +450 °C (+842 °F)

• Process pressure / max. overpressure limit

  Non-contact installation: any
  Within installation:
  0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
  With HP-Adapter:
  up to +21 bar (+305 psi) abs.

• Min. density of medium

  Solid weight: > 10 g/l

• Main wetted parts

  Non-contact installation:
  no wetted parts
  Contact installation:
  316L, PTFE

• Process connection

  ISO228-1: G1", G1-1/2"
  ASME: NPT1-1/2"

• Process connection hygienic

  Non-contact installation

• Communication

  3-wire-DC-PNP,
  2 DC-PNP-outputs

• Certificates / Approvals

  ATEX, IEC Ex

• Design approvals

  EN10204-3.1

• Hygienic approvals

  EG1935/2004

• Options

  Mounting bracket
  Counternut
  Welding sleeve
  Connection cable
  Connecting cable
  High-pressure adapter
  High-temperature adapter
  Extension for HT adapter
  Mounting flange
  Sight glass fitting
  FAR50, FAR51, FAR52, FAR54

• Application limits

  Solid weight: < 10 g/l

The Solimotion FTR16 is an ultra-compact flow indicator for efficient and reliable monitoring of pneumatic
and mechanical transport processes of bulk solids. It can also be used in difficult-to-access or confined installation conditions. For non-metallic container materials, measurement from the outside is possible.

The Solimotion FTR16 is ideally suited for the monitoring of mass flow rates and can be used wherever a bulk material movement has to be monitored cost-effectively. The individual adaptation to the application is carried out with the help of parameterizable functions. The device can be used in multiple industries like primaries, energy and food.

• Non-contact measuring principle - detection almost independent of process properties

• High security - permanent self-diagnosis and full self-test

• First flow indicator for bulk solids with IP69 protection classification

• Meets the requirements of EU 1935/2004

• Very simple and cost-effective commissioning

• Safe detection - non-contact measuring method guarantees wear-free and maintenance-free continuous operation

• Robust design - housing made of stainless steel
