FTL325P Nivotester Vibronic Point level detection

Switching unit with intrinsically safe signal circuit for connection to Liquiphant or Soliphant

Previous: Nivotester FTL375P, FTL320

• Measuring principle

  Vibration Liquids

• Characteristic / Application

  Switching unit PFM technology for rail mounting
  Intrinsically safe
  Highest SIL safety

• Specialities

  If sensors are redundant, SIL3

• Supply / Communication

  85...253 V AC,
  20...30 V AC/ 20...60 V DC

• Ambient temperature

  Single installation:
  -20 °C ... 60 °C
  (-4 °F ... 140 °F)
  Rail mounting:
  -20 °C ... 50 °C
  (-4 °F ... 122 °F)

• Communication

  1 Channel: 1 Level SPDT + 1 Alarm SPST
  3 Channel: 3 level SPDT + 1 Alarm SPST

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI, EAC

• Safety approvals

  Overfill prevention WHG
  SIL

• Measuring principle

  Vibration Solids

• Characteristic / Application

  Switching unit PFM technology for rail mounting
  Intrinsically safe

• Supply / Communication

  85...253 V AC,
  20...30 V AC / 20...60 V DC

• Ambient temperature

  Single installation:
  -20 °C ... 60 °C
  (-4°F ... 140 °F)
  Rail mounting:
  -20 °C ... 50 °C
  (-4 °F ... 122 °F)

• Communication

  1 Channel: 1 Level SPDT + 1 Alarm SPST
  3 Channel: 3 level SPDT + 1 Alarm SPST

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI

• Safety approvals

  Overfill prevention WHG
  SIL

The switching unit FTL325P is used for point level detection in liquid tanks and bulk material silos, also in hazardous explosion areas. Also suitable for liquid detection in pipes for dry running protection for pumps and overfill prevention for tanks with combustible or non-combustible liquids harmful to water. Up to 3 measuring devices for two-point control and point level detection. Functional safety up to SIL3 in accordance to IEC 61508 using Liquiphant with electronic insert FEL57.

Switching unit with intrinsically safe signal circuit for connection to Liquiphant or Soliphant.

• Ambient temperature: -20 to +70°C (-4 to +158°F)

• International explosion protection certificates, overfill prevention WHG, marine approvals

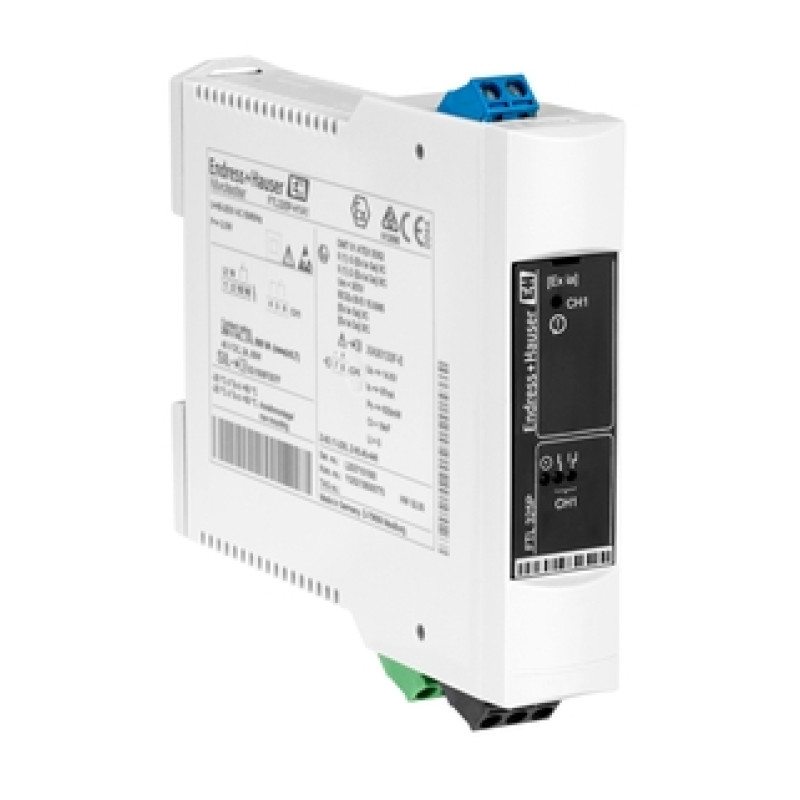

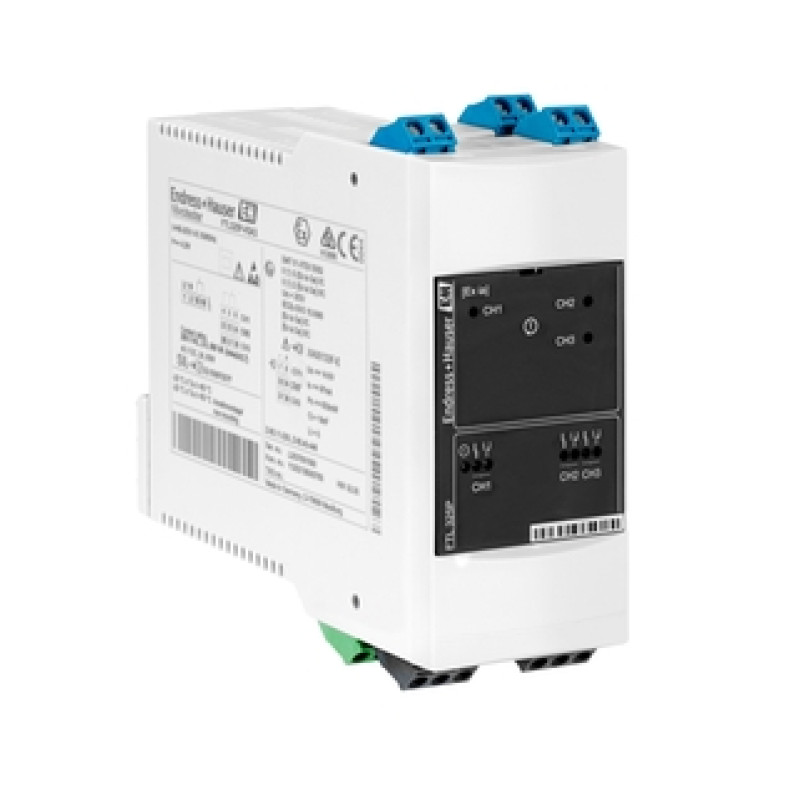

• Nivotester FTL325P for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)

• Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas

• Functional safety up to SIL2 through line monitoring. Simplified proof testing to WHG/SIL by pressing push-button

• DIN Rail housing for simple series installation on standard rails in switch cabinet

• Simple wiring using pluggable terminal blocks

• Inputs are galvanically isolated from each other, from the mains and from the outputs
