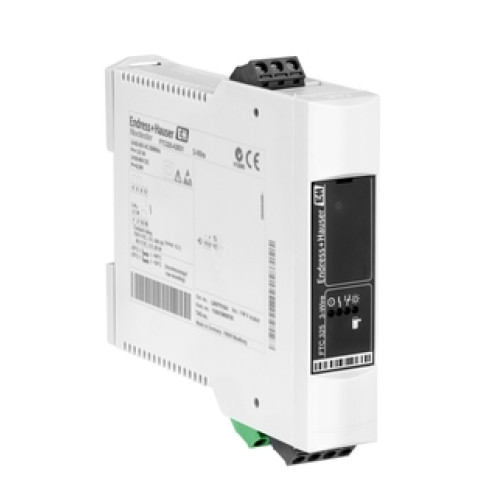

FTC325 Nivotester Capacitance Point level switch

Point level switch with intrinsically safe signal circuit for connection to a capacitance sensor

Previous: Transmitter FTC520Z, Transmitter FTC521Z, Transmitter FTC625, Transmitter FTC421, Transmitter FTC422, Transmitter FTC420N

• Measuring principle

  Capacitive Liquid

• Characteristic / Application

  Transmitter with intrinsically safe signal
  Calibrating using operating keys
  adjustable operating delay
  2-wire PFM
  3-wire
  Rail mounting:
  Wide: 45mm (PFM
  )Wide: 22,5 mm
  With adjustable hysteresis

• Specialities

  Min / Max - changeover
  Test/correction key (PFM)

• Supply / Communication

  85V ... 253V AC
  20V ... 60V DC

• Ambient temperature

  Serial montage
  -20 °C ... 50 °C
  (-4 °F ... 122 °F)

• Communication

  2 Relays

• Certificates / Approvals

  ATEX, IEC Ex, FM, CSA, TIIS

• Safety approvals

  Overfill protection WHG

• Measuring principle

  Capacitive Solid

• Characteristic / Application

  Transmitter with intrinsically safe signal
  Calibrating using operating keys
  adjustable operating delay
  2-wire PFM
  3-wire
  Rail mounting:
  Wide: 45mm (PFM
  )Wide: 22,5 mm
  With adjustable hysteresis

• Specialities

  Min / Max - changeover
  Test/correction key (PFM)

• Supply / Communication

  85V ... 253V AC
  20V ... 60V DC

• Ambient temperature

  -20 °C ... 50 °C Serial montage
  (-4 °F ... 122 °F)

• Communication

  2 Relays

• Certificates / Approvals

  ATEX, IEC Ex, FM, CSA, TIIS

• Safety approvals

  Overfill protection WHG

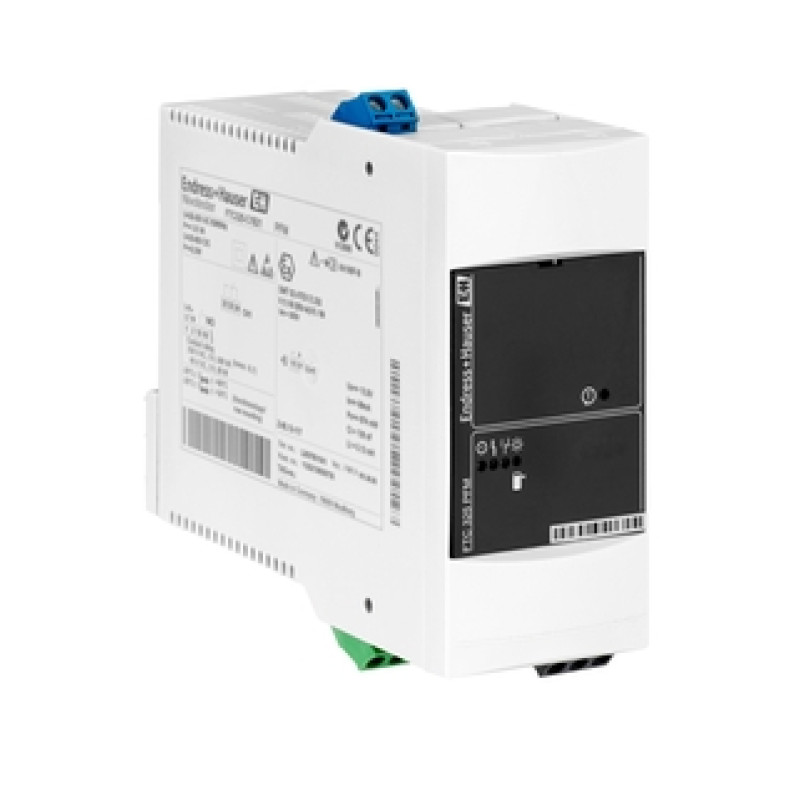

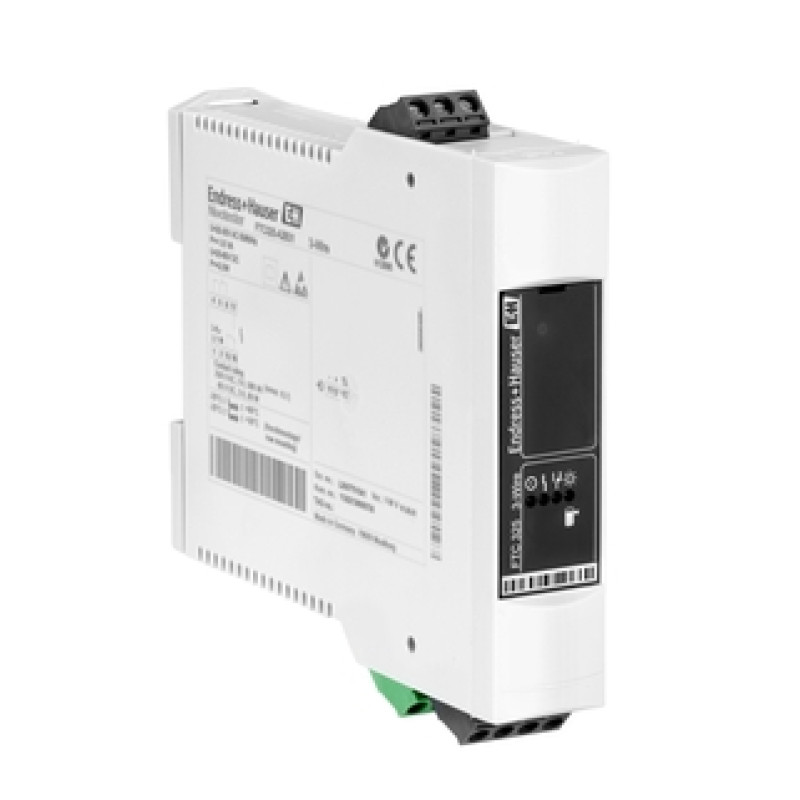

The Nivotester FTC325 is a point level switch with intrinsically safe signal circuit for connection to a capacitance sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water and dry running protection for pumps.

• Two-point control (Δs with 3-WIRE)

• Ambient temperature: -20 to +50°C (-4 to +122°F)

• International explosion protection certificates, overfill prevention WHG

• Highest safety due to intrinsically safe signal circuit EEx ia IIC

• Calibration using operating keys

• High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function

• Compact housing for easy series mounting on a standard DIN rail in the cabinet

• Pluggable terminal blocks make wiring easy

• Point level and alarm relay
