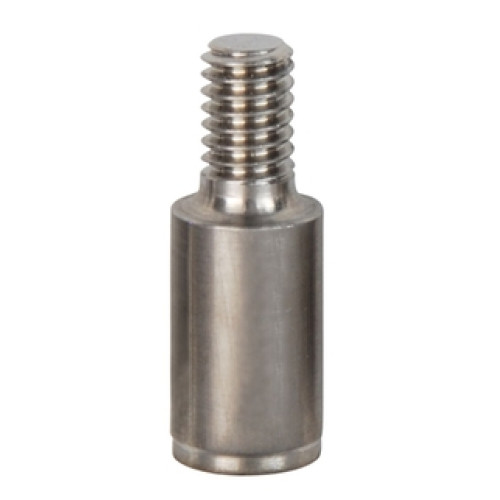

FSG61 Gamma Source Radiometric level, density measurement

PLEASE ASK FOR PRICE!

Gamma radiation source (60Co) for radiometric level, point level, density and interface measurement

• Measuring principle

  Radiometric

• Characteristic / Application

  Source
  Isotope: Cobalt 60
  Half-life: 5.3 years

• Specialities

  Double seal
  Steel: 1.4541 (321 S 18)
  Classification: C66646 ISO 2919

• Ambient temperature

  -20 °C ... 250 °C
  (-4 °F ... 482 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Components

  Installed in source container

The Gamma Source FSG61 is specially suited for level applications with thick tank walls, high pressure or for density applications with big pipe diameters and large density ranges thanks to its high penetration energy.

Radioactive isotopes are used as gamma radiation sources for continuous level, density and interface measurement as well as for point level detection. The radioactive source is mounted in a special source container which affords the necessary protection while providing a defined, practically unattenuated, narrow beam in one direction only.

• Specially constructed source capsule conforms to strictest safety requirements:
  Typically class C66646 to ISO 2919

• Point source in special source container ensures simple handling and easy installation

• Choice of activity ensures optimized dosage for your application

• High penetration energy even for extreme applications
