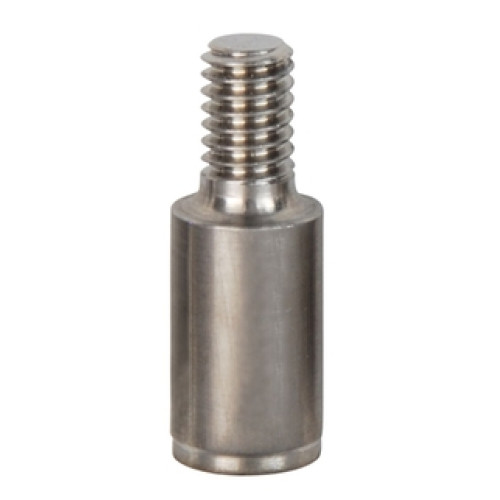

FSG60 Gamma Source Radiometric level, density measurement

PLEASE ASK FOR PRICE!

Gamma radiation source (137Cs) for radiometric level, point level, density and interface measurement

• Measuring principle

  Radiometric

• Characteristic / Application

  Source
  Isotope: Caesium 137
  Half-life: 30 years

• Specialities

  Double seal
  Steel: 1.4541 (321 S 18)
  Classification C66646 ISO 2919

• Ambient temperature

  -20°C ... +250 °C
  (-4°F ... 482 °F)

• Process pressure / max. overpressure limit

  Any

• Pressure measuring range

  Any

• Components

  Installed in source container

The Gamma Source FSG60 has a very long lifetime thanks to its long half-life time. Common used standard isotope in the industrial process measurement.

Radioactive isotopes are used as gamma radiation sources for continuous level, density and interface measurement as well as for point level detection. The radioactive source is mounted in a special source container which affords the necessary protection while providing a defined, practically unattenuated, narrow beam in one direction only.

• Specially constructed source capsule conforms to strictest safety requirements:
  Typically class C66646 to ISO 2919

• Point source in special source container ensures simple handling and easy installation

• Choice of activity ensures optimized dosage for your application

• High cost-effectiveness due to long half-life time
