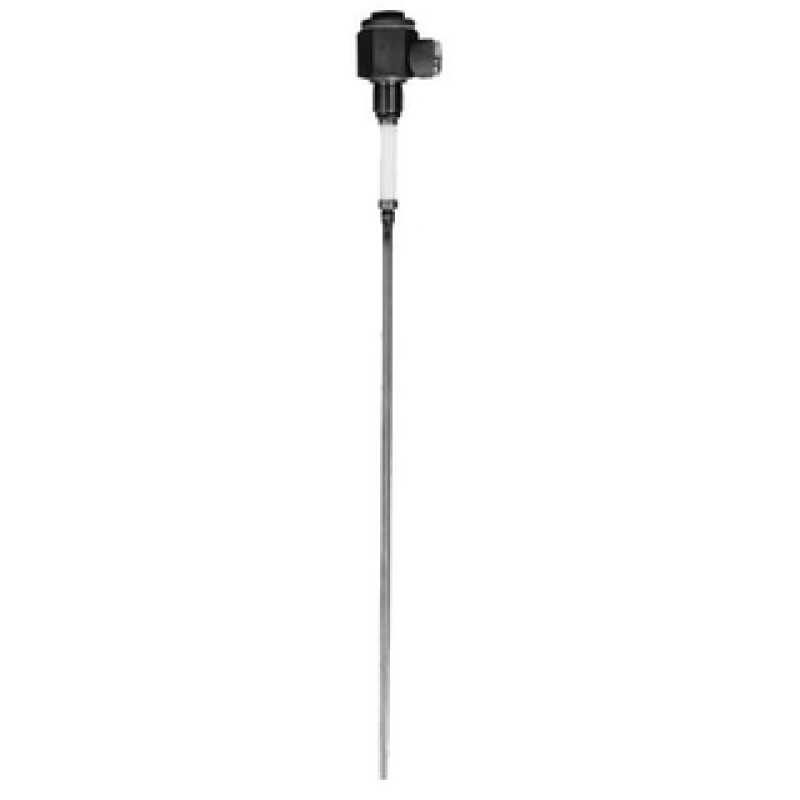

11961Z One rod probe Conductive Point level detection

High resistance point level detection of conductive liquids steam boilers and aggressive media

Previous: One rod probe 11961ZF, One rod probe 11961

• Measuring principle

  Conductive

• Characteristic / Application

  One rod probe for high and extremely low temperature and high pressure. Corrosion resistant

• Supply / Communication

  Relay
  PFM

• Ambient temperature

  -200 °C ... 250 °C
  (-328 °F ... 482 °F)

• Process temperature

  -200 °C ... 250 °C
  (-328 °F ... 482 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 160 bar
  (Vacuum ... 2320 psi)

• Min. conductivity of medium

  20 µS/cm

• Main wetted parts

  Ceramic, 316TI

• Process connection

  G 1/2

• Sensor length

  0.1m ... 2m
  (3.9" ... 79")

• Communication

  Relay

• Components

  Transmitter: FTW325

• Application limits

  Observe min. medium conductivity

The 11961Z is a highly resistant probe for applications with aggressive medium thanks to corrosion-resistant materials for rod and insulation. It can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water.

For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0, or pump protection in pipes and two-point control.

• Process connection: Thread

• Measuring range: 100 to 2,000mm (5.9 to 78.7")

• Temperature: -200 to +250°C (-328 to 482°F)

• Pressure: -1 to +160bar (-15 to +2,320psi)

• Components: Transmitter FTW325

• International explosion protection certificates, overfill prevention WHG

• Safe and reliable measurement even in aggressive medium thanks to corrosion-resistant materials for rod and insulation

• Can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water

• Can be deployed particularly with high pressure or vacuum

• Probe can be shortened as required
