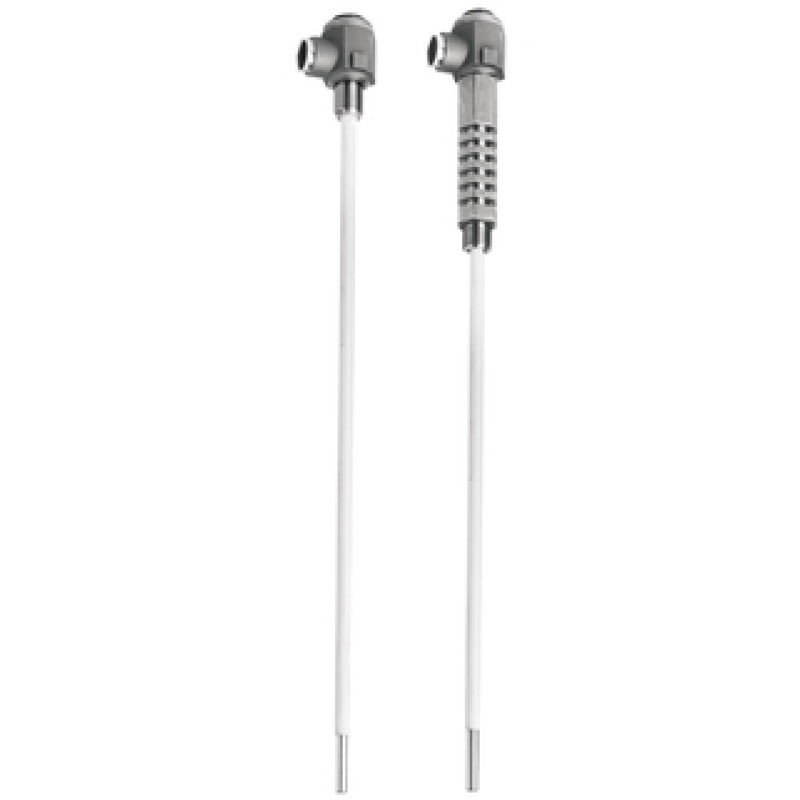

11375Z One rod probe Conductive Point level detection

Simple point level detection of conductive liquids with higher temperatures

Previous: One rod probe 11375ZF, One rod probe 11375

• Measuring principle

  Conductive

• Characteristic / Application

  One rod probe for high temperature and high pressure. corrosion resistant

• Supply / Communication

  Relay

• Ambient temperature

  -40 °C ... 80 °C
  (-40 °F ... 176 °F)

• Process temperature

  -40 °C ... 135 °C
  (-40 °F ... 275 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 50 bar
  (Vacuum ... 725 psi)

• Min. conductivity of medium

  20 µS/cm

• Main wetted parts

  PTFE, 316TI

• Process connection

  G1/2

• Sensor length

  0.05m ... 2m
  (2" ... 79")

• Communication

  Relay

• Certificates / Approvals

  ATEX

• Components

  Transmitter: FTW325

• Application limits

  observe min. medium conductivity

The 11375Z is a cost-effective and reliable solution for conductive point level detection in process or storage tanks for all kinds of liquids.

For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0 or as pump protection in pipes and two-point control.

• Process connection: Thread

• Measuring range: 50 to 2,000mm (1.9 to 78.7")

• Temperature: -40 to +200°C (-40 to 392°F)

• Pressure: -1 to +50bar (-15 to +725psi )

• Components: Transmitter FTW325

• International explosion protection certificates, overfill prevention WHG

• Long operating life and reliable function without wear since no moving parts in the tank

• Cost-effective probe for conductive liquid

• Probe can be shortened as required

• Cooling adapter for higher fluid temperatures, as of 100°C
