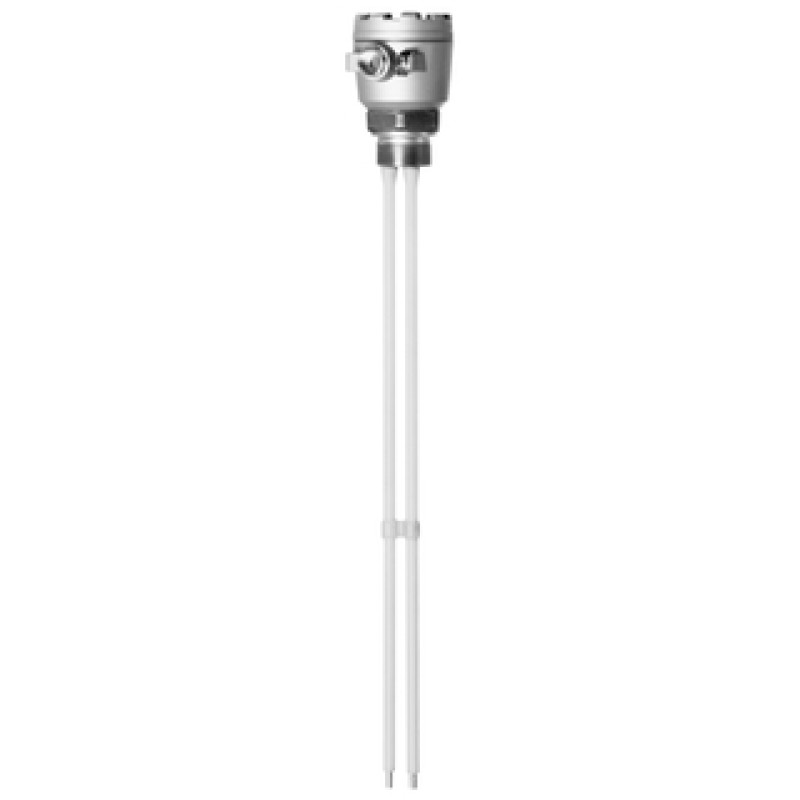

11362Z Double rod probe Conductive Point level detection

High resistant probes for corrosive liquids in plastic vessels

Previous: 11362

• Measuring principle

  Conductive

• Characteristic / Application

  Double rod probe with high-class media contacting wetted parts

• Supply / Communication

  Relay

• Ambient temperature

  -20 °C ... 80 °C
  (-4 °F ... 176 °F)

• Process temperature

  -40 °C ... 150 °C
  (-40 °F ... 302 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 30 bar
  (Vacuum ... 435 psi)

• Min. conductivity of medium

  20 µS/cm

• Main wetted parts

  PTFE, PFA, 316 TI, Alloy B/C4, Titan, Tantal, Monel

• Process connection

  G 1 1/2A
  NPT1 1/2"
  Flange DIN /ASME

• Sensor length

  0.1m ... 4m
  (4ft ... 157ft)

• Communication

  Relay

• Certificates / Approvals

  ATEX, NEPSI

• Components

  Transmitter: FTW325

• Application limits

  Observe min medium conductivity

The 11362Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. The two-point control can be carried out in vessels with electrically conducting walls.

For vessels made of plastic or non-conducting material. For applications in explosion hazardous areas, in waste water plants, which are sometimes regarded as Zone 0 or as overfill prevention for water-polluting liquids.

• Process connections: Threads and flanges

• Measuring range: 100 to 4,000mm (5.9 to 157")

• Temperature: -50 to +150°C (-58 to +302°F)

• Pressure: -1 to +30bar (-15 to +435psi)

• Components: Transmitter FTW325

• International explosion protection certificates, overfill prevention WHG

• Reliable and safe measurement

• Safe measurement even for applications in explosion hazardous area

• Variable process connections for various applications
