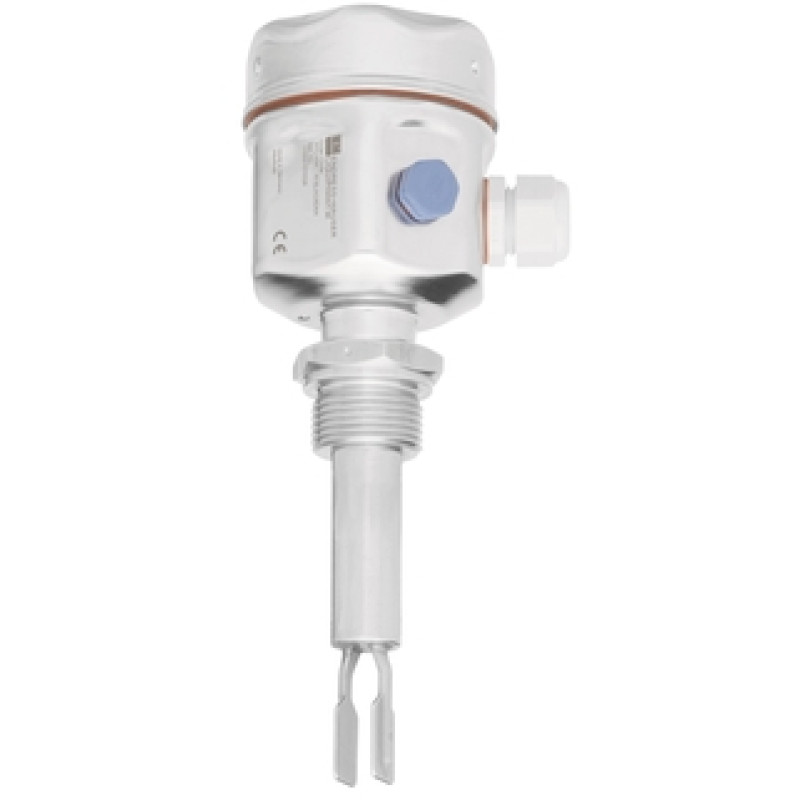

FTL51H Liquiphant Vibronic Point level detection

Point level switch with extension tube for liquids especially in the food and life sciences industry

Previous: CS1103, CS1113, CS1203, CS1213, CS1603, CS1613, Liquiphant FTL330H, Liquiphant FTL330L, FTL360, FTL361, FDL30, FDL31, FTL365, FTL366, FDL35, FDL36

• Process temperature

  -50 °C...+150 °C
  (-58 °F...+302 °F)

• Process pressure / max. overpressure limit

  Vacuum...64 bar
  (Vacuum...928 psi)

• Min. density of medium

  0.5g/cm³ (0.4g/cm³ optional)

Liquiphant FTL51H is a point level switch with extension tube for use in hazardous areas with all international certificates. Especially useable in the food and life sciences industry with hygienic certificates (3-A, EHEDG, ASME BPE). FTL51H offers functional safety SIL2/SIL3. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Point level switch for all liquids with electro-polished surface finishing.

• Process connections: Threads, flanges and hygienic process connection (Tri-Clamp, dairy coupling, aseptic, DRD, SMS, Varivent)

• Temperature: -50 to +150°C (-58 to +302°F)

• Pressure: -1 to +64bar (-14.5 to +928psi)

• Sensor material: 316L

• International explosion protection certificates, overfill protection WHG, SIL, hygienic certificates, marine approvals

• International hygienic certificates (3-A, EHEDG, ASME BPE). FDA-conformed material

• Electro-polished and passivated surface finishing

• International explosion protection certificates and overfill protection certificate (WHG)

• No mechanically moving parts: no maintenance, no wear, long operating life.
  Monitoring of fork for damage: guaranteed function

• Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
  IEC 61508/IEC 61511-1

• No calibration required, easy to start up

• Variety of standardized hygienic process connections for hygiene sensitive applications
