FQG66 Source Container Radiometric Level and density

Radiation source container with sliding source support rod for manual or pneumatic on/off switching

Previous: Source container QG2000

Continuous Liquids

• Measuring principle

  Radiometric

• Characteristic / Application

  Source container
  Emission angle: 40 / 20 degrees
  435kg

• Specialities

  Sliding source support rod for manual or pneumatic on/ off switching

• Ambient temperature

  -55 °C...+100 °C
  (-67 °F...+212 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Main wetted parts

  Non-contact

• Process connection

  Non-contact

Continuous Solids

• Measuring principle

  Radiometric

• Characteristic / Application

  Source container
  Emission angle: 40 / 20 degrees
  435kg

• Specialities

  Control area calculation with Applicator

• Ambient temperature

  -55 °C...+100 °C
  (-67 °F...+212 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Main wetted parts

  Non-contact

• Process connection

  Non-contact

Point Levet Liquids

• Measuring principle

  Radiometric Limit

• Characteristic / Application

  Source container
  Emission angle: 5 degrees
  Approximately 435 kg

• Specialities

  Control area calculation with Applicator

• Ambient temperature

  -55 °C ... +100 °C
  (-67 °F ...+212 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Main wetted parts

  Non- contact

• Process connection

  Non- contact

• Process connection hygienic

  Non- contact

Point Levet Solids

• Measuring principle

  Radiometric Limit

• Characteristic / Application

  Source container
  Emission angle: 5 degrees
  435kg

• Specialities

  Control area calculation with Applicator

• Ambient temperature

  -55 °C...+100 °C
  (-67 °F...+212 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Main wetted parts

  Non- contact

• Process connection

  Non- contact

• Process connection hygienic

  Non- contact

Density

• Measuring principle

  Radiometric Density

• Characteristic / Application

  Source container
  Emission angle: 5/ 20 / 40 degrees
  435kg

• Ambient temperature

  -55 °C...+100 °C
  (-67 °F...+212 °F)

• Process temperature

  Any

• Process pressure

  Any

• Wetted parts

  Non-contact

• Hygienic

  Non-contact

• Specialities

  Control area calculation with Applicator

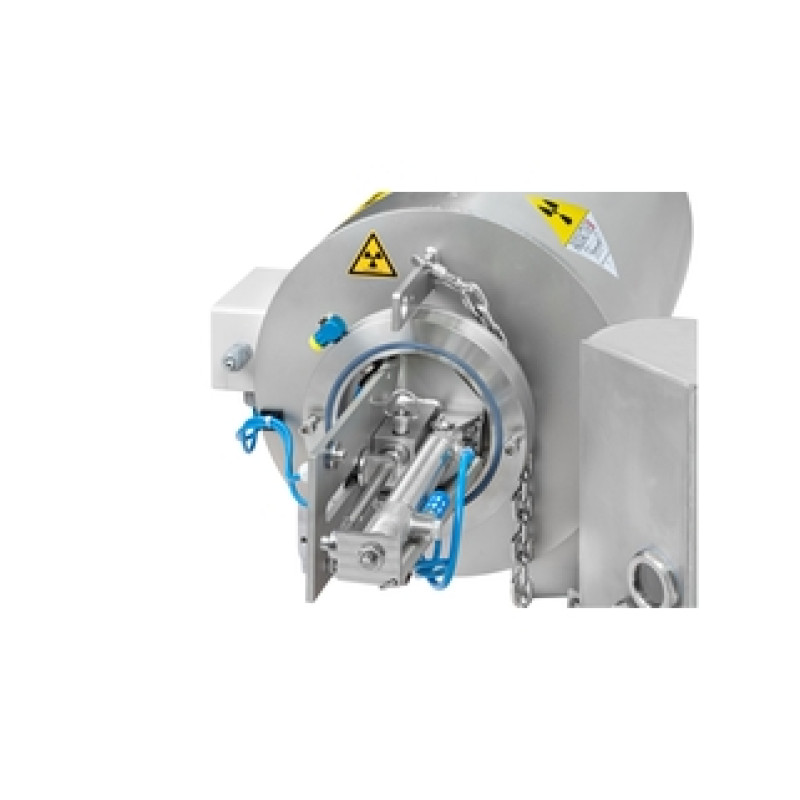

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Encloses the radioactive source used for radiometric point level detection, level and density measurement. Operating with very high sensitivity rod scintillation detectors, provide lowest possible radiation loads in the surrounding.

• Used if the shielding effectiveness of smaller source containers (FQG61/62) are too low

• Activity: 137Cs 740GBq (20,000mCi), 60Co to 185GBq (5,000mCi)

• Process temperature: No limitation (extraneous)

• Process pressure: No limitation (extraneous)

• High safety level thanks to highest safety classification for the source supplied
  (DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacement

• Extremely high shielding ensures that no control areas are generally required and that installation in accessed areas is possible

• Additional metallic protective capsule with O-ring seal to protect the source against mechanical and chemical influences

• Low space requirement and simple mounting and various angles of emission for optimum adaption to the application

• Padlock for fixation the on/off switch position and to protect against theft

• Easy identification of switch status through sight glasses on the cover or by remote display with proximity switches
