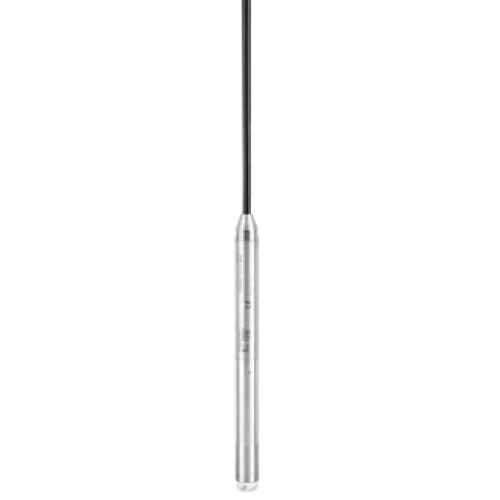

FMX21 Waterpilot Hydrostatic Level measurement

Reliable and robust level probe with ceramic measuring cell and HART

Previous: Waterpilot FMX167

• Accuracy

  0.2%
  0.1% (optional)

• Process temperature

  -10°C...70°C
  (14°F...158°F)
  Diameter 29 mm (1.14"): 0°C...50°C
  (32°F...122°F)

• Pressure measuring range

  100 mbar...20 bar
  (1.5 psi...300 psi)

• Main wetted parts

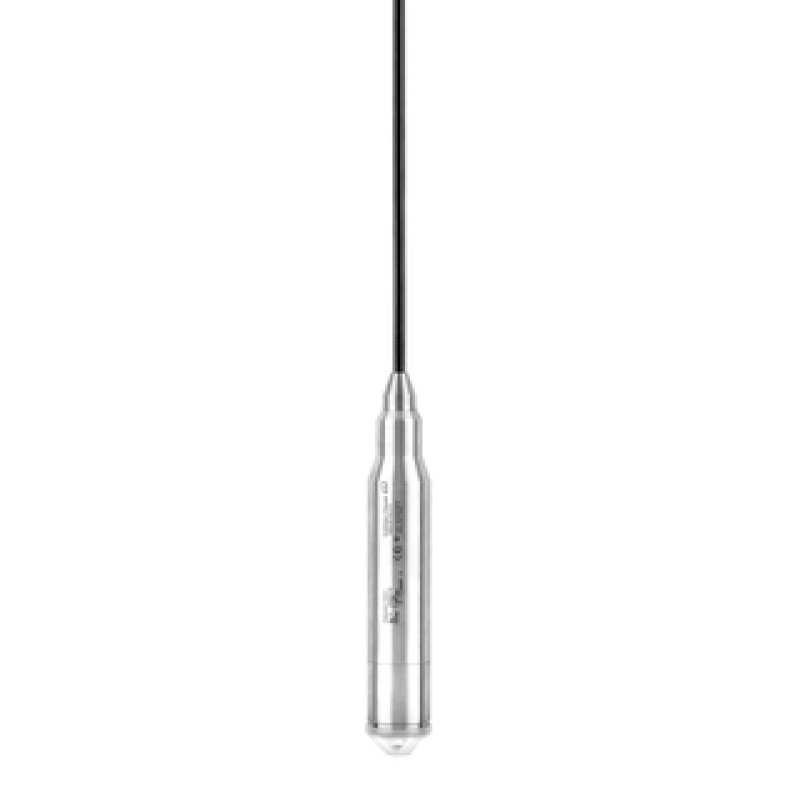

  Diameter 22 mm and 42 mm: Seal, 316L, Ceramic

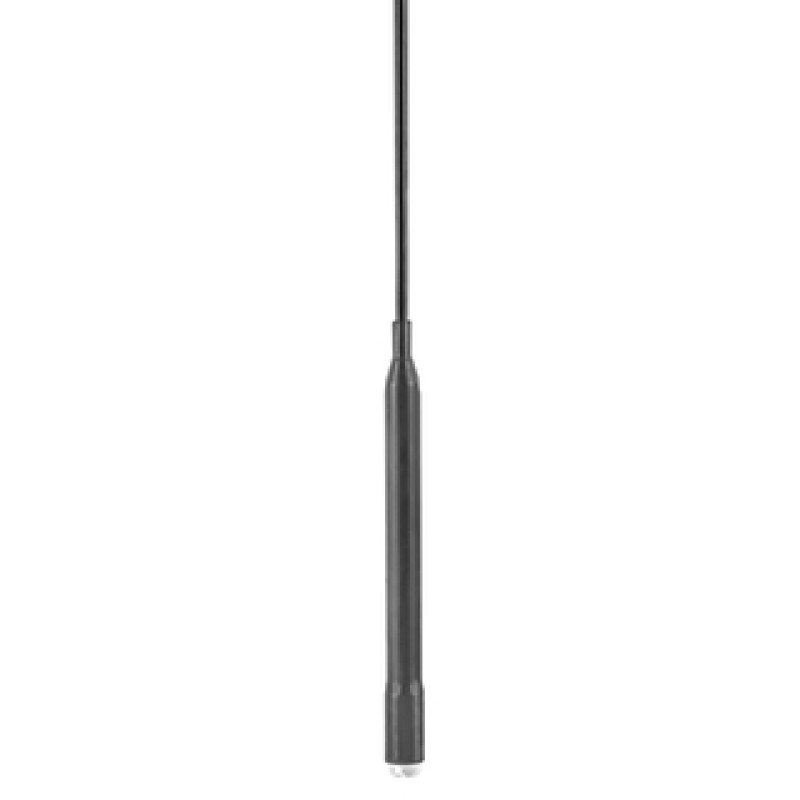

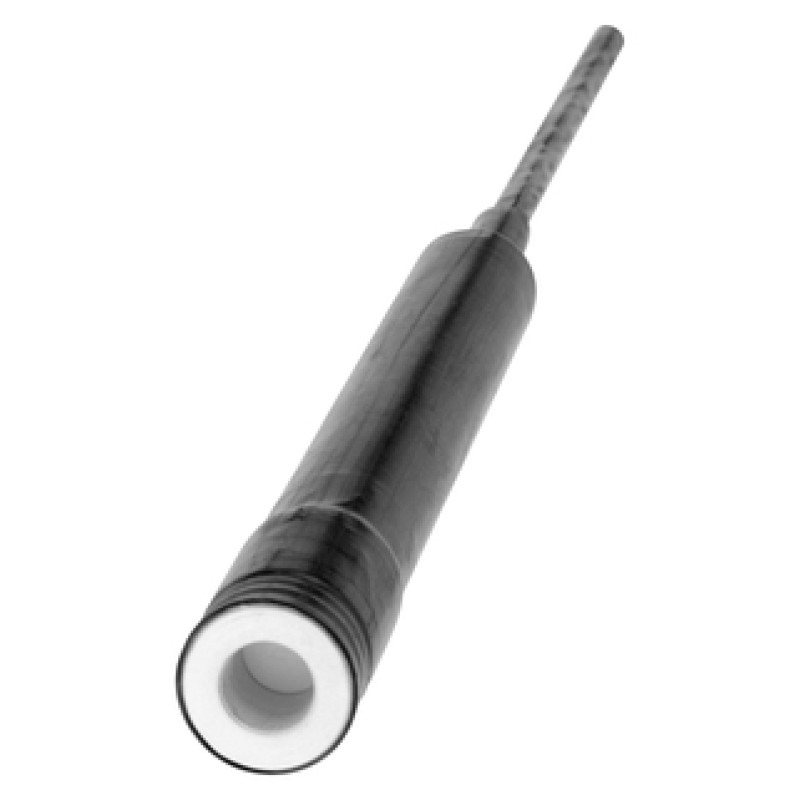

  Diameter 29 mm: Seal, PPS, Polyolefin, Ceramic
  Extension cable: PE, PUR, FEP

• Max. measurement distance

  200 m H2O
  (656 ft H2O)

• Measuring cell

  100mbar...20bar
  (1.5psi...300psi)

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.

Three different versions for drinking water, wastewater and sewage, saltwater.

• Process connections: Suspension clamp, cable gland

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 20bar / 200m H₂0 (0 to 300psi / 600ft H₂O)

• Accuracy: ±0.2%, "Platinum" ±0.1%

• International explosion protection certificates, marine approvals, drinking water approval

• Robust overload-resistant high purity ceramic sensor (99.9% Al₂O₃)

• Flexible scaling of 4 to 20mA with superimposed HART 6.0 output

• Highest level accuracy using temperature compensated density correction

• Simultaneous measurement of level and temperature with optionally integrated Pt100 temperature sensor

• Extensive range of accessories provides complete measuring point solutions

• Climate proofed sensor thanks to completely potted electronics and 2-filter pressure compensation system

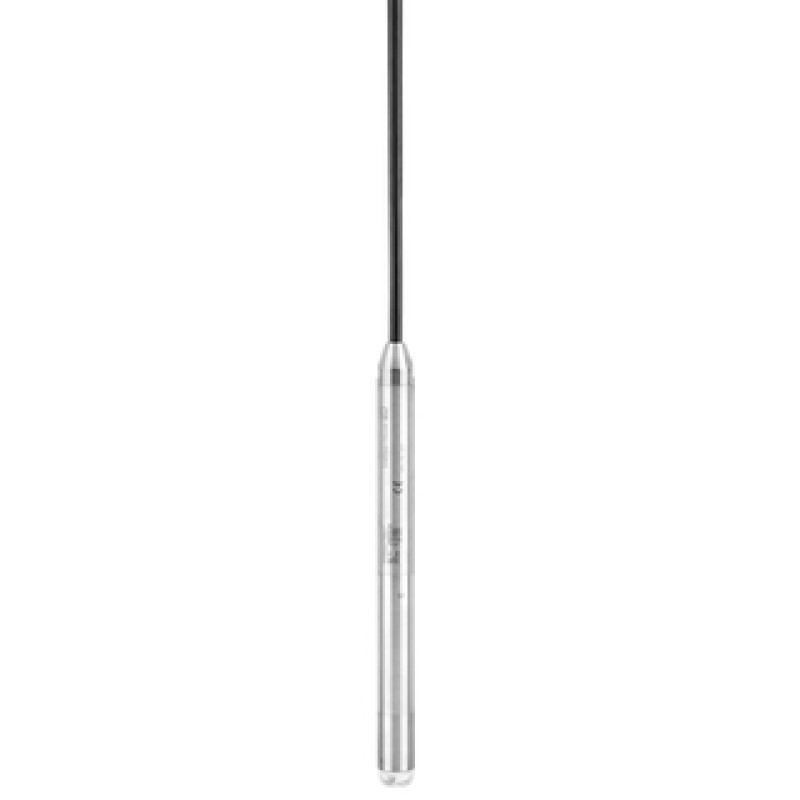

• Small outer diameter of 22mm (0.87") version suitable for drinking water applications and for use in bore holes and wells with small diameters
