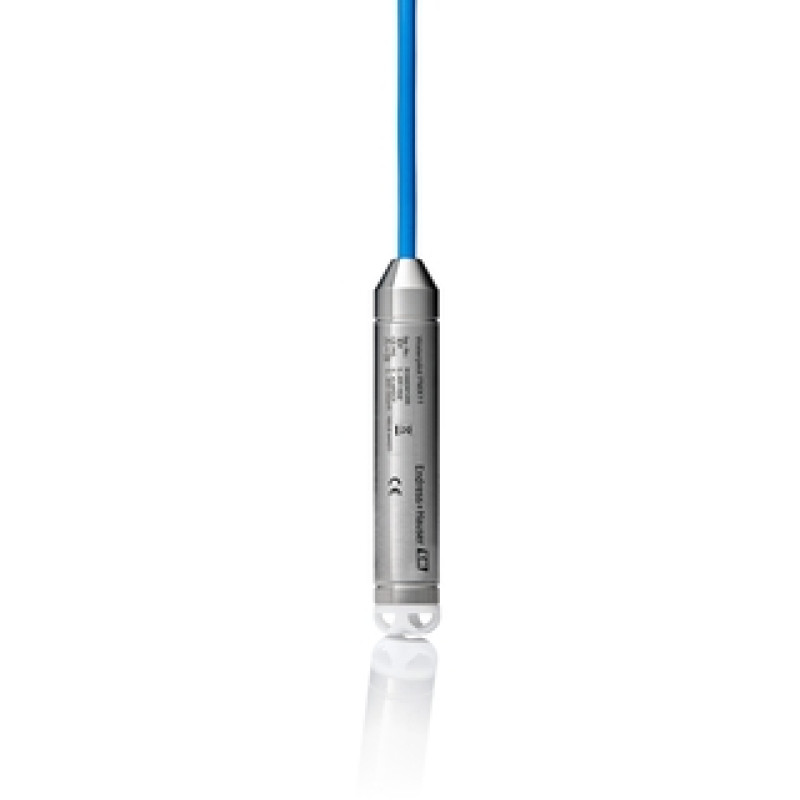

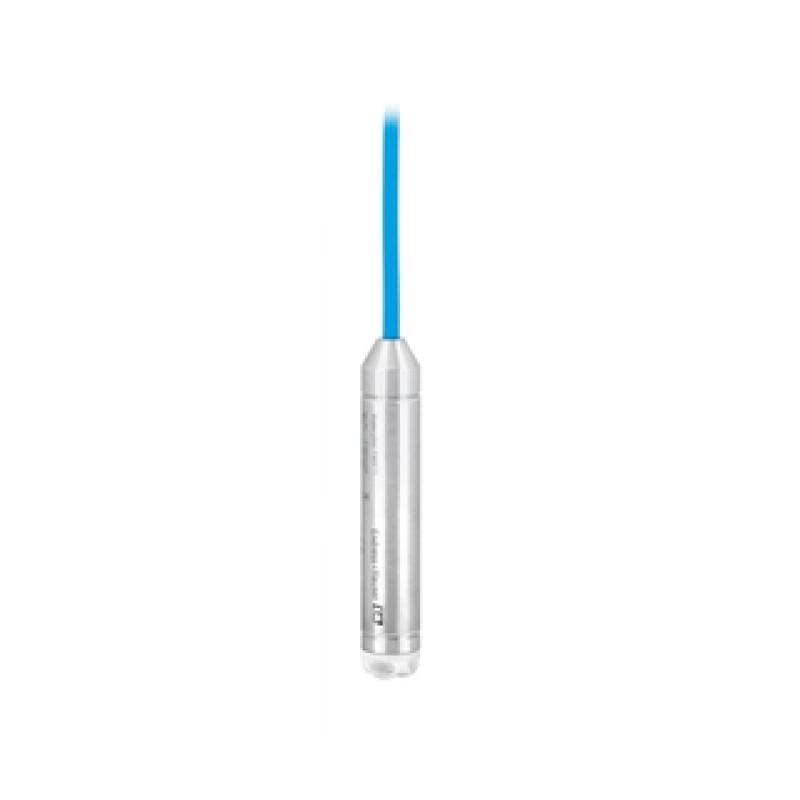

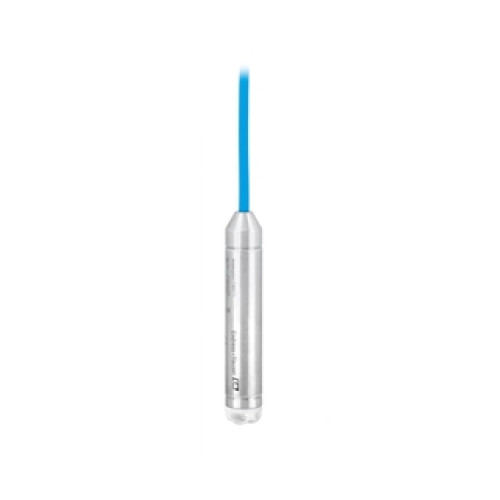

FMX11 Waterpilot Hydrostatic Level measurement

Simple and reliable level probe for freshwater applications

• Accuracy

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• Process temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Pressure measuring range

  200 mbar...2 bar
  (3 psi...29 psi)

• Process pressure / max. overpressure limit

  10 bar (145 psi)

• Main wetted parts

  316L

• Max. measurement distance

  20 m H2O
  (66 ft H2O)

• Material process membrane

  Metal

• Measuring cell

  200 mbar...2 bar
  (3 psi...29 psi)

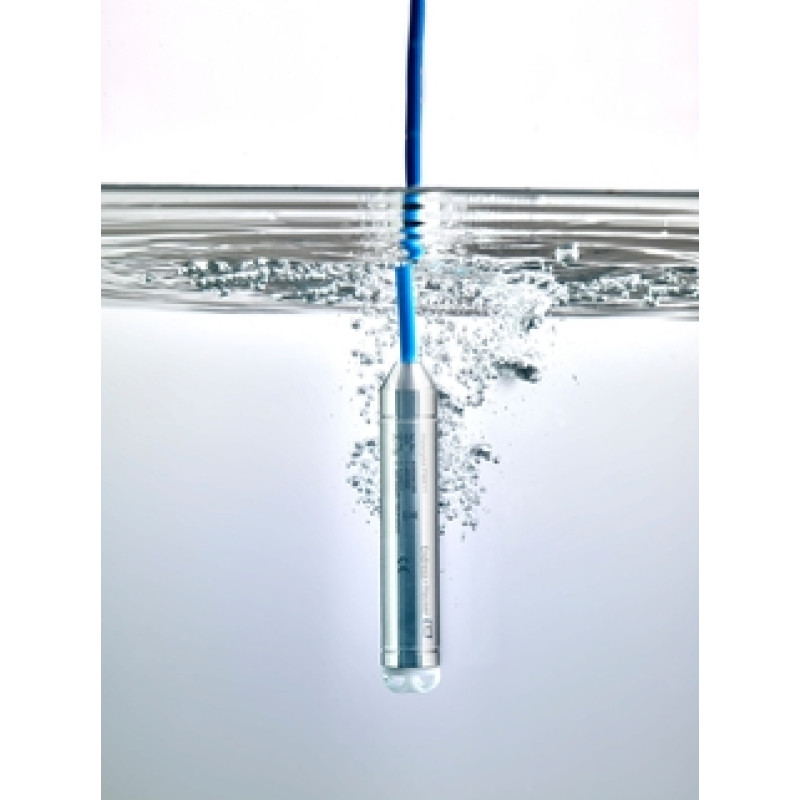

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

• Temperature: –10 to +70°C (14 to 158°F)

• Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H₂O)

• Cable length: 6 to 30m

• Accuracy: up to ±0.35%

• Drinking water approvals: ACS, KTW, NSF61, DVGW

• Certifications: cULus

• Simple and reliable transmitter for various drinking water applications

• Easy installation, commissioning and operation

• Orderable with flexible measuring ranges and cable lengths tailored to fit your application

• Robust construction for durable long-term services

• Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations

• Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.

• Simple specification and ordering
