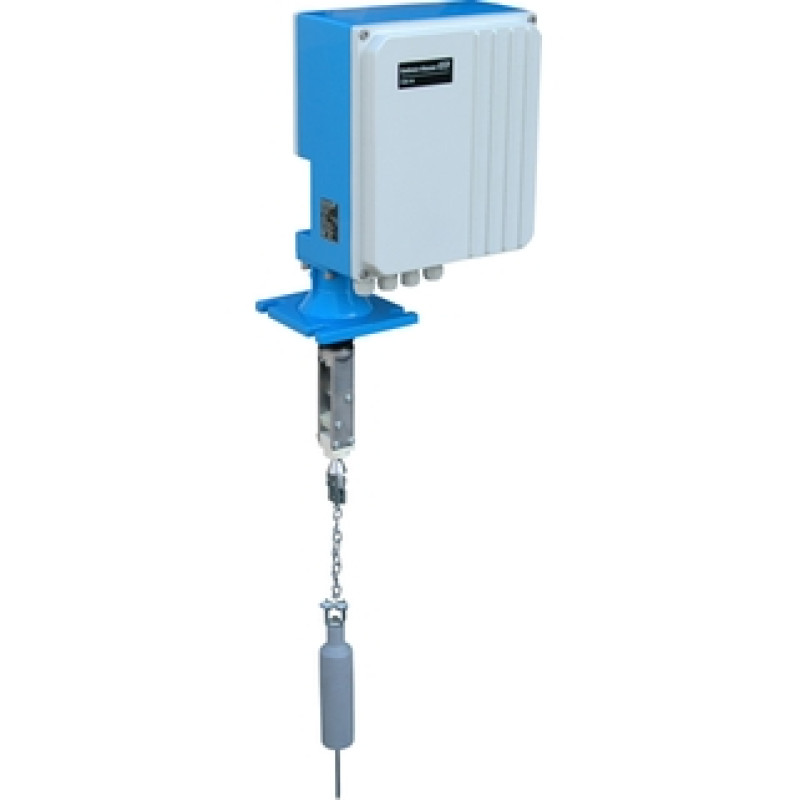

FMM50 Silopilot Electromechanical Level measurement

For continuous level measurement even in high bulk solids silos or bins

Previous: Silopilot FMM760, FMM760Z

• Measuring principle

  Electromechanical

• Characteristic / Application

  Not affected by characteristics of solid medium
  Mesuring range: 70m

• Specialities

  Switch to indicate need of maintenance (predictive maintenance)

• Supply / Communication

  180 ... 253 V, 50/60 Hz

• Accuracy

  +/- 5 cm

• Ambient temperature

  -40°C ... +70°C
  (-40°F ... 158°F)

• Process temperature

  -20°C ... +230°C
  (-4°F ... 446°F)

• Process pressure / max. overpressure limit

  0.8 ... 3 bar abs.
  (11.6psi ...43.5psi abs.)

• Main wetted parts

  Aluminium, Steel, Stainless steel

• Process connection

  Flange DN100 PN16 / 4"

• Blocking distance

  Top: 500 mm (20 ")

• Max. measurement distance

  70m (230ft)

• Communication

  0/4...20 mA

• Certificates / Approvals

  ATEX

• Design approvals

  EN10204-3.1

Silopilot FMM50 is an electromechanical level system. Depending on the sensing weight, the level can be measured in bins or silos with dusty, fine-grained or coarse-grained bulk solids or in tanks with liquids.

For level measurement in bunkers or silos for dusty, fine or coarse-grained bulk products, or in tanks containing liquids.

• Process connection: Flange

• Temperature: -40 to +230°C (-40 to +446°F)

• Pressure: 0.8 to 3bar (11.6 to 43.5psi)

• Measuring range: 70m (230ft)

• Accuracy: ±5cm (1.97")

• International explosion protection certificates

• High reliability level measurement of powdery, fine-grained or coarse-grained bulk solids

• Safe measurements in extremely dusty environments

• Fully electronic digital minimum fail-safe control, therefore no running down of the sensor weight into the silo outlet and no risk to the conveying systems

• Quick menu-guided local operation using a 4-line text display

• High performance three-phase engine (traction power up to 500N) using a single-phase supply voltage by employment of a converter, therefore simple electric supply

• Optional design with certification for application in areas subject to dust explosion hazard zones 20, 21 and 22 (measuring zone) or zones 21 and 22 (device zone), category 1/2D
