FMI21 Liquicap Capacitance Level measurement

For continuous level measurement in conductive liquids

Previous: T6667, Double rod probe 11304Z

• Accuracy

  < 1%

• Process temperature

  -40 °C ... 100 °C
  (-40 °F ... 212 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 10 bar
  (Vacuum ... 145 psi)

• Max. measurement distance

  2.5 m (8 ft)

• Main wetted parts

  Probe rods:
  316L/1.4404 / PP
  Option: carbon fibre PP coated

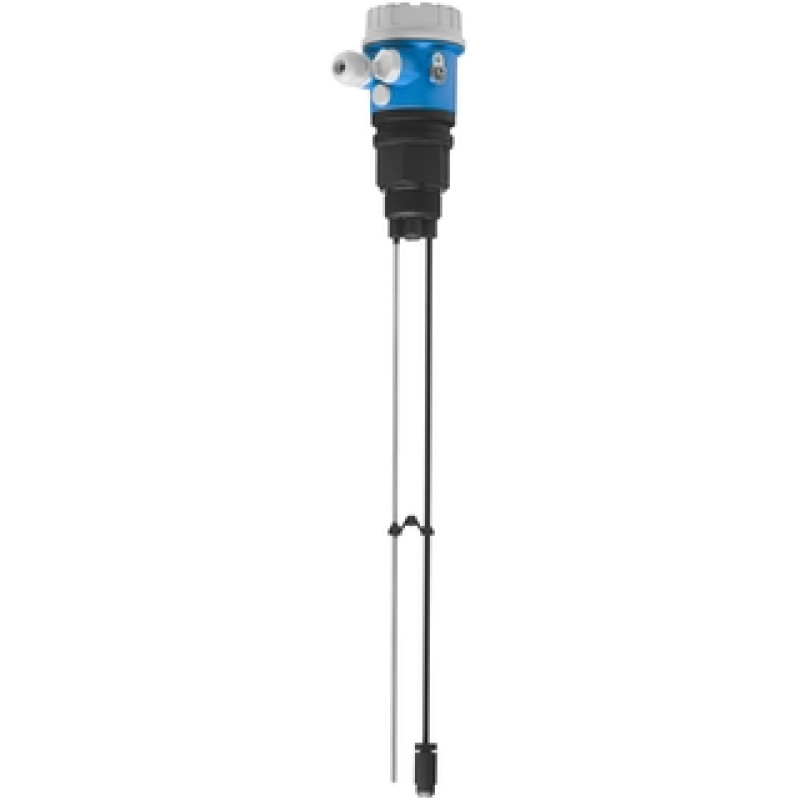

Liquicap FMI21 is a simple and cost-effective rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fibre, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis). Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

The device is preconfigured from factory 0 to 100% to probe length ordered. It can be used as of a conductivity of 30μS/cm and the measurement is independent of the dc-value (dielectric constant) of the liquid. Suited for cistern measurements.

• Process connection: Thread

• Process pressure: Vacuum to 10bar (vacuum to 145psi)

• Measuring range: Up to 2.5m (8ft)

• Temperature: -40 to +100°C (-40 to +212°F)

• International explosion protection certificates, overfill prevention WHG

• Safe and reliable function regardless of tank geometry

• No calibration necessary (factory preconfiguration)

• High quality, non-corrosive materials (carbon fibre, stainless steel) for use in aggressive liquids

• No moving parts in tank

• Cost-effective solution for continuous level measurement

• Optimized storage by simply shortening the probe rods on site
