FTI77 Solicap Capacitance Point level detection

Point level detection for bulk solids, especially for high temperatures and strong mechanical loads

Previous: Transmitter FTC470Z, Transmitter FTC471Z, High temperature probe T12656, High temperature probe T12892, T12899, T13616, T15106

• Measuring principle

  Capacitive Solid

• Characteristic / Application

  Partly isolated sword probe / rope probe for very high temperatures
  High mech. lateral load

• Specialities

  Inactive length
  Active build-up compensation
  High lateral loading
  Extremely robust probe

• Supply / Communication

  19 ... 253V AC
  10 ... 55V DC-PNP
  19...253V AC bzw 10...55V DC
  8/16mA, 11 ... 36V DC
  PFM
  3-wire

• Ambient temperature

  -50°C ... 70°C
  (-58°F ... 158°F)

• Process temperature

  -50°C ... 400°C
  (-58°F ... 752°F)

• Process pressure / max. overpressure limit

  Vacuum ... 10 bar
  (Vacuum ... 145 psi)

• Main wetted parts

  Ceramic, 316L, Steel

• Max. tensile strength

  Rope: 20 kN

• Process connection

  Thread R1 1/2, NPT1 1/2
  Flanges DN/ASME/JIS

• Sensor length

  Rope: 0.5 ... 20m
  (1.6 ... 65ft)
  Sword: 0.2m ... 1m
  (0.6 ... 3.3ft)
  Inactive length: 0.1m ... 1m
  (0.3 ... 3.3ft)

• Communication

  2- wire 19-253 VAC
  DC PNP
  Relais DPDT
  PFM
  3-wire
  8/16 mA

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, EAC

• Safety approvals

  SIL

• Design approvals

  EN 10204-3.1

• Components

  PFM: FTC325, FTC625, FTC470Z, FTC471Z
  3-wire: FTC325

• Application limits

  DK min. 2.5

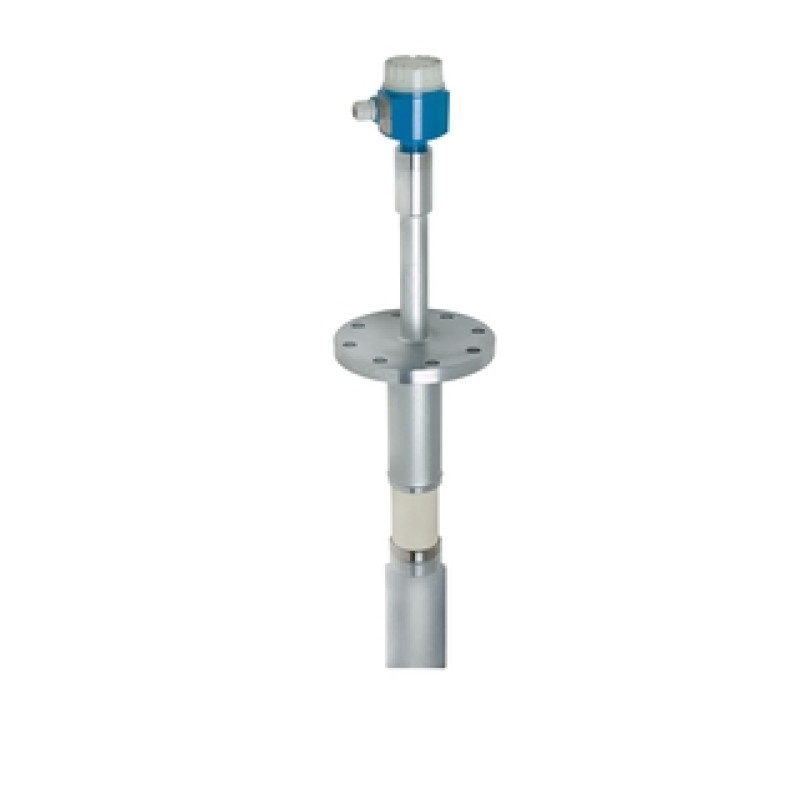

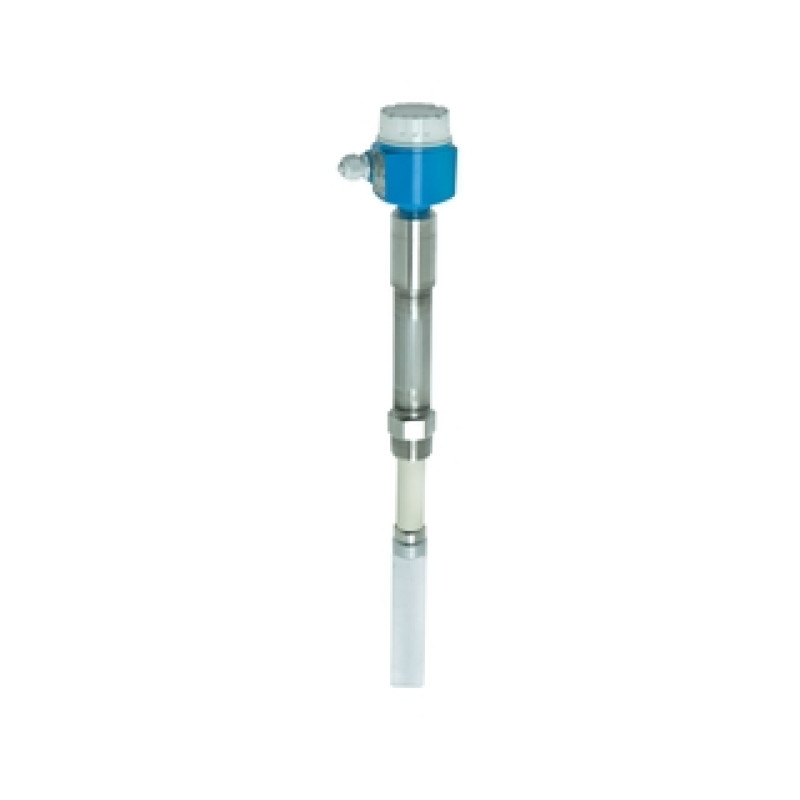

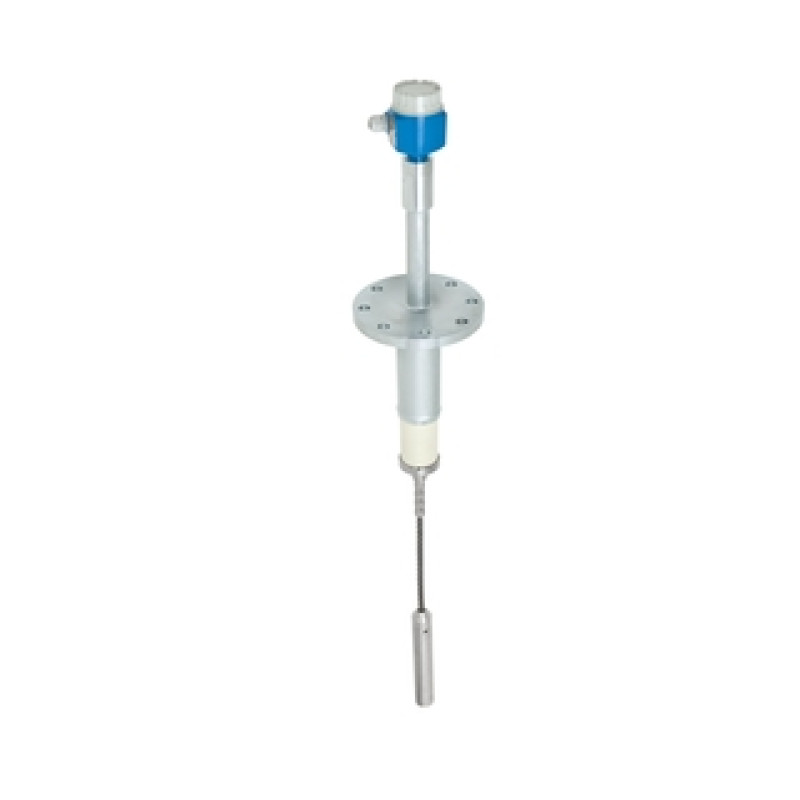

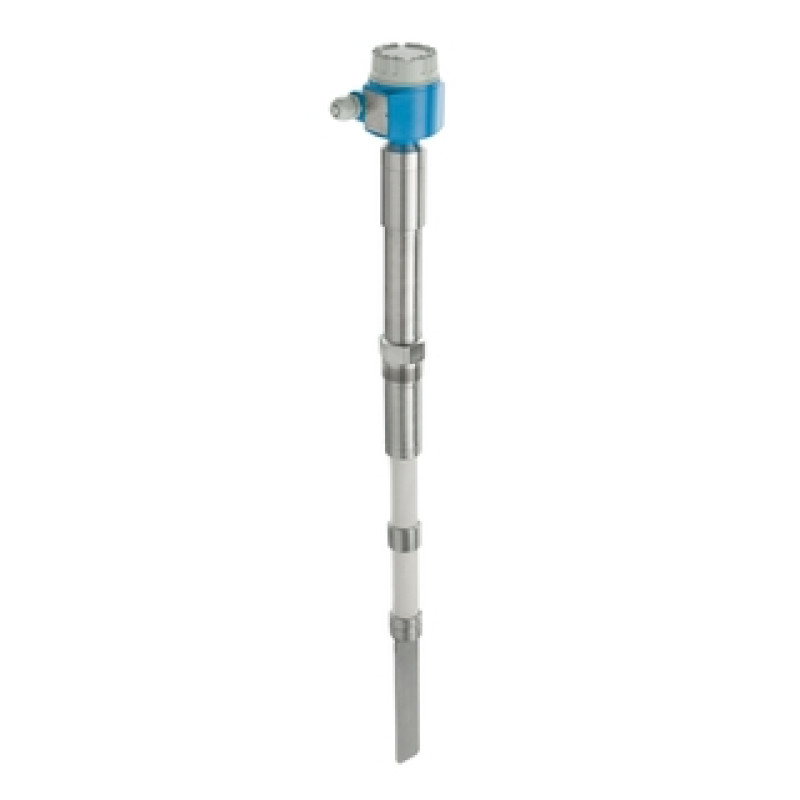

Solicap FTI77 is a partly insulated sword/rope probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used in applications with very high lateral loads (up to 800Nm, sword version), high temperatures and abrasive media.

For applications with very high lateral loads (up to 800Nm for sword version) and in applications with abrasive media.

• Process connections: Flanges and threads

• Measurement range: 200 to 20,000mm (20 to 787")

• Temperature: -50 to +400°C (-58 to +752°F)

• Pressure: -1 to +10bar (-14.5 to +145psi)

• International explosion protection certificates, SIL

• Highest safety and reliability due to extremely robust design for harsh process conditions

• Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

• Cost-effective, reliable and universal application thanks to wide range of certificates and approvals

• Two-stage overvoltage protection against static discharges from the silo

• Active build-up compensation for bulk solids with caking tendency

• Use in safety systems requiring functional safety to SIL2/SIL3

• Reduction in storage costs thanks to easy-to-shorten sword model and rope model
