FTI56 Solicap Capacitance Point level detection

Point level detection for fine-grained to coarse-grained bulk solids

Previous: Transmitter FTC470Z, Transmitter FTC471Z, Solicap M FTC52, Solicap M FTC53, 21211A

• Measuring principle

  Capacitive Solid

• Characteristic / Application

  Fully / partly isulated rope probe for small-grain / large-grain solids
  Simple calibration
  Suitable for abrasive media
  Very robust probe

• Specialities

  Inactive length
  High tensile loading
  Extremely robust probe

• Supply / Communication

  19 ... 253V AC
  10 ... 55V DC-PNP
  19...253V AC bzw 10...55V DC
  8/16mA, 11 ... 36V DC
  PFM
  3-wire

• Ambient temperature

  -50°C ... 70°C
  (-58°F ... 158°F)

• Process temperature

  -50°C ... 180°C
  (-58°F ... 356°F)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar
  (Vacuum ... 362 psi)

• Main wetted parts

  PTFE, PA, 316L, Steel

• Max. tensile strength

  60 kN

• Process connection

  Thread R1 1/2, NPT1 1/2
  Flanges from DN50.../ASME 2".../JIS...

• Sensor length

  0.5m ... 22m
  (1.6ft ... 72ft)
  Inactive length: 0.1m....1m
  (3"...39")

• Communication

  2- wire 19-253 VAC
  DC PNP
  Relais DPDT
  PFM
  3-wire
  8/16 mA

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, JPN Ex, NEPSI

• Safety approvals

  SIL

• Components

  PFM: FTC325, FTC625, FTC470Z, FTC471Z
  3-wire: FTC325

• Application limits

  DK min 2

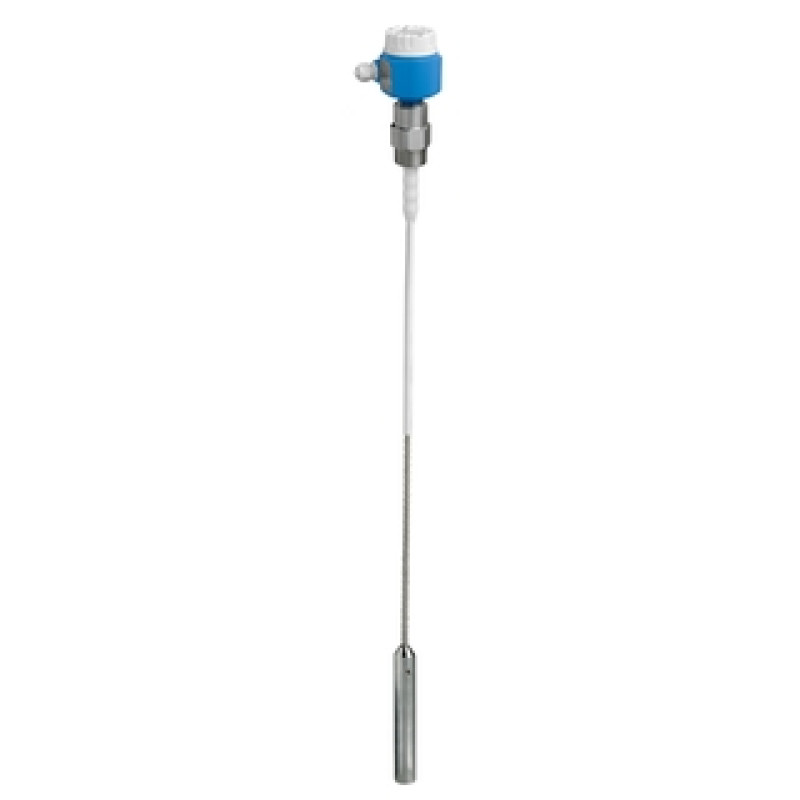

Solicap FTI56 is a fully/partly insulated and robust rope probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high tensile loads up to 60kN.

For applications with very high tensile loads up to 60kN. Fieldgate and Solicap represent a solution for material provisioning and logistical optimization (inventory control).

• Process connections: Flanges and threads

• Measurement range: 500 to 22,000mm (20 to 866")

• Temperature: -50 to +180°C (-58 to +356°F)

• Pressure: -1 to +25bar (-14.5 to +363psi)

• International explosion protection certificates, SIL

• Extremely robust design for harsh process conditions

• Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

• Universal application thanks to wide range of certificates and approvals

• Two-stage overvoltage protection against static discharges from the silo

• Increased safety due to permanent automatic monitoring of electronics

• Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)
