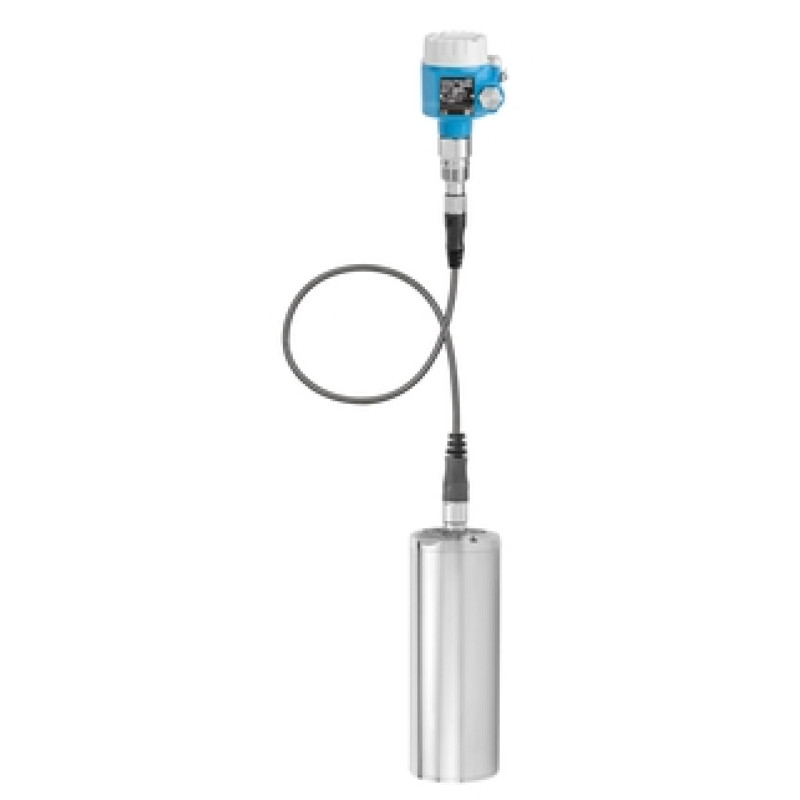

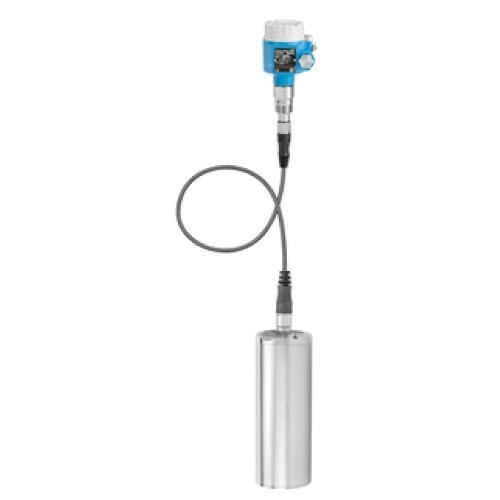

FTG20 Gammapilot Radiometric Point level detection

Geiger-Mueller counter for point level detection with separate transmitter

Previous: GAMMAPILOT FTG470Z

• Measuring principle

  Radiometric Limit

• Characteristic / Application

  Radiometric Transmitter with 1 to 3 Geiger-Müller counters for contactless measurement in liquids, sludge or suspensions under exteme process conditions

• Specialities

  Calculation and sizing with Applicator

• Supply / Communication

  Relay DPDT:
  19...253VAC, 19...55VDC
  8/16mA:
  11...36VDC, 11..30VDC (Exia)

• Ambient temperature

  Relay DPDT:
  19...253VAC, 19...55VDC
  8/16mA:
  11...36VDC, 11..30VDC (Exia)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Min. density of medium

  Any

• Min. conductivity of medium

  Any

• Main wetted parts

  Non-contact

• Process connection

  Non-contact

• Process connection hygienic

  Non-contact

• Sensor length

  140 mm (5.5")

• Communication

  Relay DPDT
  8/16mA
  4...20mA

• Certificates / Approvals

  ATEX, CSA, CSA C/US, IEC Ex, NEPSI, EAC

• Options

  Sensitivity:
  1x Geiger- counter: 1-8uSv/h,
  2x Geiger- counter: 0,5-4uSv/h
  3x Geiger- counter: 0,3-2,7uSv/h
  Cooling jacket
  Transmitter with compartment for conduit

• Components

  Isotope: FSG60, FSG61
  Source container: FQG60, FQG61, FQG62, FQG63, QG2000

The Gammapilot FTG20 is the world’s most advanced Geiger-Mueller counter with highest available sensitivity and outstanding features. Even under extreme process conditions like high pressure, high temperature, corrosiveness, toxicity and abrasion, the radiometric measuring principle can be employed without any problems.

For liquids, solids, suspensions and sludges etc. Particularly for applications under extreme measuring conditions, e.g. high pressure, high temperature, corrosiveness, toxicity, abrasion. All kinds of process vessels, e.g. reactors, autoclaves, separators, acid tanks, mixers, cyclones, cupola furnaces.

• Temperature: No limitation (non-invasive, extraneous)

• Pressure: No limitation (non-invasive, extraneous)

• Switch time: Up to 0.4 seconds

• International explosion protection certificates

• Sensor and transmitter: One instrument for all measuring tasks - can be used universally due to numerous certificates and approvals

• Highest availability, reliability and safety, even for extreme process and ambient conditions

• No recalibration after electronics exchange because of HistoROM data management concept and automatic decay compensation

• Optimum adjustment to the respective application via a variety of sensitivity versions

• Relay, 8/16mA (passive - two-wire loop powered) or 4 to 20mA output for easy system integration

• Aluminum or stainless steel housing for heavy-duty applications

• Easy commissioning and fast, on-site operation
