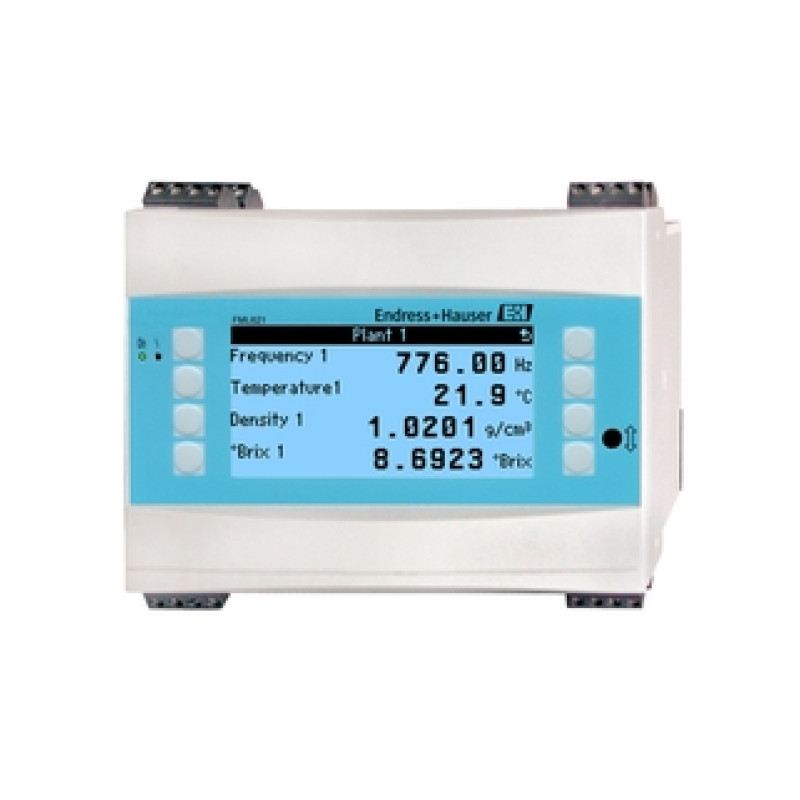

FML621 Density Computer Vibronic measurement

Measurement of density, reference density, concentration of liquids in conjunction with a Liquiphant

• Measuring principle

  Vibration Density

• Characteristic / Application

  Density Computer
  Software offers modules for density,
  reference density, concentration of liquids
  and for a intelligent medium detection

• Supply / Communication

  AC 90-253V
  DC 20-36V

• Ambient temperature

  -20...50°C

• Output

  4-20mA
  Profibus DP
  Ethernet

• Certificates / Approvals

  ATEX
  EAC
  CSA
  IECEx

• Options

  Mathscapabilities for further calculations

• Specialities

  Configuration with ReadWin2000

The density measuring line can be used in all liquid media for medium detection, to calculate the reference density, to calculate the concentration of a liquid, to convert values to different units such as °Brix, °Baumé, °API etc. Additional software modules, such as determining the reference density, intelligent medium differentiation and concentration identification, support the user in monitoring the quality. EEx ia, EEx de and EEx d explosion protection for use in hazardous areas.

Density computer for density, reference density, concentration of liquids.

• Ambient temperature: -20 to +50°C (-4 to +122°F)

• International explosion protection certificates

• Measurement used in tanks and pipes without the need for additional pipework

• Large number of process connections to choose from: universal usage

• Integration of existing temperature measurements for temperature compensation

• No mechanically moving parts: no maintenance, no wear, long operating life

• pump dry-run protector can be provided with the same process connection

• Additional calculations, such as the mass of the product, can be performed in the Density Computer FML621

• The integrated data logger supports users during operation and servicing
