FMI51 Liquicap Capacitance Level measurement

For continuous level and interface measurement in liquids

Previous: Silometer FMC420, T15393, Float Gauge LTC2230, T6667, T10350, Multicap DC11, Multicap DC16, Double rod probe 11304Z, Multicap T DC12TE, Multicap T DC11TEN, Multicap DC16TEN, Multicap DC11AN, Multicap DC11EN, Multicap DC16AN, Multicap DC16EN, Multicap DC11AS, Multicap DC11ES, Multicap DC16AS, Multicap DC16ES, Multicap T DC11TAS, Multicap DC16TAS, Multicap T DC12TA, Multicap T DC11TAN, Multicap DC16TAN, Multicap T DC11TES, Multicap DC16TES

• Accuracy

  Repeatablity 0,1%

• Process temperature

  -80°C...200°C
  -112°F...392°F

• Process pressure / max. overpressure limit

  Vacuum ... 100 bar
  (Vaccum ... 1450 psi)

• Max. measurement distance

  0.1 m ... 4.0 m
  (0.3 ft ... 13 ft)

• Main wetted parts

  Insulation material: PTFE,PFA
  316L

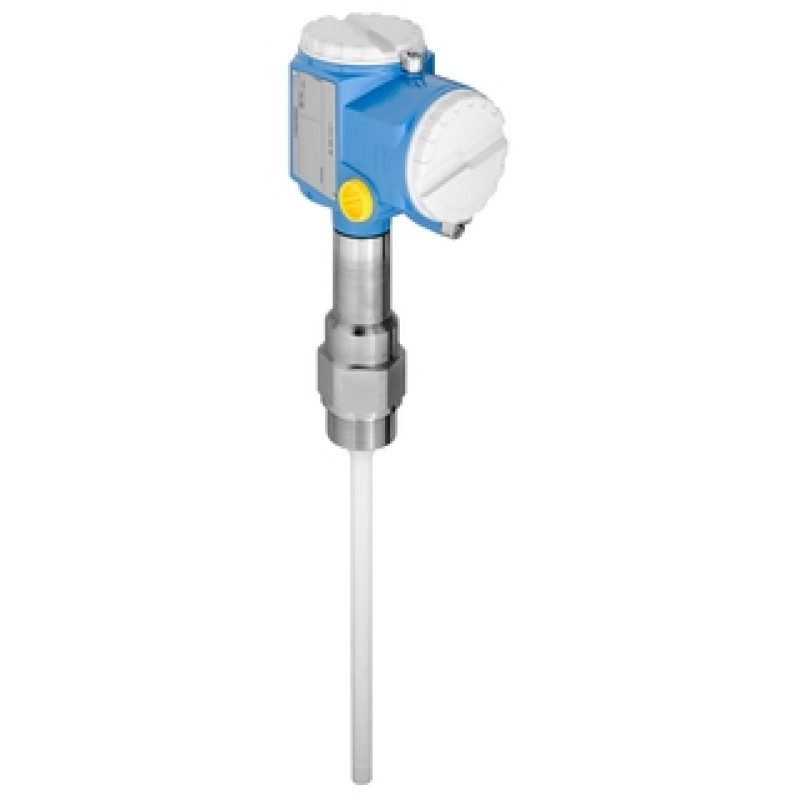

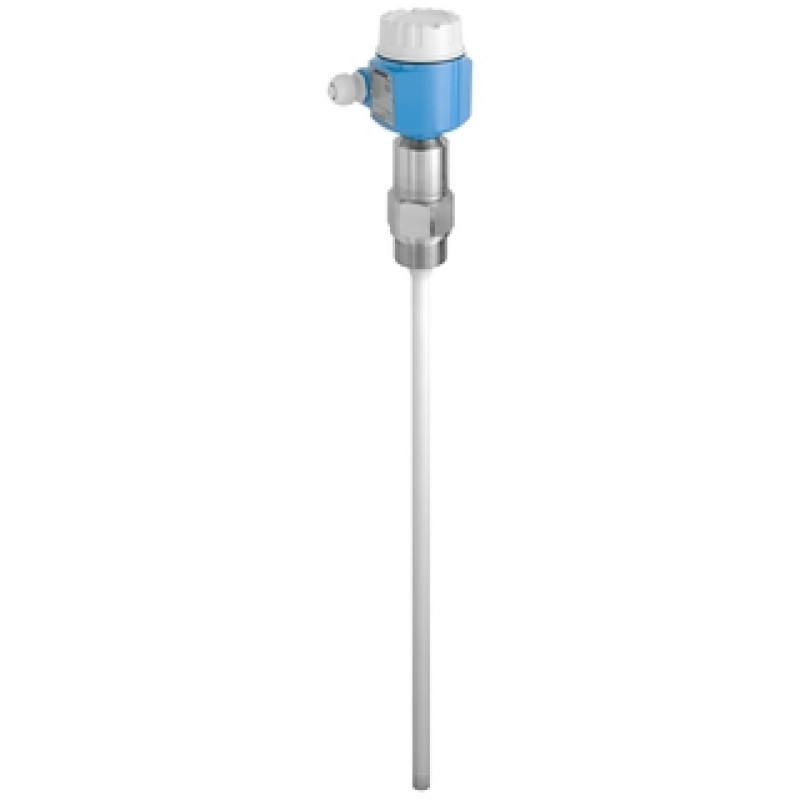

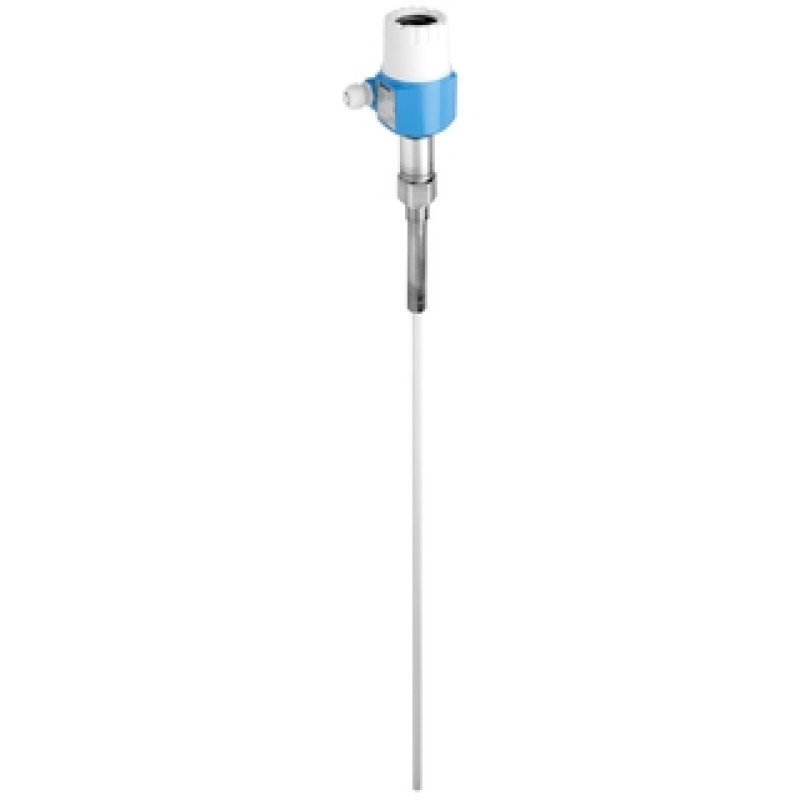

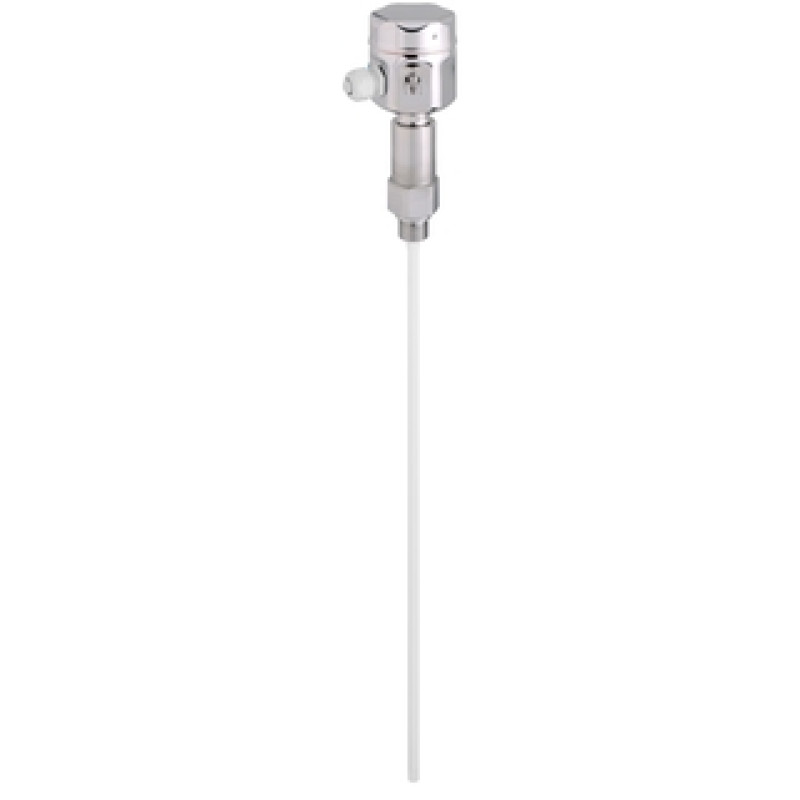

Liquicap FMI51 is a reliable fully insulated rod probe for continuous level monitoring in liquids, particularly in build-up forming media and extremely high temperatures. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

The device is independent of the dielectric constant (dc) as of a liquid conductivity of 100μS/cm and allows measurement of various liquids without the need for recalibration.

• Process connections: Flanges and threads

• Process pressure: Vacuum to +100bar (vacuum to +1,450psi)

• Measuring range: 0.1 to 4.0m (0.3 to 13ft)

• Temperature: -80 to +200°C (-112 to +392°F)

• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

• Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508

• Reliable and universal application thanks to wide range of certificates and approvals

• No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher

• Material in contact with the process made of corrosion-resistant material, FDA-listed materials

• Menu-guided local configuration via plain text display (optional)

• Two-stage overvoltage protection
