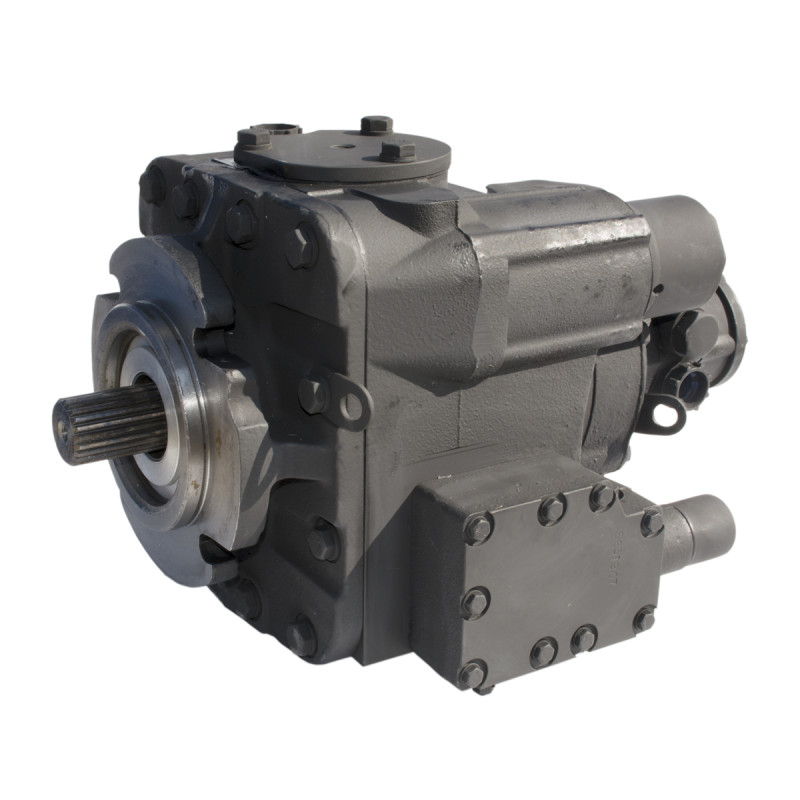

PVH112/MH1R2D1A Variable Displacement Hydraulic Piston Pump - (Right)
- Brand: Hydrosila
- Product Code: PVH112/MH1R2D1A
- Availability: In Stock
- 2,671.20€
2,204.40€
- Ex Tax: 1,837.00€
PVH112/MH1R2D1A is a variable displacement axial piston hydraulic pump designed for demanding high-pressure hydraulic applications. With right-hand rotation, this hydraulic piston pump is suitable for transit mixers, concrete mixer trucks, mobile machinery, and industrial hydraulic systems.
The variable displacement design allows hydraulic flow to be adjusted according to system requirements, providing efficient power transmission and reliable operation in demanding applications.
The PVH112/MH1R2D1A Hydrosila hydraulic piston pump is part of the PVH-MFH series of hydraulic pumps and motors developed for heavy-duty hydraulic systems.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PVH112/MH1R2D1AB1A1ABT |
| Pump Type | Variable Displacement Axial Piston Pump |
| Displacement | 110 cc/rev |
| Rotation | Right Hand |
| Maximum Speed | 3720 rpm |
| Maximum Pressure | 450 bar |
| Application | Transit Mixers, Concrete Mixer Trucks, Industrial Hydraulic Systems |
PVH112/MH1L2D1A/MH1R2D1A-Variable-Displacement-Hydraulic-Piston-Pump.pdf
