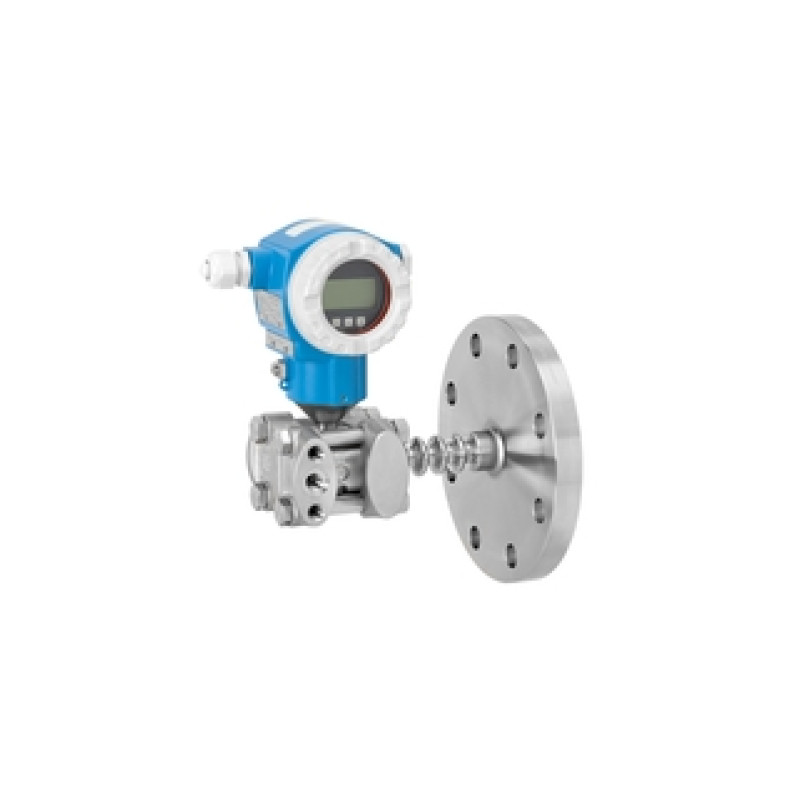

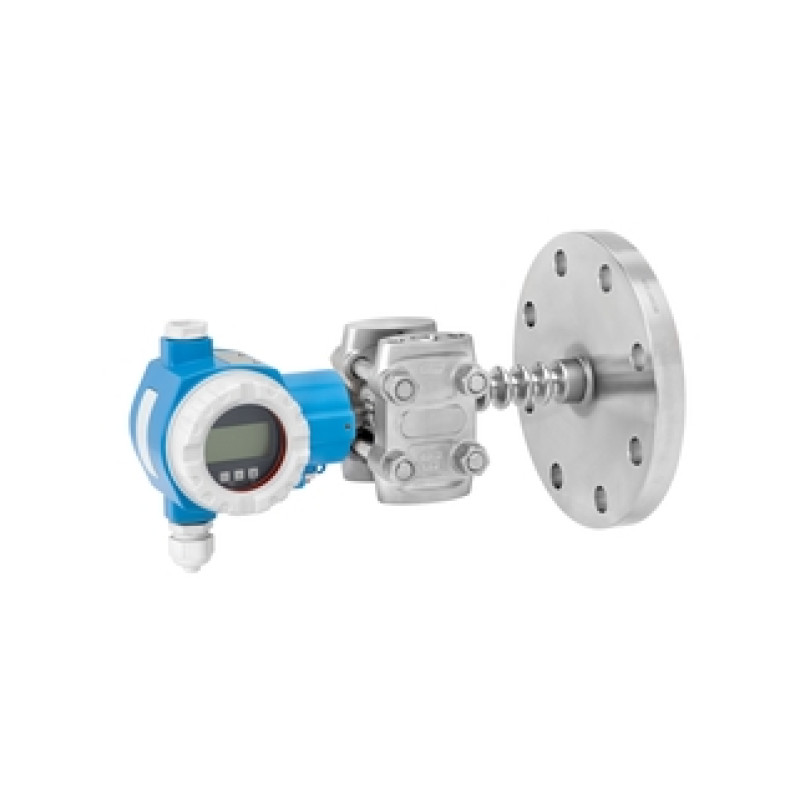

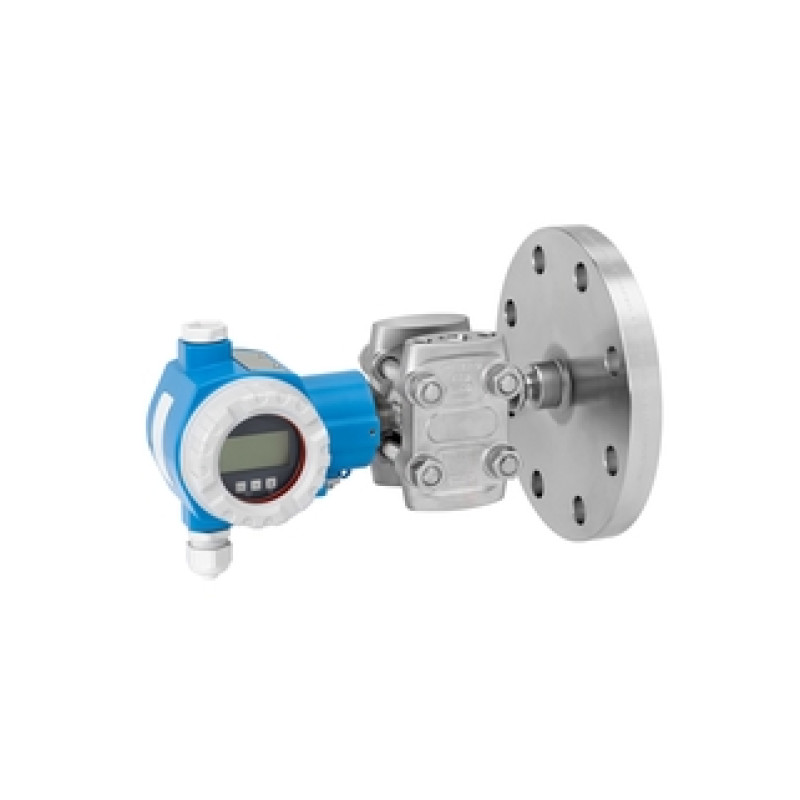

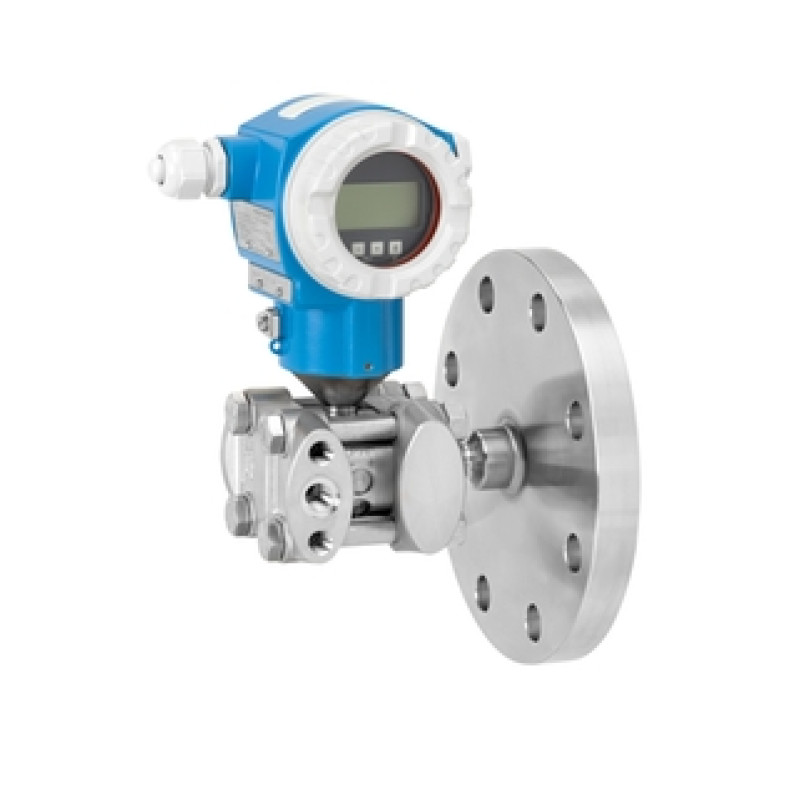

FMD77 Deltabar Differential pressure

Differential pressure transmitter with one diaphragm seal for level measurement

Previous: Deltabar S FMD630

• Accuracy

  0,075% + influence of diaphragm seal

• Process temperature

  -40°C...400°C
  (-40°F...752°F)

• Pressure measuring range

  100mbar...16bar
  (1.5psi...230 psi)

• Process pressure / max. overpressure limit

  160bar (2400 psi)

• Main wetted parts

  Alloy C276
  316L
  Monel
  Tantalum

• Max. measurement distance

  160m (525ft) H2O

• Material process membrane

  316L, AlloyC,
  Tantal,
  Gold-Rhodium,
  PTFE

• Measuring cell

  100 mbar...16 bar
  (40 inH20...240 psi)

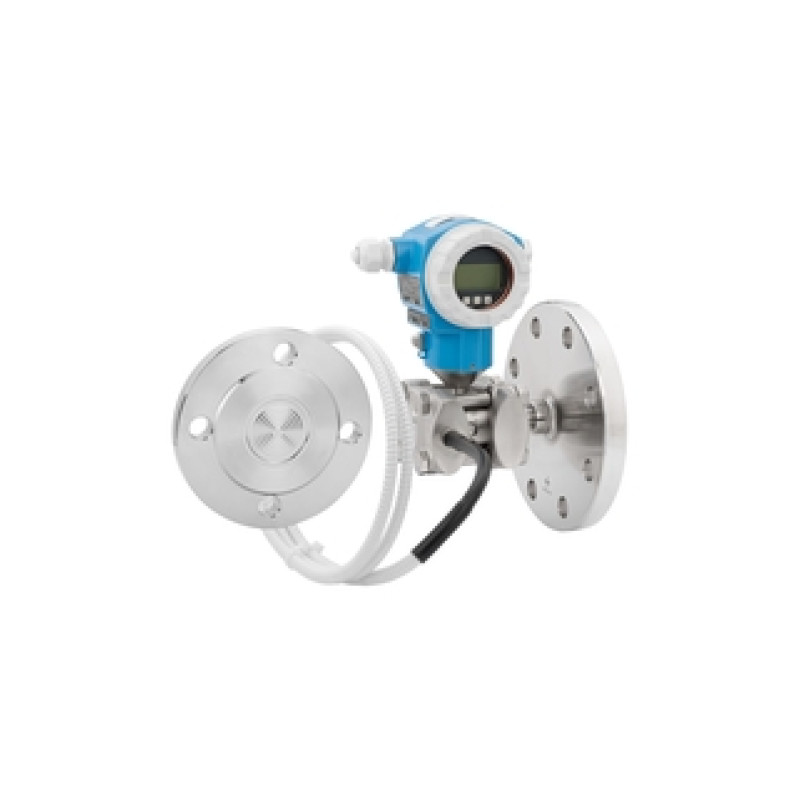

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

For level, volume or mass measurement in liquids.

• Process connections: Threads and flanges

• Temperature: -70 to +400°C (-94 to +752°F)

• Measuring ranges: +100mbar to +16bar (+1.5 to +240psi)

• Accuracy: ±0.075%

• International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

• Large variety of different process connections and membrane materials

• Highest safety due to gas-tight feedthrough with capabilities up to SIL2/3, certified to
  IEC 61508

• New TempC Membrane minimizes influences of ambient and process temperature fluctuations

• Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Cost savings with modular concept for easy replacement of sensor, display or electronics

• Seamless and independent system integration (HART/PA/FF)
