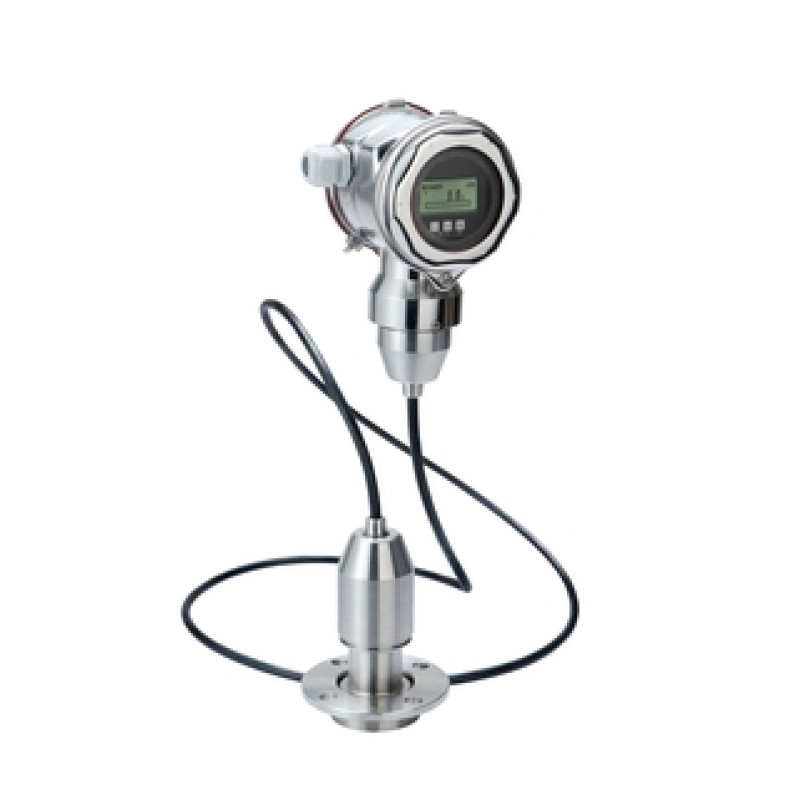

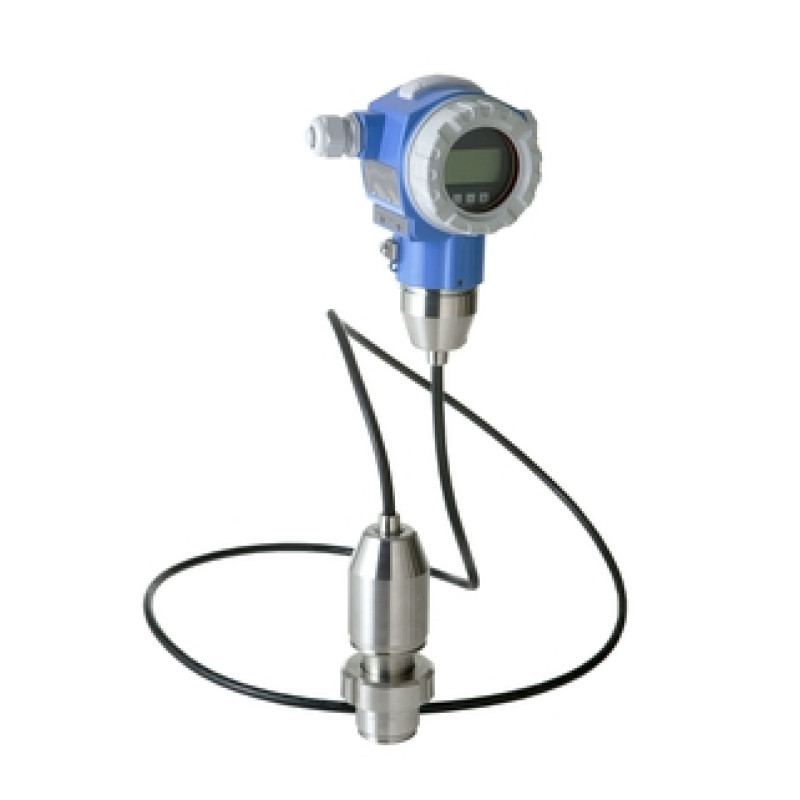

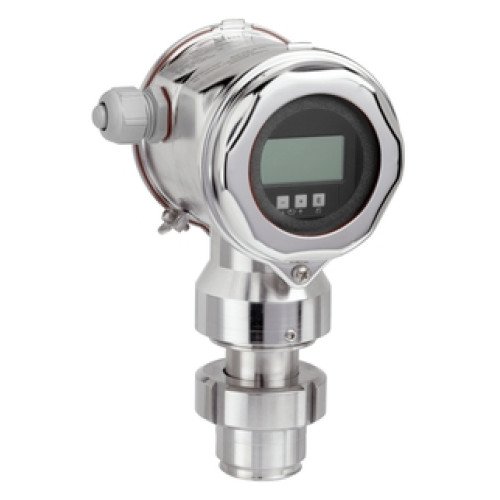

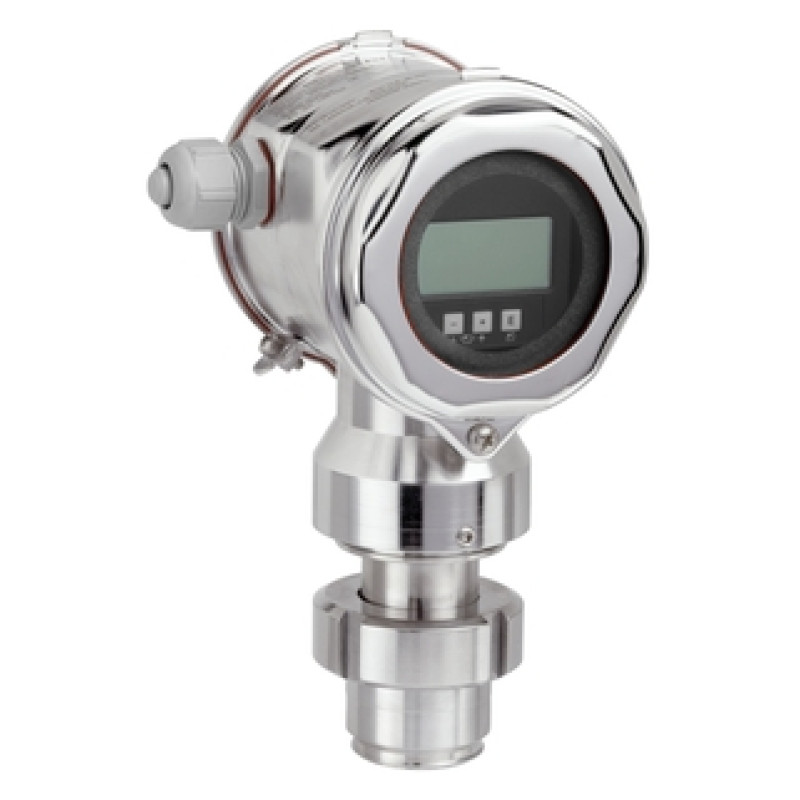

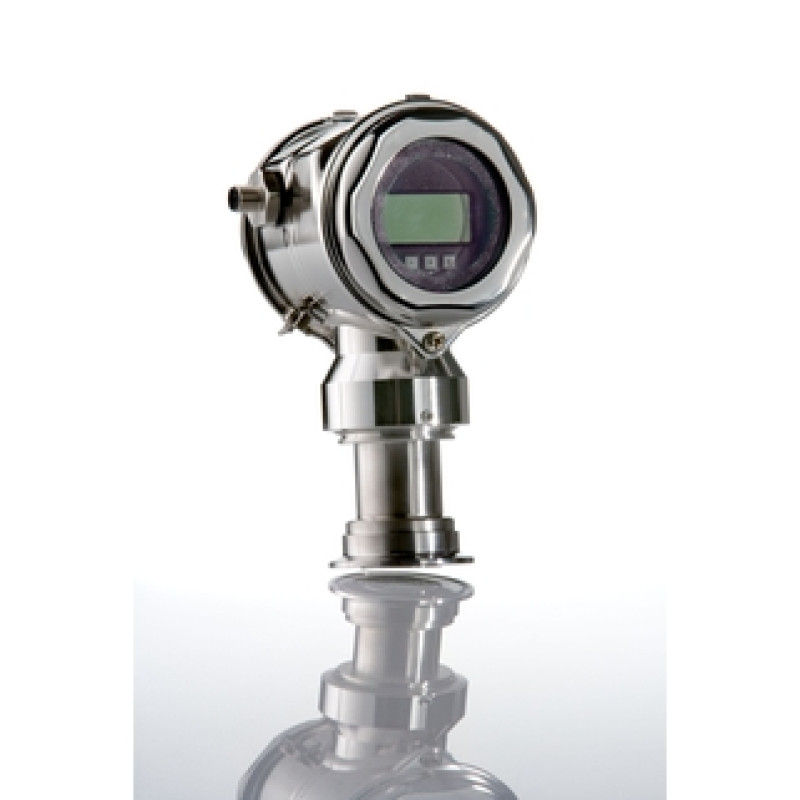

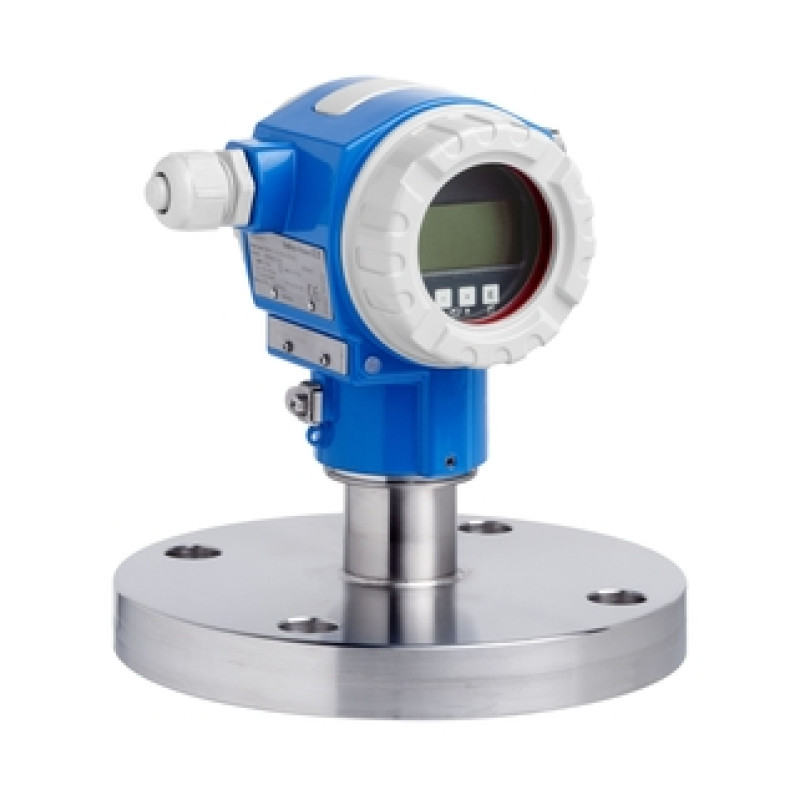

FMB70 Deltapilot Hydrostatic Level measurement

Highest performance pressure sensor with the Contite cell for hydrostatic level measurement

Previous: Deltapilot S DB50, Deltapilot S DB50A, Deltapilot S DB50L, Deltapilot S DB50S

• Accuracy

  Standard 0.1%
  Optional 0.075%

• Process temperature

  -10°C...+100°C
  (+14°F...+212°F)

• Pressure measuring range

  100 mbar...10 bar
  (1.5 psi...150 psi)

• Process pressure / max. overpressure limit

  40 bar (600 psi)

• Main wetted parts

  Alloy C
  316L

• Max. measurement distance

  100 m (328 ft) H2O

• Material process membrane

  316L, AlloyC,
  Gold-Rhodium

• Measuring cell

  100 mbar...10 bar
  (1.5 psi...150 psi)
