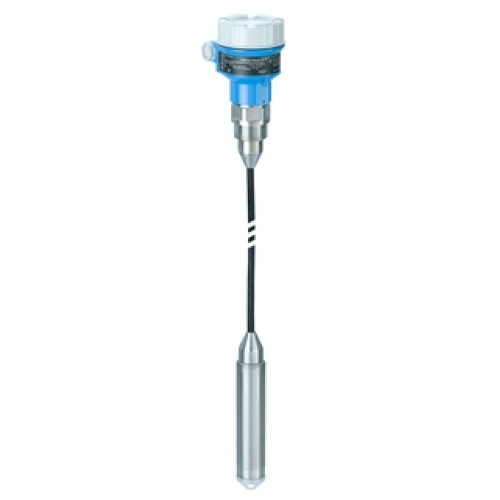

FMB52 Deltapilot Hydrostatic Level measurement

Pressure sensor with Contite measuring cell for hydrostatic level measurement

Previous: Deltapilot S DB52, Deltapilot S DB52A

• Accuracy

  Standard 0.2%
  Optional 0.1%

• Process temperature

  PE cable: -10°C…70°C / 14°F…158°F
  FEP cable: -10°C…80°C / 14°F…176°F

• Pressure measuring range

  100 mbar...10 bar
  (1.5 psi...150 psi)

• Process pressure / max. overpressure limit

  40 bar (600 psi)

• Main wetted parts

  Alloy C
  316L
  Cable (PE/FEP)
  optional coating AuPt
  optional coating AuRh

• Max. measurement distance

  100 m (328 ft) H2O

• Material process membrane

  316L, AlloyC,
  Gold-Rhodium
  PE, FEP

• Measuring cell

  100 mbar...10 bar
  (1.5 psi...150 psi)

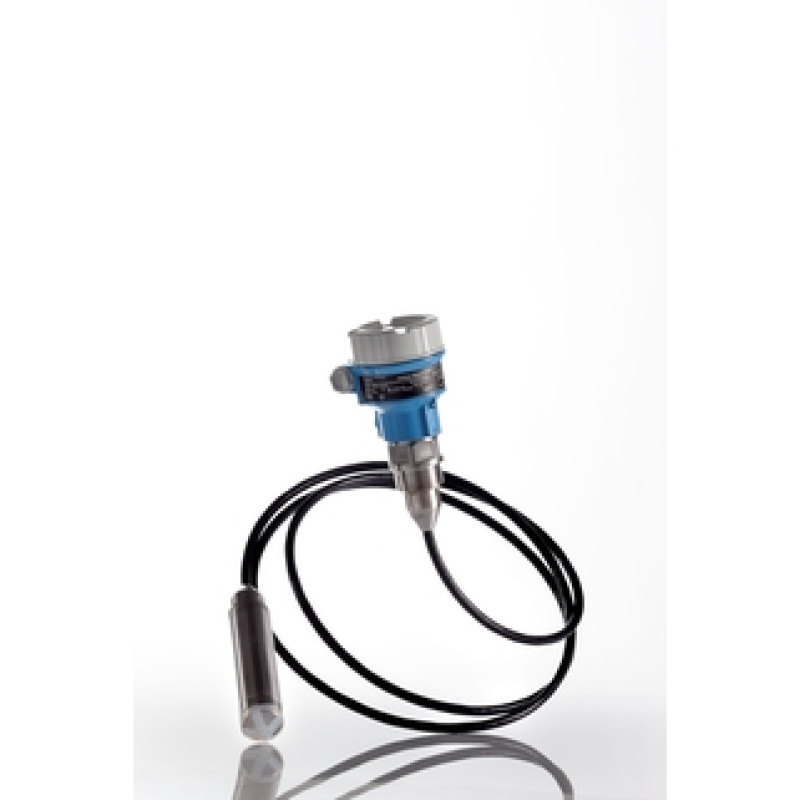

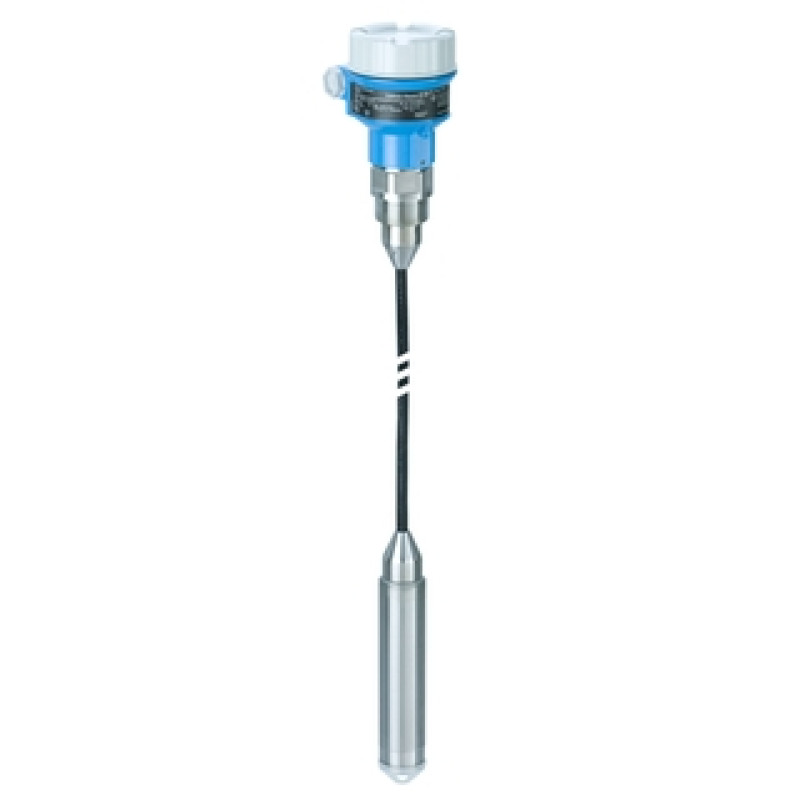

The Deltapilot FMB52 is a cable version including a fixed process connection. This device with the Contite measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.

For level measurement.

• Process connections: Threads and flanges

• Temperature: With PE cable: -10 to +70°C (+14 to +158°F),

  with FEP cable: -10 to +80°C (14 to 176°F)

• Measuring range: 0.1 to 10bar / 100m H₂O (1.5 to 150psi / 300ft H₂O)

• Accuracy: ±0.2%, ±0.1% (option)

• International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

• Modular concept for easy replacement of display or electronics

• Seamless and independent system integration (HART/PA/FF)

• Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

• International usage thanks to a wide range of approvals
