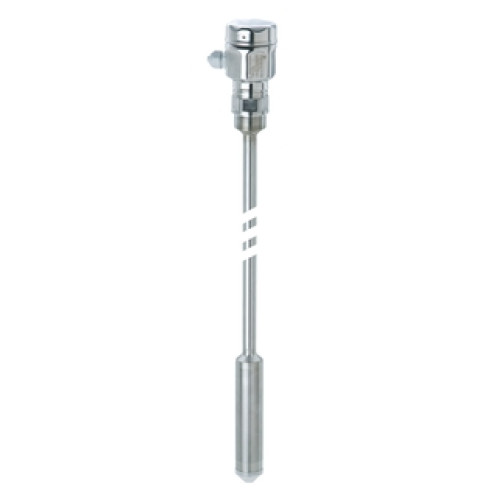

FMB51 Deltapilot Hydrostatic Level measurement

Pressure sensor with the Contite measuring cell for hydrostatic level measurement

Previous: Deltapilot S DB51, Deltapilot S DB51A

• Accuracy

  Standard 0.2%
  Optional 0.1%

• Process temperature

  -10°C...85°C
  (14°F…212°F)

• Pressure measuring range

  100 mbar...10 bar
  (1.5 psi...150 psi)

• Process pressure / max. overpressure limit

  40 bar (600 psi)

• Main wetted parts

  Alloy C
  316L
  optional coating AuPt

• Max. measurement distance

  100m (328ft) H2O

• Material process membrane

  316L, AlloyC
  Gold-Rhodium

• Measuring cell

  100 mbar...10 bar
  (1.5 psi...150 psi)

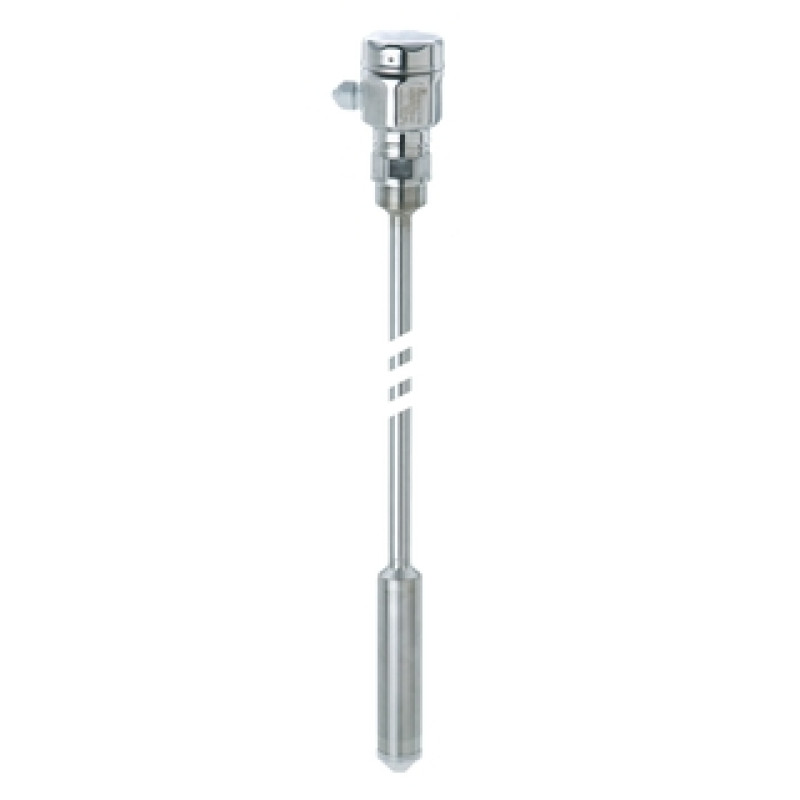

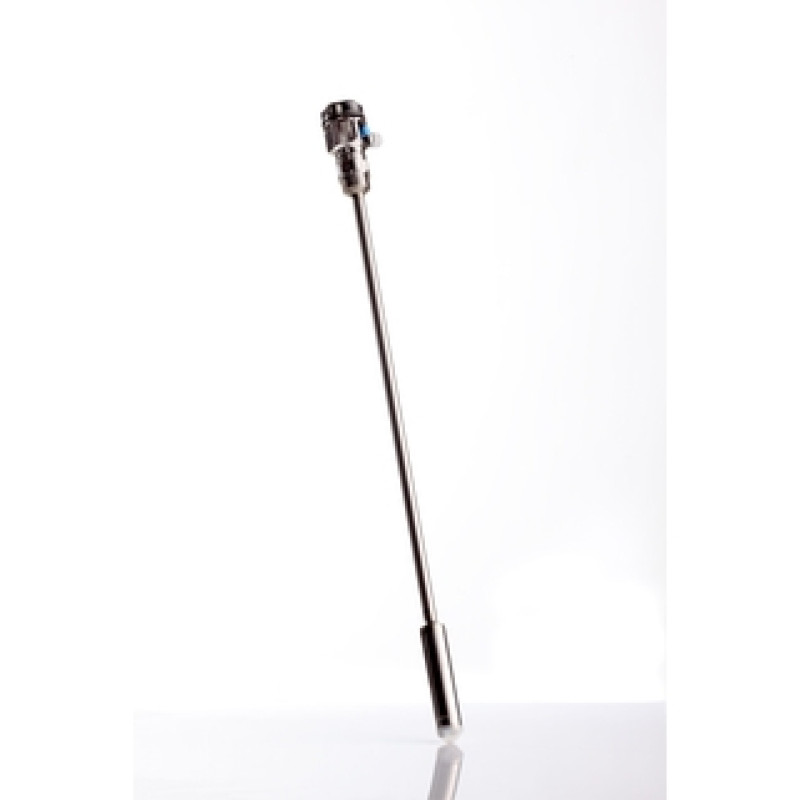

The Deltapilot FMB51 is a rod version with a fixed process connection. This device with the Contite measuring cell and is typically used in the environmental industry. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.

For level measurement.

• Process connections: Threads and flanges

• Temperature: -10 to +85°C (14°F…185° F)

• Measuring range: 0.1 to 10bar / 100m H₂O (1.5 to 150psi / 300ft H₂O)

• Accuracy: ±0.2%, ±0.1% (option)

• International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

• Modular concept for easy replacement of display or electronics

• Seamless and independent system integration (HART/PA/FF)

• Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

• International usage thanks to a wide range of approvals
