R181042500 LUBRICATING UNIT 45
- Brand: Rexroth
- Product Code: R181042500
- Availability: In Stock
-
81.60€
- Ex Tax: 68.00€

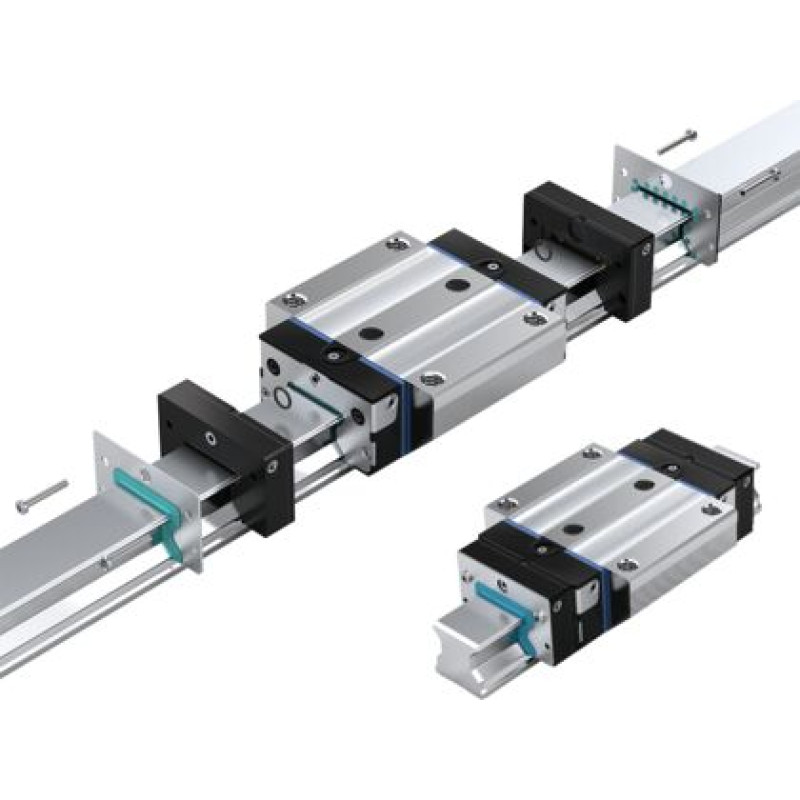

Front lube unit for roller rail systems
Size 45
- Front lube units suitable for RSHP roller runner blocks and roller runner block generation 1
- For a travel distance of up to 5,000 km without re-lubrication
- Roller Runner Block only needs initial lubrication with grease
- Front lube units on both sides of the Roller Runner Block
- Low lubricant loss
- Reduced oil consumption
- No lubrication lines
- Front lube unit can be refilled using the lube nipple on the end-face or at the side.
- Size 25: Lube connection on the end-face of the front lube unit is suitable for the grease lubrication of the Roller Runner Block. For this purpose, a lube pin is attached. For a detailed instruction for mounting with size 25, please refer to the Roller Rail System instruction.
|
Accessories for |
Runner block |
|
Nominal size [mm] |
45 |
|
Tightening torque [Nm] |
1 |
|
Height runner block with guide rail [mm] |
60 |
|
Operating temperature (min. … max.) |
+60 °C |
|
Permissible ambient temperature |
-10 °C ... +40 °C |
|
Weight [kg] |
0.14 |
|
Maximum operating temperature [°C] |
+60 |
|
Dimension A4 (profiled rail system) [mm] |
78 |
|
Dimension B5 (profiled rail systems) [mm] |
18.5 |
|
Dimension E8 (profiled rail systems) [mm] |
62.9 |
|
Dimension E9 (profiled rail systems) [mm] |
16.7 |
|
Dimension H [mm] |
60 |
|
Dimension H3 [mm] |
50 |
|
Dimension H4 [mm] |
0.75 |
|
Dimension N8 (profiled rail systems) [mm] |
7.25 |
|
Dimension N9 (profiled rail systems) [mm] |
7.5 |
|
Dimension S8 thread diameter (profiled rail systems) [mm] |
M6 |
|
Dimension S9 thread diameter (profiled rail systems) |
M6 |
|
Footnote Dimension H |
Dimension with regard to mounting surface of the roller runner block for a standard higher version |
