R181040070 WIPER 45 (FKM)
- Brand: Rexroth
- Product Code: R181040070
- Availability: In Stock
-
362.40€
- Ex Tax: 302.00€
Viton seal for roller rail systems
Size 45

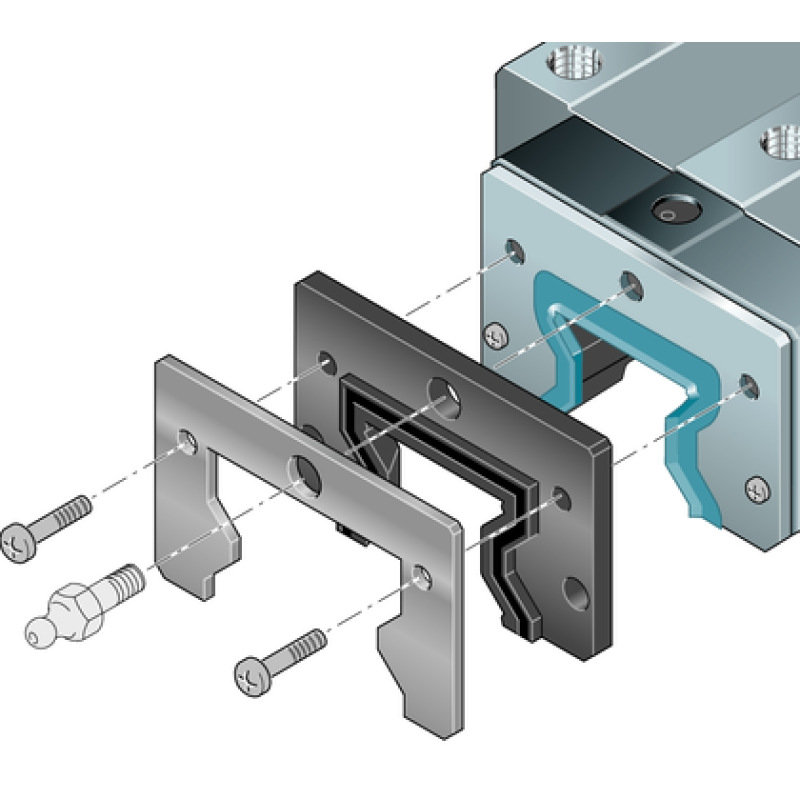

- For mounting on roller runner blocks for all roller guide rails
- Material: Stainless steel plus seal made of Viton
- Easy mounting and removal even when guide rail is screwed down (note the mounting instructions).
- Two-piece
|
Accessories for |
Runner block |
|
Nominal size [mm] |
45 |
|
Width of runner block [mm] |
78 |
|
Height runner block with guide rail [mm] |
50 |
|
Mass m (g) [g] |
60 |
|
Weight [kg] |
0.07 |
|

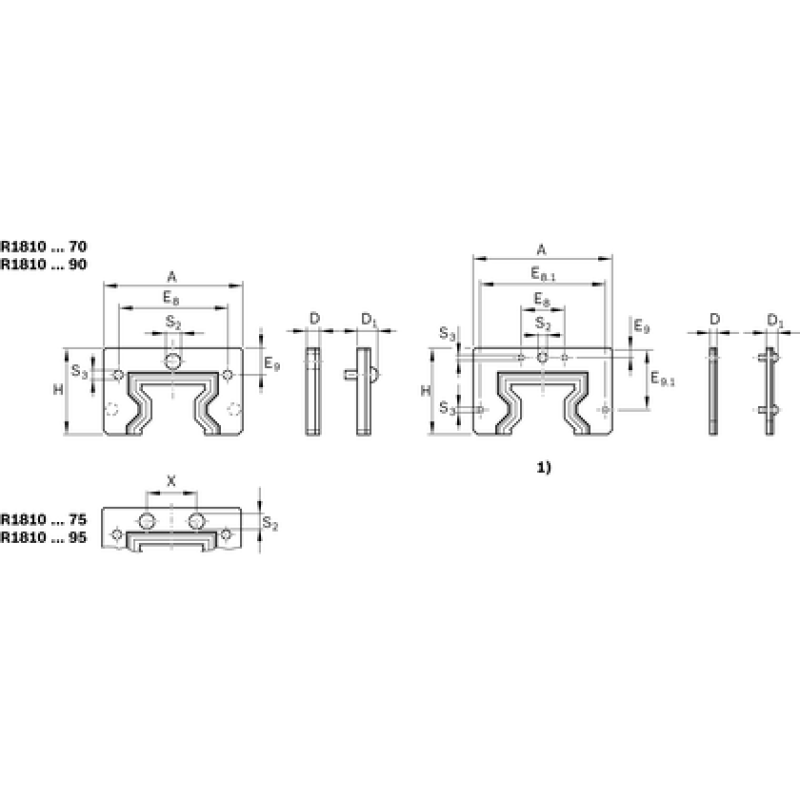

Dimension A (profiled rail systems) [mm] |
78 |
|
Dimension D [mm] |
6 |
|
Dimension D1 [mm] |
9 |
|
Dimension diameter S2 (profiled rail systems) [mm] |
7 |
|
Dimension diameter S3 (profiled rail systems) [mm] |
5 |
|
Dimension E8 (profiled rail systems) [mm] |
62.9 |
|
Dimension E9 (profiled rail systems) [mm] |
16 |
|
Dimension H [mm] |
50 |
|
Dimension X (profiled rail systems) [mm] |
40 |
