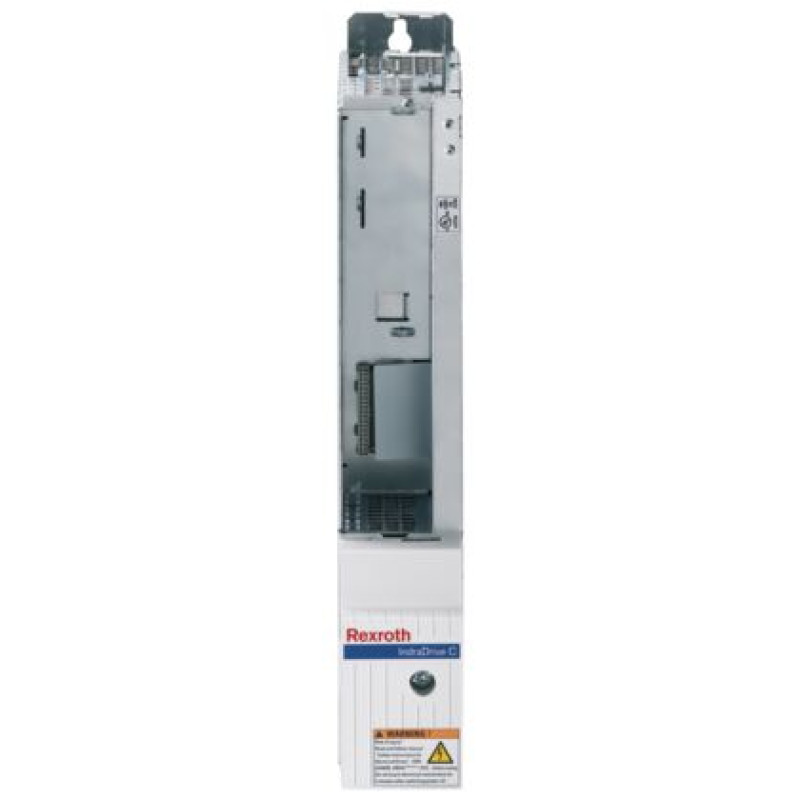

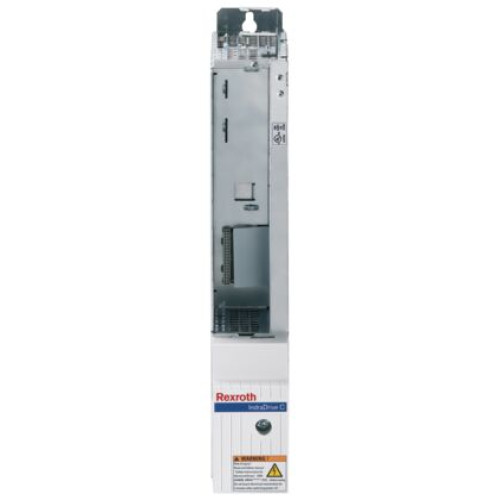

R911298374 COMPACT CONVERTER HCS02.1E-W0028-A-03-NNNN
- Brand: Rexroth
- Product Code: R911298374
- Availability: In Stock
-
3,504.00€
- Ex Tax: 2,920.00€
The IndraDrive C (HCS02) converters cover the middle kW range of the power range. They come with a control unit slot that has various interfaces for connecting to the automation environment, for encoder systems, safety technology, Forced ventilated - Axial fan 230Vnd additional digital and analog signals, etc.
- Compact design for single-axis applications
- 2.5x overload capacity
|
Cooling type |
internal air cooling |
|
Maximum current [A] |
28.3 |
|
Continuous current [A] |
12 |
|
Width [mm] |
65 |
|
Height [mm] |
251.5 |
|
Depth [mm] |
352 |
|
International protection code |
IP20 |
|
Nominal mains frequency [Hz] |
50-60 |
|
Maximum power (without choke) [kW] |
8 |
|
Continuous power (without choke) [kW] |
5.1 |
|
Max. power (with power choke) [kW] |
10 |
|
Continuous power (with power choke) [kW] |
5.1 |
|
max. output frequency (@4 kHz switching frequency) [Hz] |
0-400 |
|
max. output frequency (@8 kHz switching frequency) [Hz] |
0-800 |
|
max. output frequency (@12 kHz switching frequency) [Hz] |
0-1200 |
|
max. output frequency (@16 kHz switching frequency) [Hz] |
0-1600 |
|
Power supply voltage (1 AC) [V] |
200-250 |
|
Power supply voltage (3 AC) [V] |
200-500 |
|
Output voltage |
3 x AC 0 ... Mains connection voltage V |
|
Weight [kg] |
4.3 |
