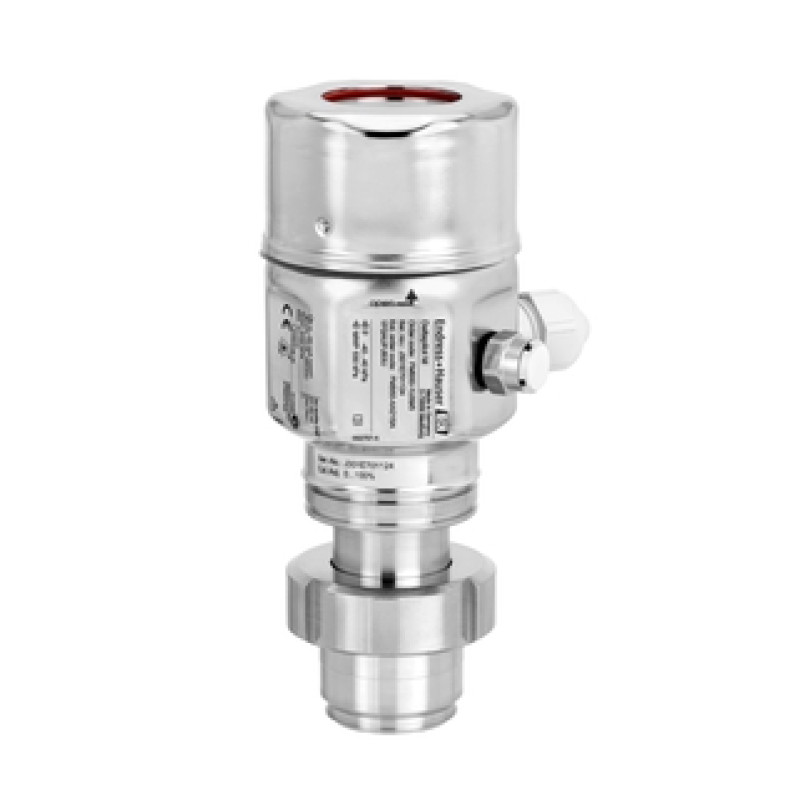

FMB50 Deltapilot Hydrostatic Level measurement

Compact pressure sensor with the Contite measuring cell for hydrostatic level measurement

Previous: Deltapilot S DB50, Deltapilot S DB50A, Deltapilot S DB50L, Deltapilot S DB50S

• Accuracy

  Standard 0.2%
  Optional 0.1%

• Process temperature

  -10°C...100°C
  (14°F...212°F)

• Pressure measuring range

  100 mbar...10 bar
  (1.5 psi...150 psi)

• Process pressure / max. overpressure limit

  40 bar (600 psi)

• Main wetted parts

  Alloy C
  316L
  optional coating AuPt

• Max. measurement distance

  100m (328ft) H2O

• Material process membrane

  316L, AlloyC
  Gold-Rhodium

• Measuring cell

  100 mbar...10 bar
  (1.5 psi...150 psi)

The compact Deltapilot FMB50 transmitter with the condensate resistant Contite measuring cell is typically used in the process and hygienic applications.
It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.

For level and/or pressure measurement.

• Process connections: Thread, flanges and flush-mounted hygienic connections

• Process temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)

• Measuring range: 0.1 to 10bar (1.5 to 150psi)

• Accuracy: ±0.2%, ±0.1% (option)

• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

• Modular concept for easy replacement of display or electronics

• Seamless and independent system integration (HART/PA/FF)

• Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• International usage thanks to a wide range of approvals
