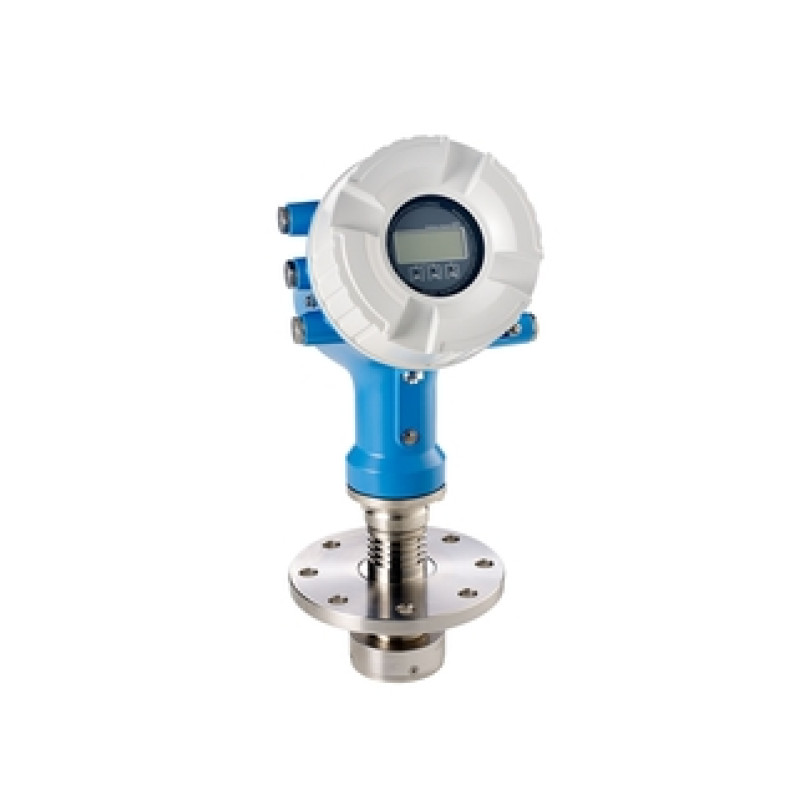

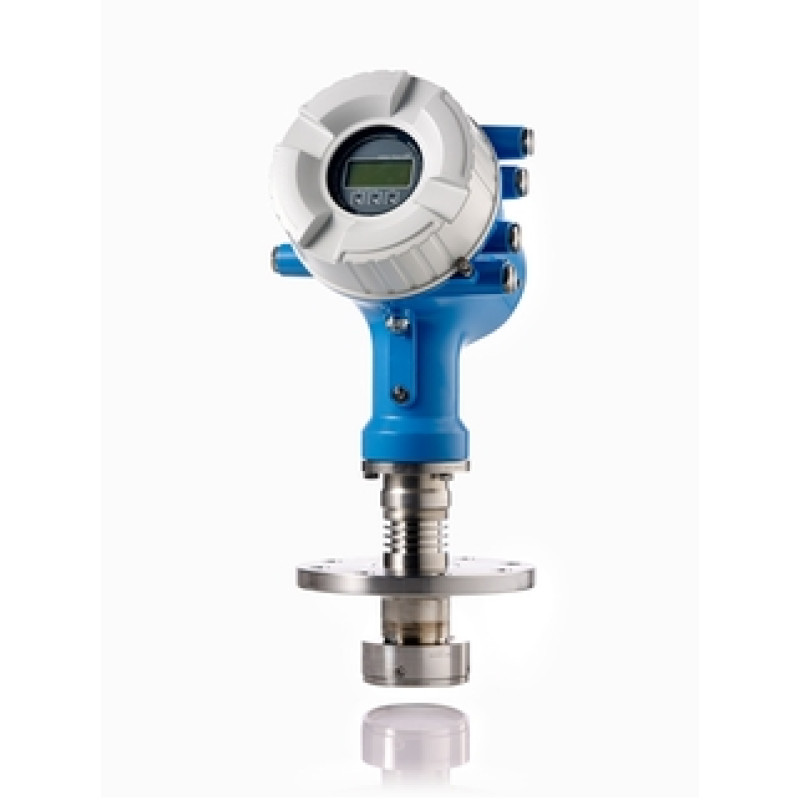

NMR84 Micropilot Radar measurement

For high accurate non-contact level measurement in stilling well applications in custody transfer

• Measuring principle

  Level radar

• Characteristic / Application

  Planar antenna, 6GHz: High precision measurement for for storage tanks up to 30 m (98ft)

• Specialities

  Custody transfer level measurement

• Supply / Communication

  85-264VAC
  52-74VAC
  19-64VDC

• Accuracy

  up to 0.5 mm

• Ambient temperature

  Standard:
  -40°C…60°C
  (-40°F...140°F)
  For calibration to regulatory
  standards:
  -25°C…55°C
  (-13°F...131°F)

• Process temperature

  -40°C…150°C
  (-40°F...302°F)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar abs

• Main wetted parts

  316L, PTFE

• Process connection

  Flange:
  DN100/4"…DN300/12"
  UNI-Flange:
  DN150/6"…DN300/12"

• Max. measurement distance

  40 m (131 ft)
  For calibration to regulatory standards:
  30 m (98 ft)

• Communication

  Outputs:
  Fieldbus: Modbus RS485, V1, WM550
  HART, BPM and TRL/2 (via GE option)
  Analog 4-20mA output (Exi/ Exd)
  Relay output (Exd)
  Inputs:
  Analog 4-20mA input (Exi/ Exd)
  2-, 3-, 4-wire RTD input
  Discrete input (Exd, passive/ active)

• Certificates / Approvals

  ATEX, FM, IEC Ex, EAC, JPN Ex, KC Ex,
  INMETRO, NEPSI, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN 10204-3.1
  NACE MR0175, MR0103
  AD2000

• Metrological approvals and certificates

  OIML, NMi, PTB

• Options

  Redundant fieldbus
  Alu-coated or 316L housing
  Weather protection cover

• Application limits

  Maximum measuring range is
  dependent on the tank form and/
  or application
  Strong condensate or build-up
  formation

Micropilot NMR84 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The NMR84 free space radar with drip-off planar antenna is specifically suited for stilling well applications. The superior drip-off antenna design with proven track record eliminates problems caused by condensation.

With planar antenna particularly suited for stilling well applications.

• Process connections: Flanges

• Temperature: -40 to +150°C (-40 to +302°F)

• Pressure: Vacuum to +25bar (Vacuum to +362psi)

• Maximum measuring range: 40m (131ft)

• Accuracy: ±0.5mm (±0.02")

• Transmitting frequency: 6GHz

• International explosion protection and custody transfer certificates, overfill prevention WHG, SIL

• Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy) for high level of safety

• Maximum reliability through accuracy up to ±0.5mm (±0.02")

• Developed according to international metrology recommendations such as OIML R85 and API MPMS

• Local and country-specific certifications like NMi or PTB for custody transfer applications

• Simplified installation and trouble-free operations due to easy connection to major DCS systems via open protocols

• Unique drip-off antenna design eliminates measurement error due to condensation build-up
