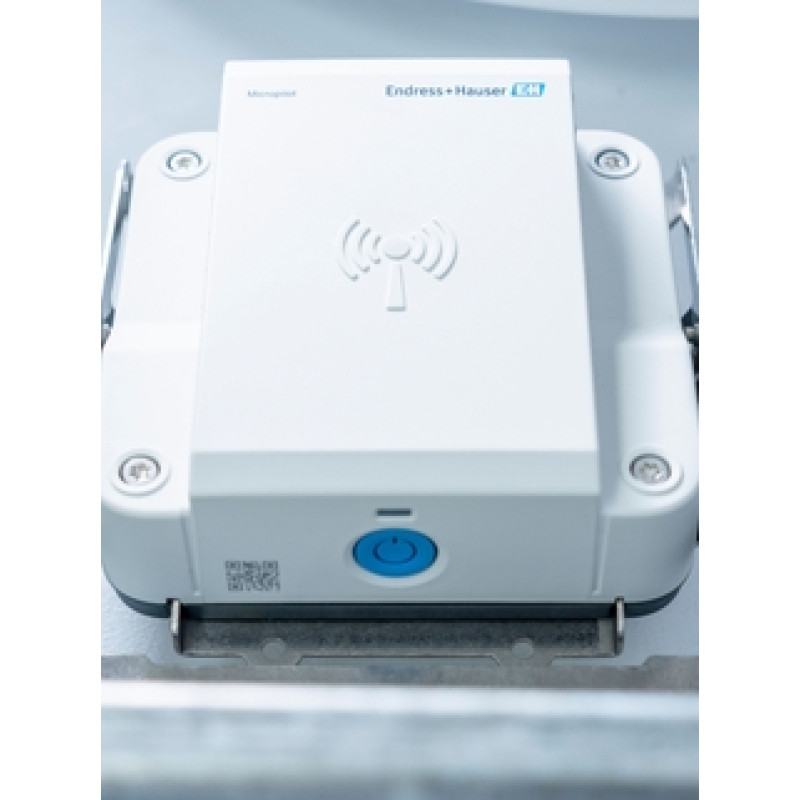

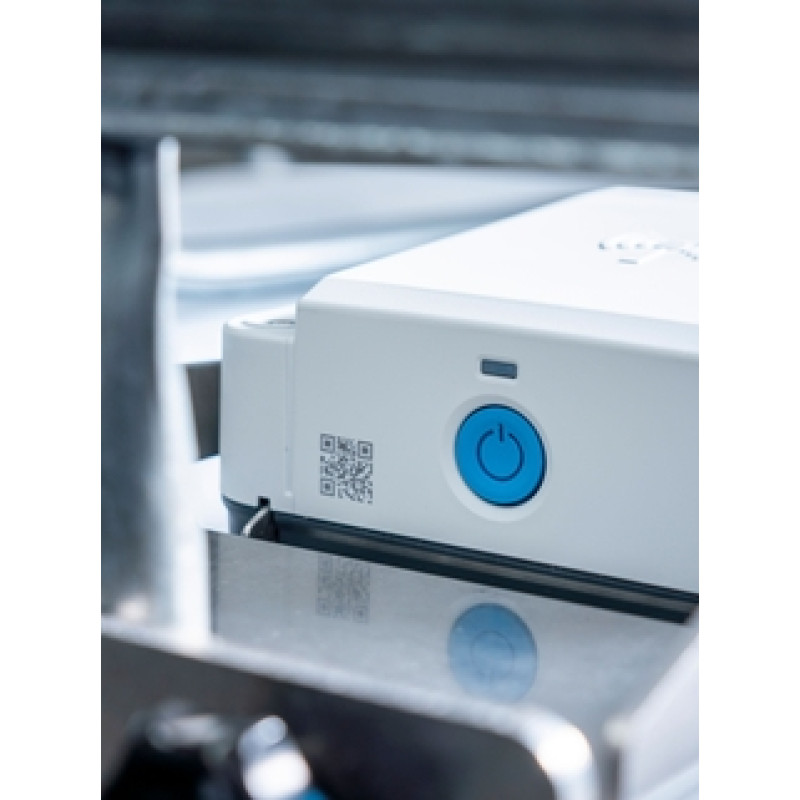

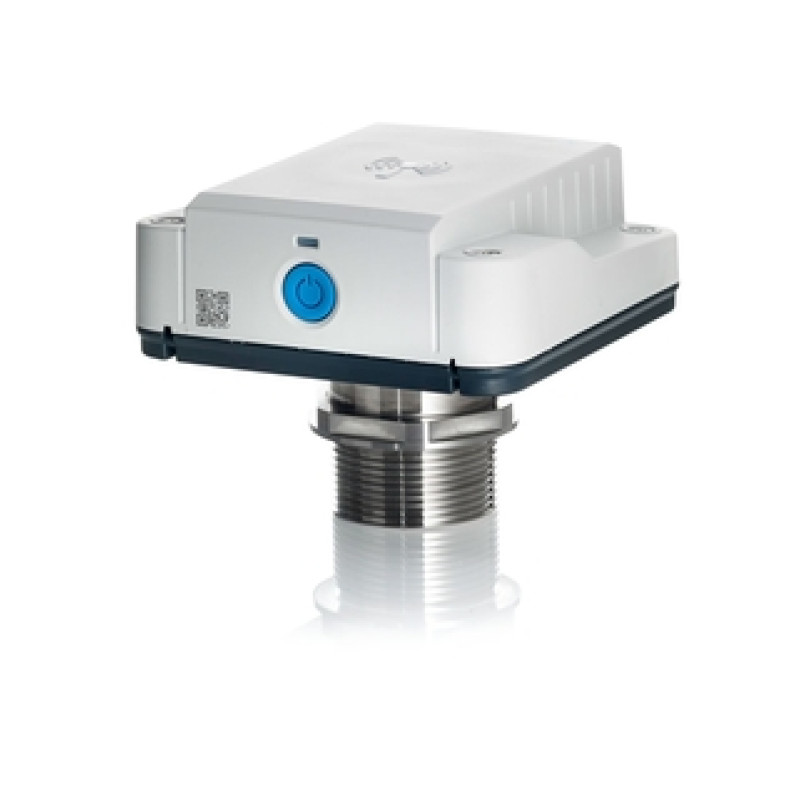

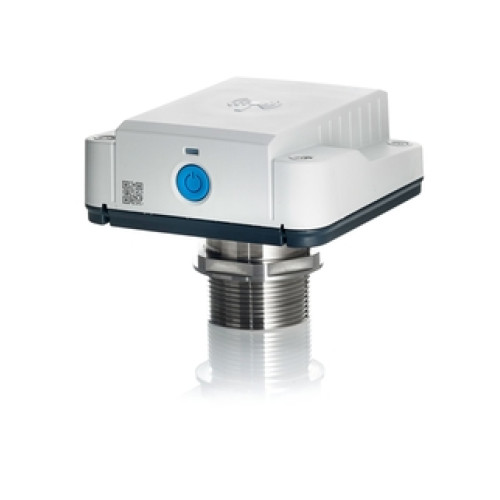

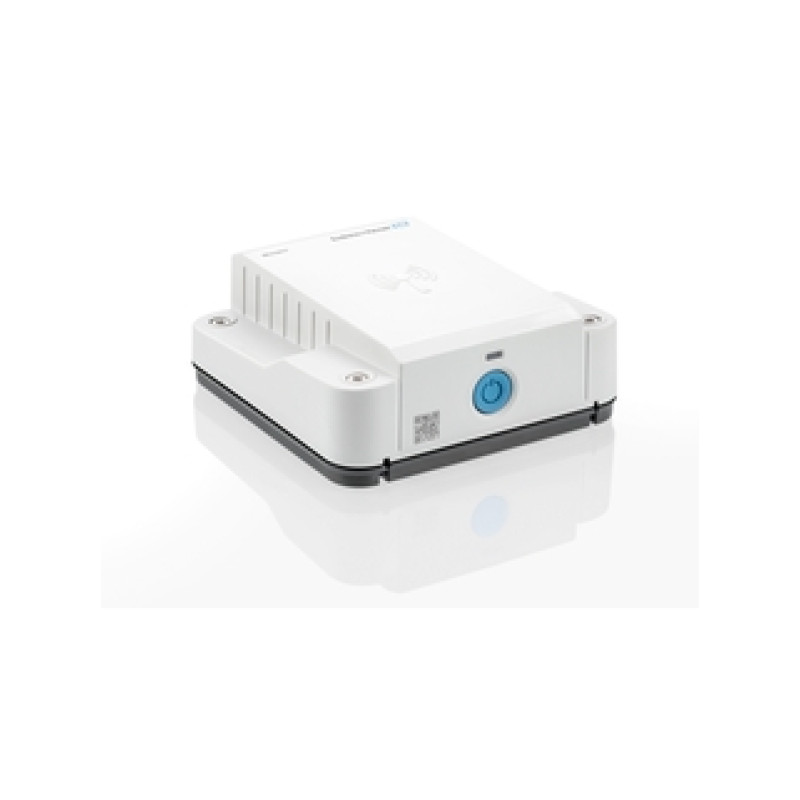

FWR30 Micropilot The cloud connected radar level sensor

From smart level monitoring to supply chain management

Measuring principle

Liquids

• Characteristic / Application

  Applications in all industries
  Mobile and stationary storage tanks

• Specialities

  Commissioning and operation via digital services like "Netilion Value" or "SupplyCare Hosting"

• Supply / Communication

  Battery powered
  Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)

• Frequency

  80 GHz

• Accuracy

  ±10 mm (0.39 in)

• Process temperature

  -20°C...+60°C (-4°F…+140°F)

• Main wetted parts

  Housing: plastic PBT/ PC

• Process connection

  None

• Max. measurement distance

  15 m (49 ft)

• Communication

  Wireless
  Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)

• Options

  Mounting bracket IBC/ pipe
  Mounting bracket wall/ ceiling

• Application limits

  DK <1.9
  Metallized plastic tanks

Solids

• Characteristic / Application

  Applications in all industries
  Mobile and stationary plastic and metal tanks (IBC tanks, storage silos)
  Reliable non-contact level measurement of solids in metal- and plastic containers

• Specialities

  Commissioning and operation via digital services like "Netilion Value", "Netilion Inventory" or "SupplyCare Hosting"

• Supply / Communication

  Battery powered
  Mobile connectivity with NB-IoT, LTE-M or
  2G (fallback)

• Frequency

  80 GHz

• Accuracy

  ±10 mm (0.39 in)

• Process temperature

  -20°C...+60°C (-4°F…+140°F)

• Main wetted parts

  Housing: plastic PBT/ PC

• Process connection

  Threads:
  G 1 1/2", NPT 1 1/2"

• Max. measurement distance

  15 m (49 ft)

• Communication

  Wireless
  Mobile connectivity with NB-IoT, LTE-M or
  2G (fallback)

• Options

  Mounting bracket IBC/ pipe
  Mounting bracket wall/ ceiling

• Application limits

  DK <1.9
  Non-invasive measurement in metallized plastic tanks

Continuous simplicity from scratch. Our IIoT radar is a smart level transmitter with high-end technology in a cost-effective sensor. Together with the digital services Netilion Value, Netilion Inventory or SupplyCare Hosting, the wireless and battery powered level sensor, ensures reliable and remote level monitoring. The secure and certified solution provides access to information on asset and inventory status from everywhere at any time.

Remote level monitoring and inventory management of

• liquid additives in plastic and metal tanks used in production processes

• cleaning agents in the food and beverage industry

• solids like animal feed in the agriculture industry

• solids like building materials

Location tracking of mobile tanks in the logistics and supply industry

• silos on construction sites

• liquid additives in plastic and metal tanks

• Simplified solution from procurement to operations

• Full transparency in storage and transportation of liquids and solids

• Secure data transmission combined with a flexible, digital service portfolio

• Information access from everywhere at any time
