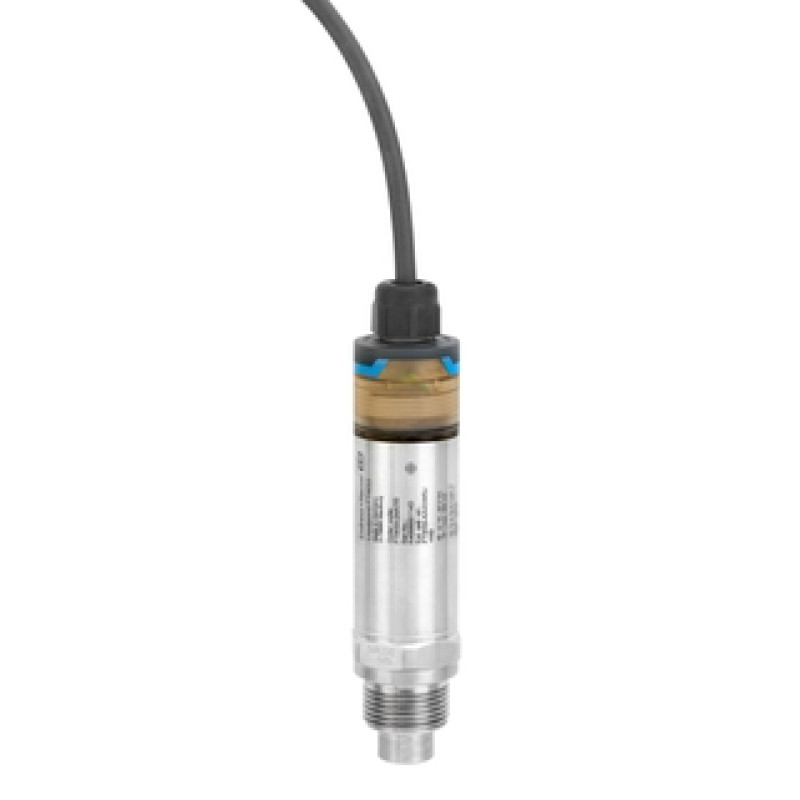

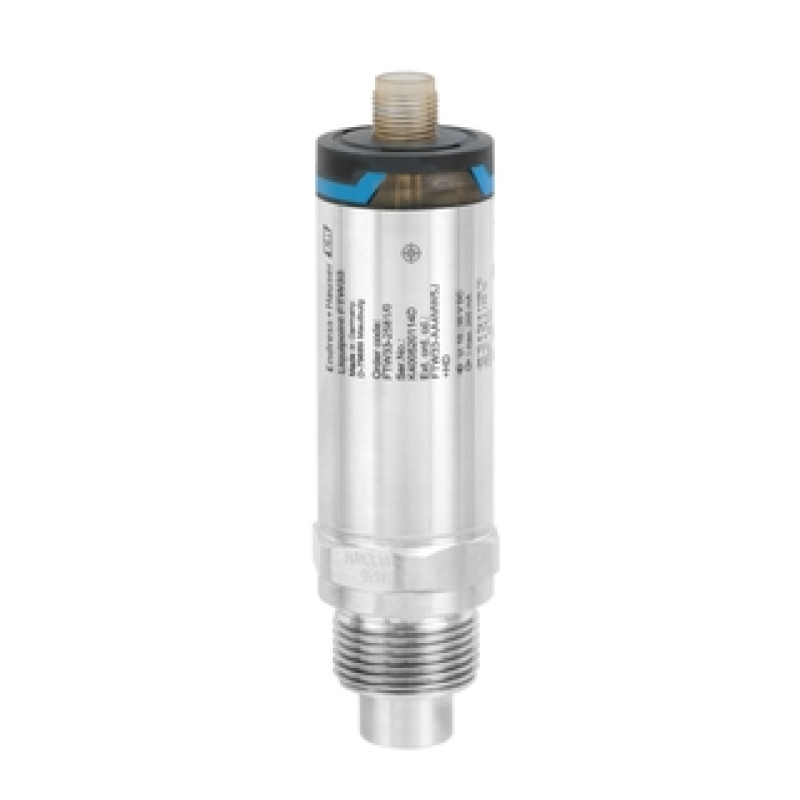

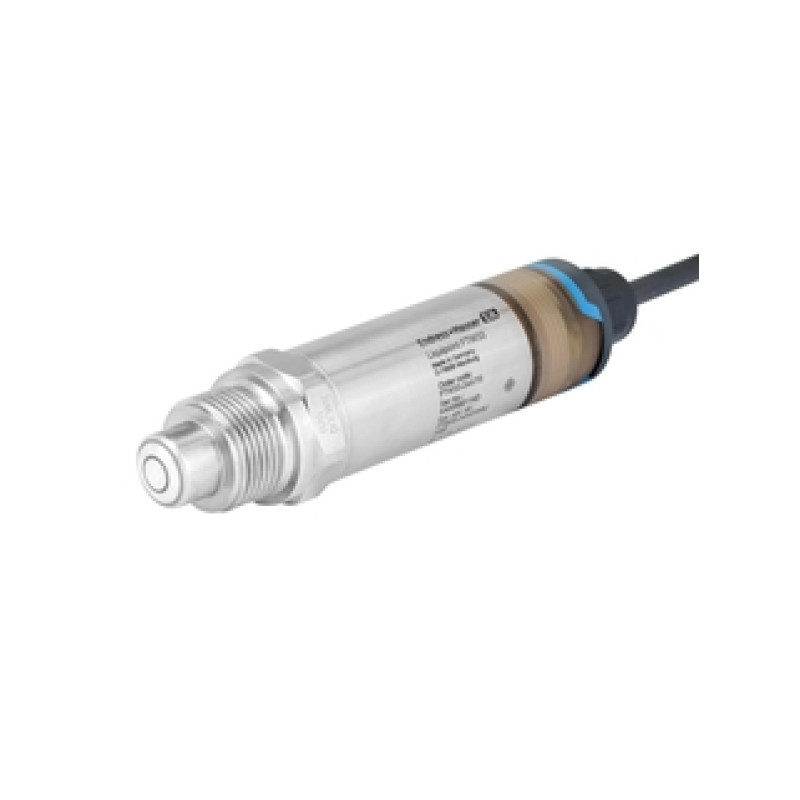

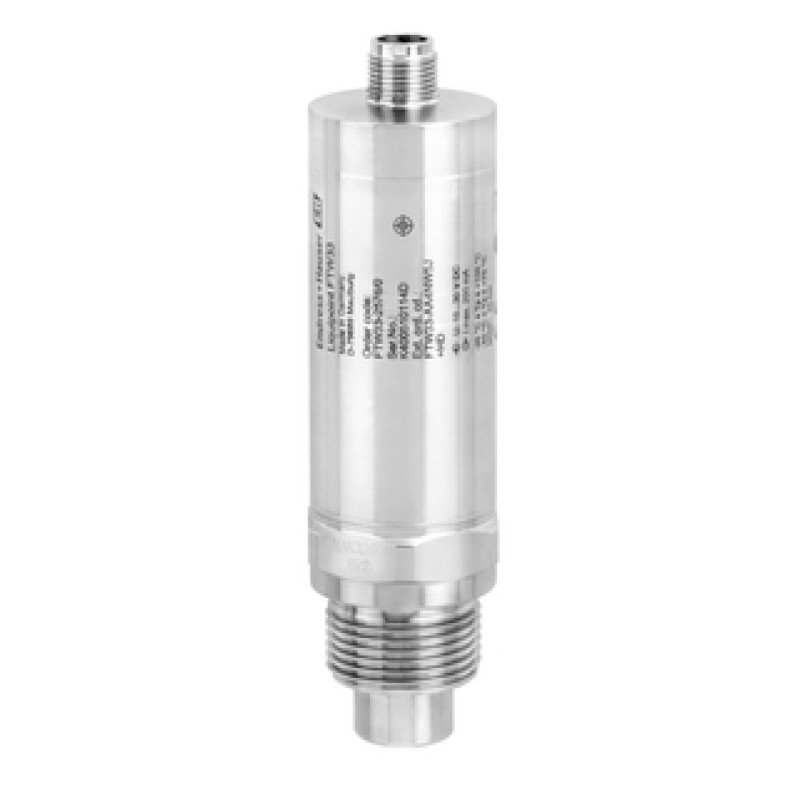

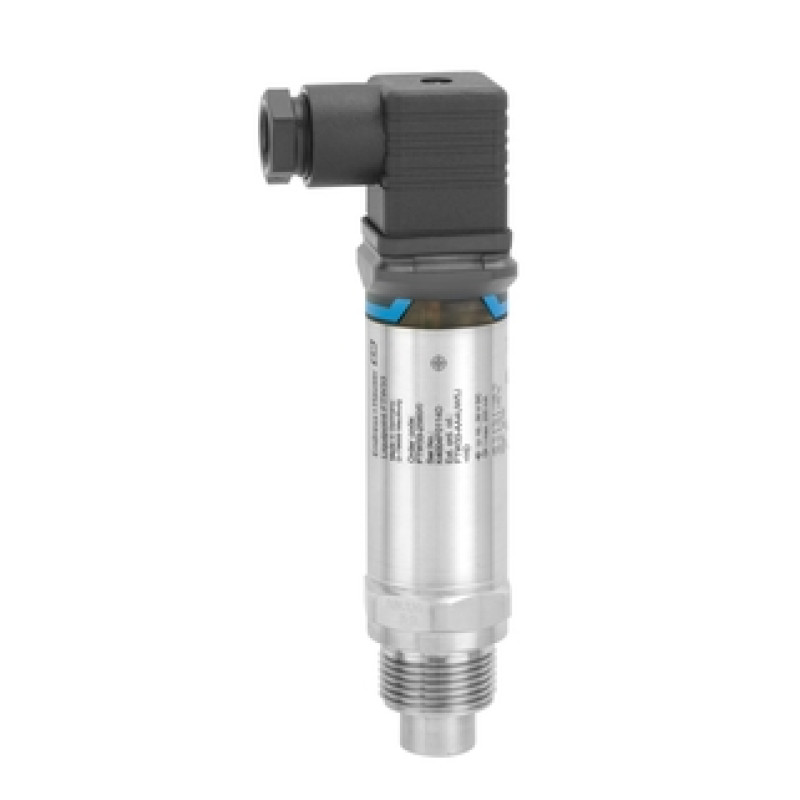

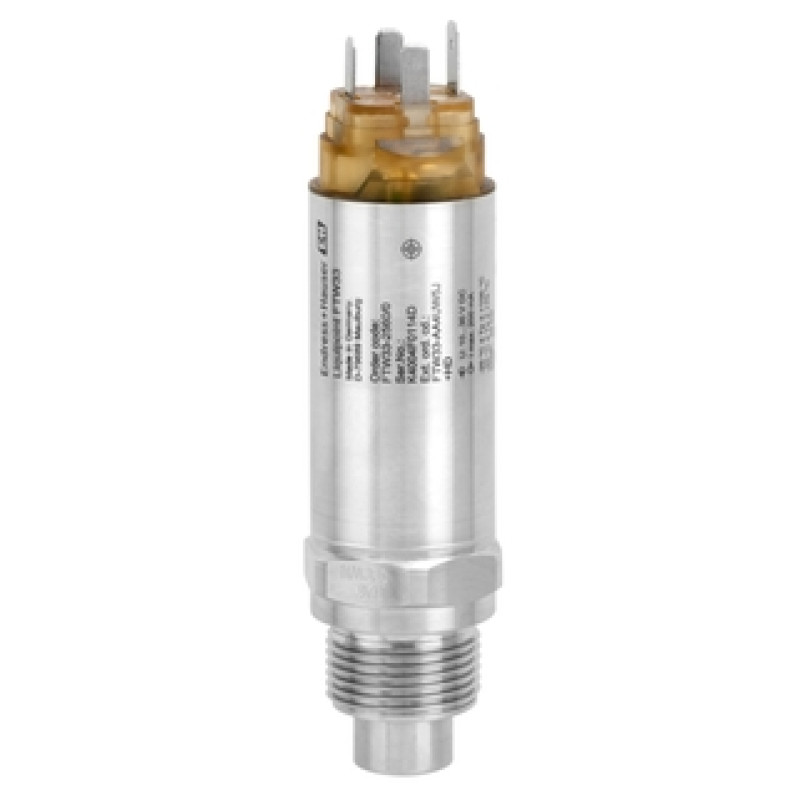

FTW33 Liquipoint Conductive Point level detection

Very compact flush-mounted probe for liquid and pasty media

Previous: Pump Protection FTW360

• Measuring principle

  Conductive

• Characteristic / Application

  Compact point level switch for using in pipes and in storage, mixing and process vessels with or without an agitator, for water based or oil based media, with active build up compensation,flush mounting

• Specialities

  CIP and SIP suitable
  Conductive foam is detectable or can be switched off

• Supply / Communication

  10…30 V DC

• Ambient temperature

  -40 ... 70°C
  (-40 ... 158°F)

• Process temperature

  Standard:
  -20 ... 100°C
  Cleaning:
  -20 ... 150°C for 1h
  ( -4 ... 302°F for 1h)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar
  (Vacuum ... 362,5 psi)

• Main wetted parts

  Sensor: 316L
  Sensor isolation: PEEK

• Process connection

  Thread G1, G1/2, G3/4, M24

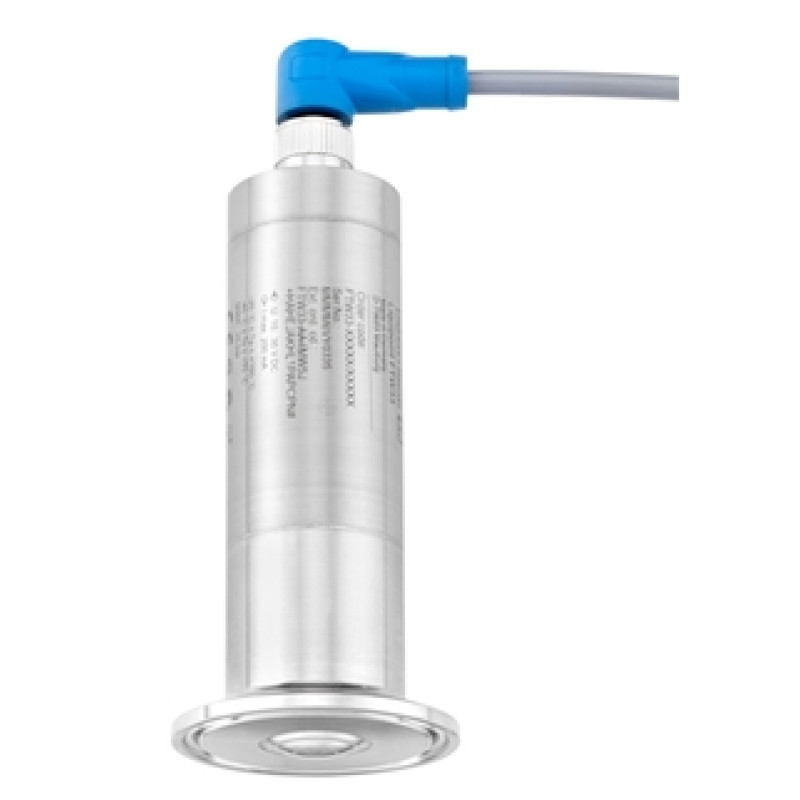

• Process connection hygienic

  Clamp ISO 2852 1 to 1 1/2", 2",
  DIN11851 Pipe union

• Communication

  DC PNP

• Certificates / Approvals

  CSA C/US

• Design approvals

  EN 10204-3.1

• Hygienic approvals

  3A, EHEDG

• Options

  Weld-in adapter,
  Process adapter for hygienic process connections

The Liquipoint FTW33 is developed for the food industry and meets all international hygiene requirements. The device also fits perfectly for applications in all industries. For use in pasty and sticky media and media with heavy build-up.

For use in pipes and in storage, mixing and process vessels with or without an agitator. For liquids with electrical conductivity >1 μS/cm or dielectric constant >2. Developed for the food industry. Detection of foam occurring within the food industry possible.

• Process connections: Threads and hygiene connections

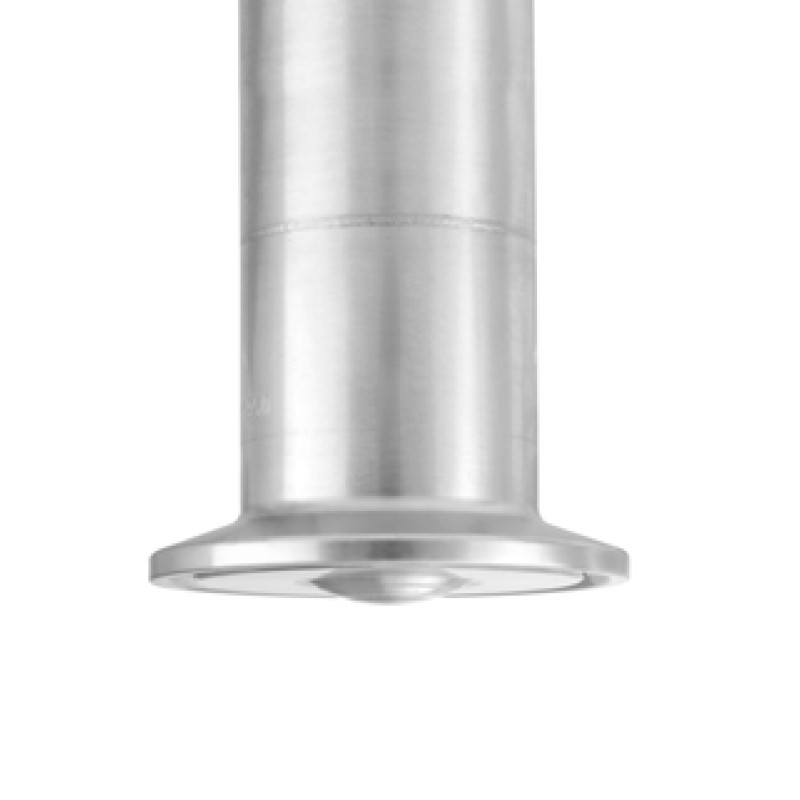

• Sensor length: Flush-mounted

• Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour

• Pressure: 0 to 25bar abs (0 to 362,5psi abs)

• Hygienic certificates

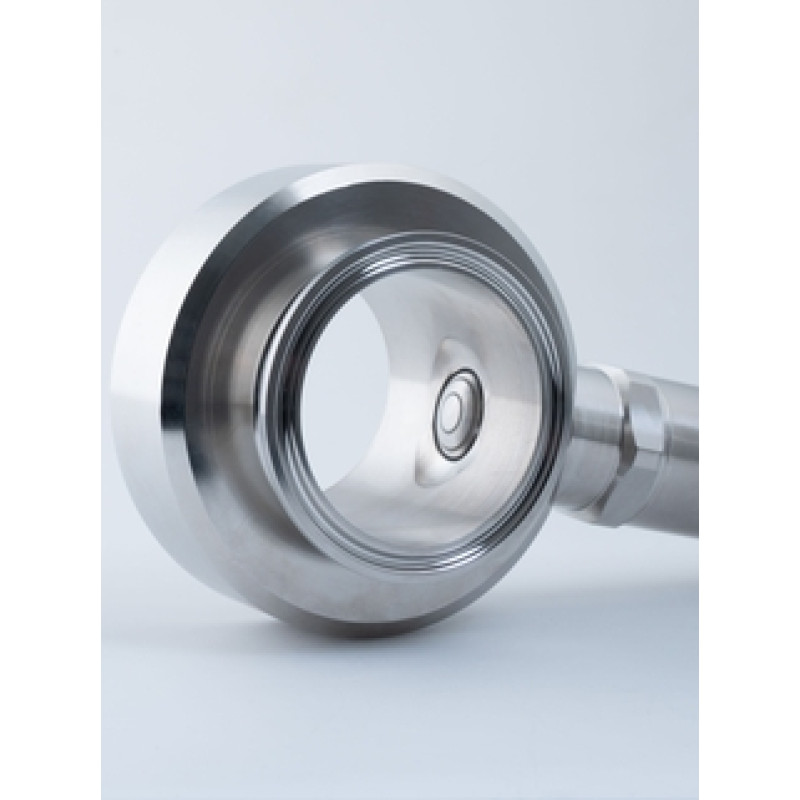

• Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes

• Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems

• Individual adjustment to each medium not necessary

• Easy installation thanks to compact design, even in tight conditions or where access is restricted

• Broad range of process connections for installation in new and existing plants

• CIP and SIP cleanability ensured - up to protection class IP 69

• LED display for on-site function check
