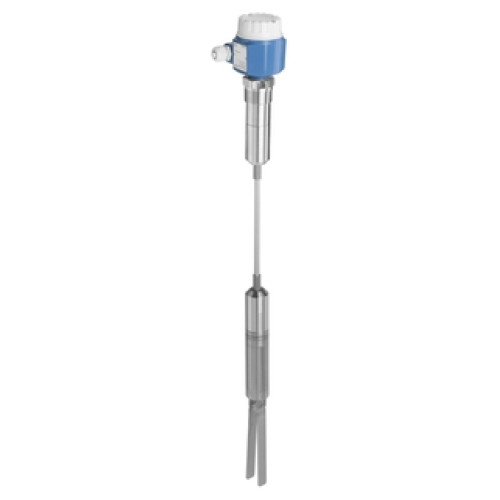

FTM52 Soliphant Vibronic Point level detection

Robust point level switch with rope extension for fine-grained bulk solids also for hazardous areas

Previous: Soliphant II FTM32, Soliphant II FTM32D, Soliphant II FTM32S, HTM10E, HTM10A, FTM32DR

• Measuring principle

  Vibration Solids

• Characteristic / Application

  Point level switch for fine grained solids and powder
  Grain size: <= 10 mm (<= 0.39 in)
  Fork sensor
  No calibration required
  Not affected by build-up or external vibration
  Robust
  Switch value visible from outside
  Rope extension

• Specialities

  Build-up and corrosion detection
  Remote version
  3 temperature versions available
  SIL 2

• Supply / Communication

  10-55V DC PNP 3-wire
  19-253V AC 2-wire
  19...253V AC / 19...55V DC 2 relay contact
  8/16mA
  NAMUR
  PFM

• Ambient temperature

  -50°C ... 70°C
  (-60°F ... 160°F)

• Process temperature

  -40°C ...80 °C
  (-40°F ... 170°F)

• Process pressure / max. overpressure limit

  Vacuum ... 2 bar
  (Vacuum ... 30 psi)
  max. 6 bar / 80 psi for EExd/EExde

• Min. density of medium

  Standard fork: 10 g/l
  Short fork: 50 g/l

• Main wetted parts

  Sensor selectable:316L 3,2um
  316L 0,8um
  316L PTFE coated (to avoid build-up)
  Rope: PUR, Silicon

• Max. tensile strength

  3000 N

• Process connection

  Thread
  R 1 1/2"
  1 1/4" NPT
  1 1/2" NPT
  EN Flange DN50...DN100
  ASME Flange 2"...4"
  JIS Flange 50A...100A

• Process connection hygienic

  Tri-Clamp ISO2852

• Sensor length

  750....20000mm
  (30...800")

• Communication

  DC PNP 2-wire
  AC Thyristor
  DPDT relay
  8/16mA
  NAMUR
  PFM

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC

• Safety approvals

  SIL

• Options

  Glass cover
  Temperature spacerEN10204-3.1

• Components

  PFM: FTL325P, FTL375P
  NAMUR: FTL325N, FTL375N

Soliphant FTM52 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Point level switch for fine grained solids and powder.

• Process connections: Threads, flanges and hygienic connection (Tri-Clamp)

• Temperature: -40 to +80°C (-40 to +170°F)

• Pressure: -1 to +2bar (-14.5 to +30psi)

• Sensor length: 750mm to 20,000mm

• Sensor material: 316L (3,2µm, 0,8µm, PTFE coated)

• International explosion protection certificates

• SIL2 in accordance with IEC 61508

• No mechanically moved parts, free of maintenance

• Measurement not affected by build-up or external vibration

• Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system

• Build-up and abrasion display selectable, density setting and switching delay selectable

• Choice of coated or polished sensor

• Build-up and corrosion detection
