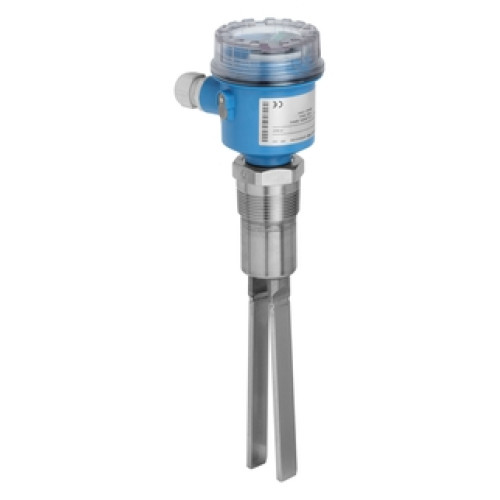

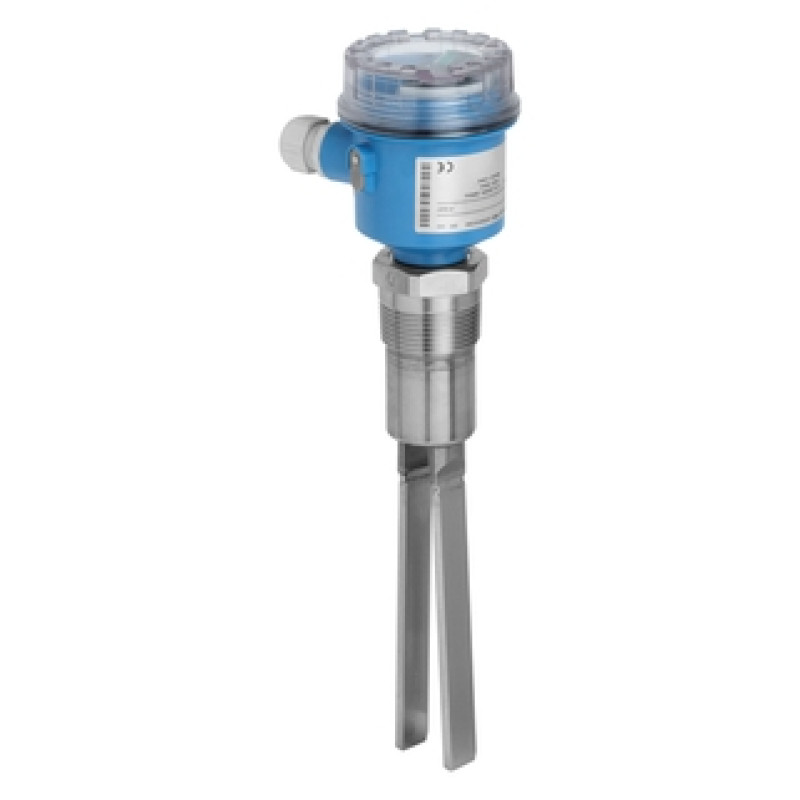

FTM50 Soliphant Vibronic Point level detection

Robust point level switch for fine-grained bulk solids also for hazardous areas

Previous: Soliphant II FTM30, Soliphant II FTM30D, Soliphant II FTM30S, HTM10E, HTM10A, FTM30DR, Soliphant T FTM260

• Measuring principle

  Vibration Solids

• Characteristic / Application

  Compact point level switch for fine grained solids and powder
  Grain size <= 10 mm (<= 0.39 in)
  Fork sensor
  No calibration required
  Not affected by build-up or external vibration
  Robust
  Switch value visible from outside

• Specialities

  Build-up and corrosion detection
  Remote version
  3 temperature versions available
  SIL 2

• Supply / Communication

  10-55V DC PNP 3-wire
  19-253V AC 2-wire
  19...253V AC / 19V...55V DC 2 relay contact
  8/16mA
  NAMUR
  PFM

• Ambient temperature

  -50°C ... 70°C
  (-60°F ... 160 °F)

• Process temperature

  -50°C ... 280°C
  (-60°F ... 540°F)

• Process pressure / max. overpressure limit

  Vacuum ... 25 bar
  (Vacuum ... 360 psi)

• Min. density of medium

  Standard fork: 10 g/l
  Short fork: 50 g/l

• Main wetted parts

  selectable:
  316L 3,2um
  316L 0,8um
  316L PTFE coated (to avoid build-up)
  316L ETFE coated (to avoid corrosion)

• Process connection

  Thread
  R 1 1/2"
  1 1/4" NPT
  1 1/2" NPT
  EN Flange DN50...DN100
  ASME Flange 2"...4"
  JIS Flange 50A...100A

• Process connection hygienic

  Tri-Clamp ISO2852

• Sensor length

  Standard: 200mm (8")
  Short: 145mm (5.7")

• Communication

  DC PNP 2-wire
  AC Thyristor
  DPDT relay
  8/16mA
  NAMUR
  PFM

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC

• Safety approvals

  SIL

• Design approvals

  EN 10204-3.1

• Options

  Glass cover
  Temperature spacer
  EN10204-3.1

• Components

  PFM: FTL325P, FTL375P
  NAMUR: FTL325N, FTL375N

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Point level switch for fine grained solids and powder.

• Process connections: Threads, flanges and hygienic connection (Tri-Clamp)

• Temperature: -50 to +280°C (-60 to +540°F)

• Pressure: -1 to +25bar (-14.5 to +360psi)

• Sensor length: 145mm, 200mm

• Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)

• International explosion protection certificates

• SIL2 in accordance with IEC 61508

• No mechanically moved parts, free of maintenance

• Measurement not affected by build-up or external vibration

• Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system

• Build-up and abrasion display selectable, density setting and switching delay selectable

• Choice of coated or polished sensor

• Build-up and corrosion detection
