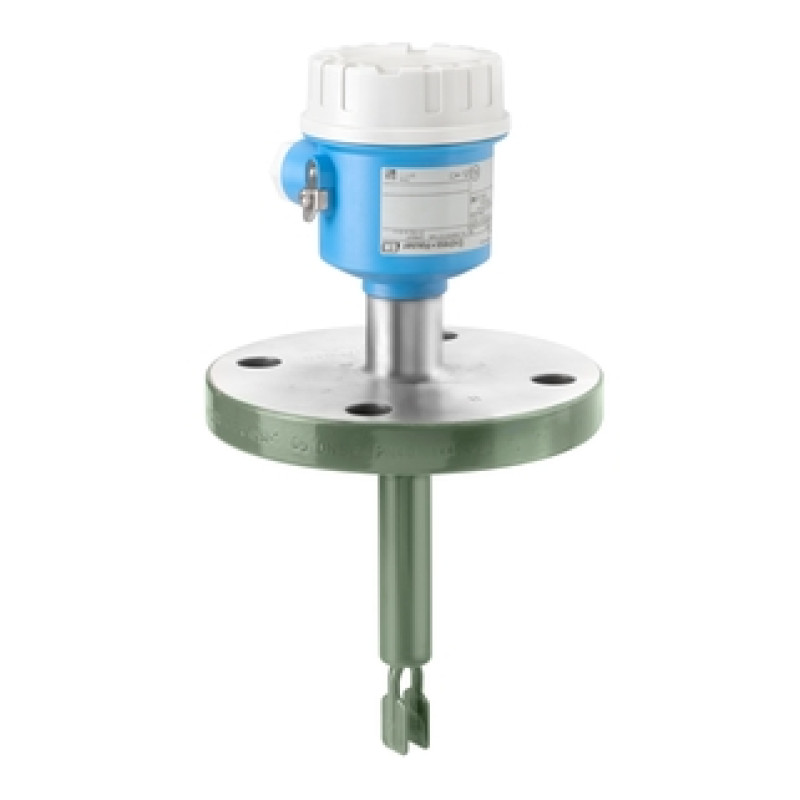

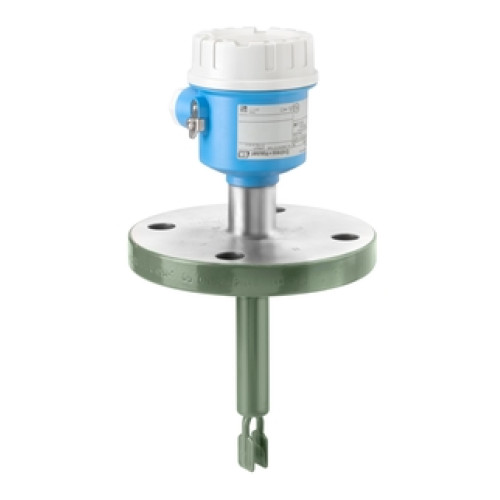

FTL85 Liquiphant Vibronic Point level detection

• Measuring principle

  Vibration Liquids

• Characteristic / Application

  Coated point level switch for MIN and MAX safety applications up to SIL3,
  Dual Sealing/ Second line of defense,
  Modular housing concept

• Specialities

  Outstanding features:
  - permanent LIVE signal monitors function safety
  - failsafe design and
  - high availability of the measuring values

• Supply / Communication

  2-wire 4...20 mA

• Ambient temperature

  -50°C...+70°C
  (-58°F...+160°F)

• Process temperature

  –50°C...+150°C
  (–58°F...+300°F)

• Process pressure / max. overpressure limit

  Vacuum...40 bar
  (580 psi)

• Min. density of medium

  Density from 0.4 g/cm3
  (0.4 SGU)

• Main wetted parts

  With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials

• Process connection

  Flange:
  DN25...DN100,
  ASME 1"...4",
  JIS 10K...20K

• Sensor length

  Extension pipe up to 3 m (9.8 ft)

• Communication

  2-wire 4...20 mA

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC

• Safety approvals

  Overfill protection WHG
  Leakage Detection
  SIL3

• Options

  AlloyC Material
  PWIS free
  Pressure tight feed through
  Weather protection

• Components

  Nivotester FTL825, Transmitter

Liquiphant FTL85 is a coated point level switch for use in hazardous areas with all international certificates. FailSafe overfill protection in applications with functional safety up to SIL3 with one device. With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Point level switch for liquids up to SIL3.

• Process connections: Threads and flanges

• Temperature: -50 to +150°C (-76 to +300°F)

• Pressure: -1 to +40bar (-14.5 to +580psi)

• Sensor length: Extension pipe up to 3m (9.8ft)

• Sensor material: Enamel, ECTFE and various PFA materials

• International explosion protection certificates, overfill protection WHG, SIL

• Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849

• Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button

• Permanent self-monitoring/internal redundancy

• 4-20mA interface (acc. to NAMUR NE 06/NE 43): easy integration via the switching unit (Nivotester FailSafe FTL825) with a two-channel output (safety contacts) and locking function or direct integration into a safety PLC

• No adjustment: quick, low-cost startup

• No mechanically moving parts: no maintenance, no wear, long operating life

• Monitoring of fork for damage, corrosion, buildup and mechanical blocking
